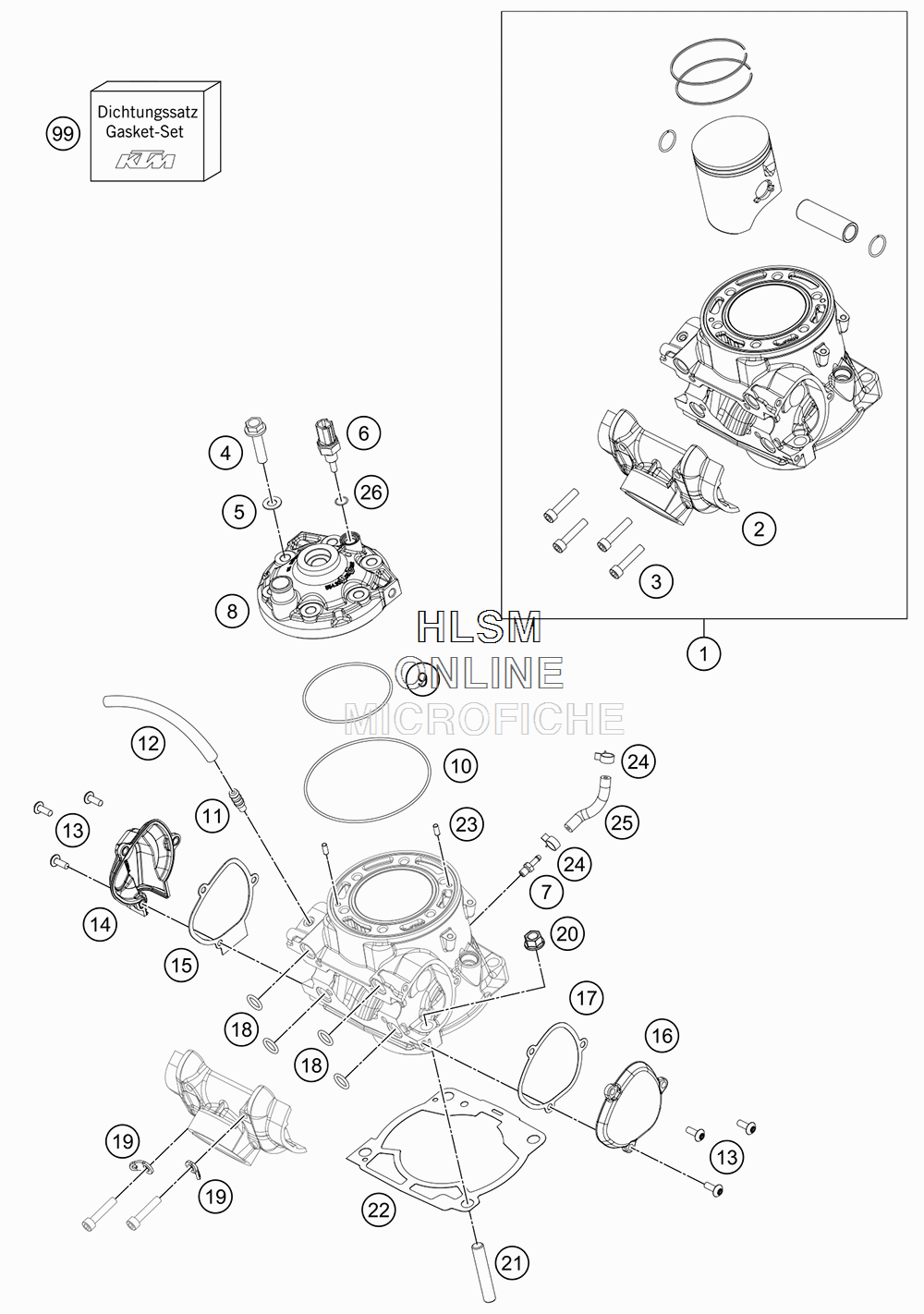

CYLINDER- CYLINDER HEAD для Ktm 300 XCW TPI - 2019 года выпуска
-
№АртикулНазвание
-
155630038100 CYLINDER + PISTON CPL. 18CYLINDER + PISTON CPL. 18
-
255437001000 CONNECTION FLANGECONNECTION FLANGE
-
30912060353 AH SCREW DIN0912-M 6X35AH SCREW DIN0912-M 6X35
-
454830079000 COLLAR SCREW M 8X35COLLAR SCREW M 8X35
-
556530080000 CU-SEAL RING 8 X 16 X 1CU-SEAL RING 8 X 16 X 1
-
679435047000 TEMPERATUR SENSOR WATERTEMPERATUR SENSOR WATER
-
755430023000 V ACUUM CONNECTIONV ACUUM CONNECTION
-
855630106100 CYLINDER HEAD KTM 300 EXCCYLINDER HEAD KTM 300 EXC
-
90770078020 O-RING 78,00X2,00 VIT. BLACKO-RING 78,00X2,00 VIT. BLACK
-
100770105020 O-RING 105,00X2,00O-RING 105,00X2,00
-
1158336020090 VACUUM CONNECTION M 6X1VACUUM CONNECTION M 6X1
-
1278015019001 HOSE EPA D=6/10 PER METERHOSE EPA D=6/10 PER METER
-
1358605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
145483700710015 EXHAUST CONTROL COVER RHEXHAUST CONTROL COVER RH
-
1554837008000 GASKET FOR CONTROL COVER R/SGASKET FOR CONTROL COVER R/S
-
165483700500015 CONTROL COVER L/SCONTROL COVER L/S
-
1754837006000 GASKET FOR CONTROL COVER L/SGASKET FOR CONTROL COVER L/S
-
180770116241 O-RING 11,3 X2,4 SILICONO-RING 11,3 X2,4 SILICON
-
1951005074000 RETAINING PLATERETAINING PLATE
-
2054630044000 COLLAR NUT M10COLLAR NUT M10
-
210835100351S STUD SCREW DIN0835-M10X35STUD SCREW DIN0835-M10X35
-
2255430030025 CYLINDER BASE GASKETCYLINDER BASE GASKET
-
2255430030020 CYLINDER BASE GASKETCYLINDER BASE GASKET
-
2255430030040 CYLINDER BASE GASKETCYLINDER BASE GASKET
-
2255430030050 CYLINDER BASE GASKETCYLINDER BASE GASKET
-
2255430030075 CYLINDER FOOT GASKETCYLINDER FOOT GASKET
-
230402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
2459007017000 CLAMP YDNAC 10096F (9,6MM)CLAMP YDNAC 10096F (9,6MM)
-
2561041095075 TUBE 3,2X9.0 L=75MMTUBE 3,2X9.0 L=75MM
-
260770100020 O-RING 10,00X2,00 SILCONEO-RING 10,00X2,00 SILCONE
-
9955430097000 GASKET SET PISTON 250/300GASKET SET PISTON 250/300
