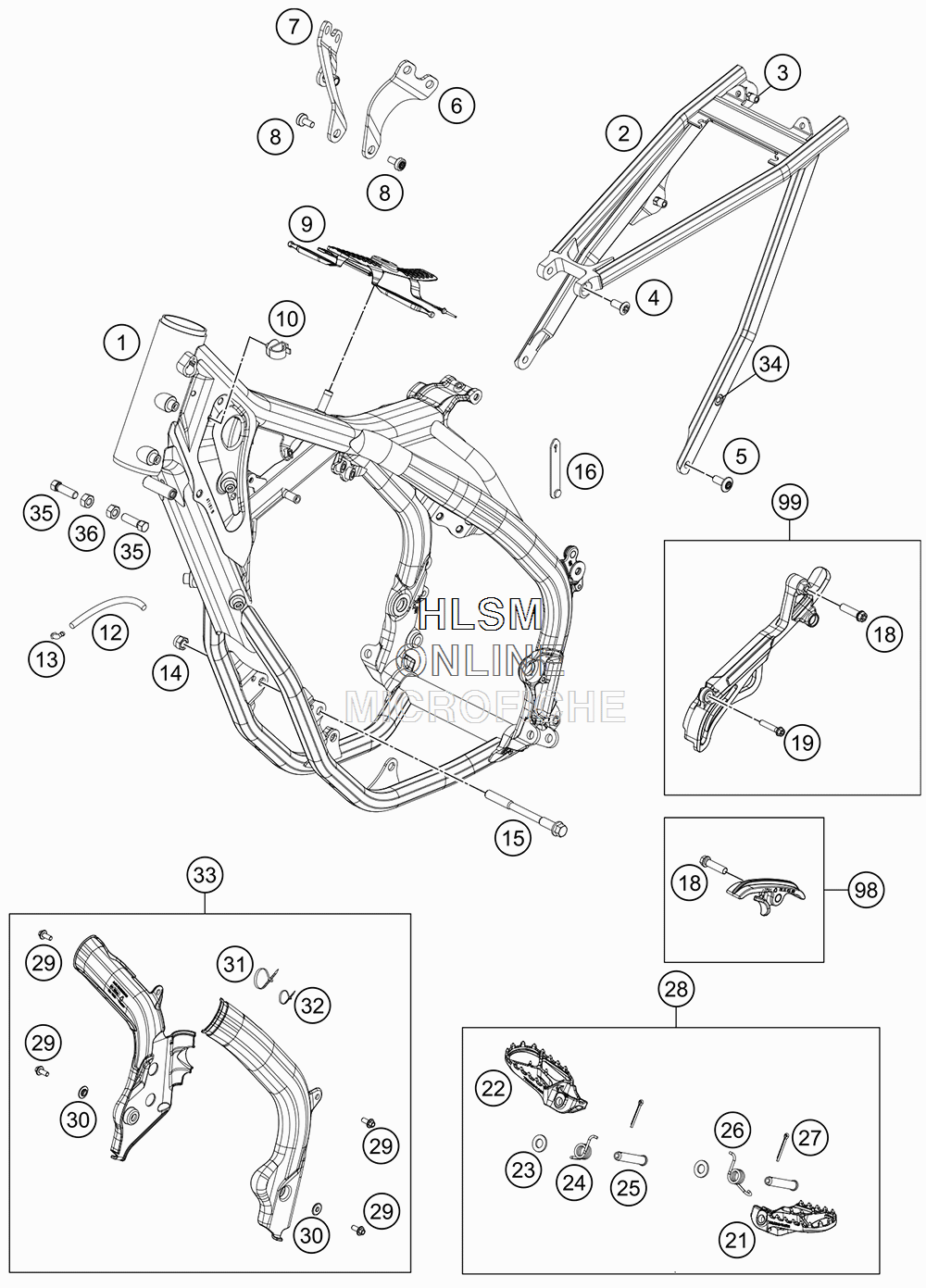

FRAME для Ktm 350 EXC-F - 2019 года выпуска
-
№АртикулНазвание
-
179003101100EB FRAME ''790Q1'' EL.ORANGEFRAME ''790Q1'' EL.ORANGE
-
279003002100 SUBFRAME 2018SUBFRAME 2018
-
377303139000 BLIND RIVET NUT EM6-60LF/HXBLIND RIVET NUT EM6-60LF/HX
-
40019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
579003003000 SPECIAL SCREW M8X18 TORX45 SSSPECIAL SCREW M8X18 TORX45 SS
-
679203113000 ENGINE BRACE LEFTENGINE BRACE LEFT
-
779203114044 ENGINE BRACE RIGHT CPL.ENGINE BRACE RIGHT CPL.
-
80035080156S AH-COLLAR SCREW M8X15 TORX45AH-COLLAR SCREW M8X15 TORX45
-
979607012000 TANK REST RUBBERTANK REST RUBBER
-
1058111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
1255007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
1350303089000 ANGLE PIECEANGLE PIECE
-
1454310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
1577203014000 ENGINE BRAC.SCR. M10X115ENGINE BRAC.SCR. M10X115
-
1660011093075 RUBBER CABLE TIE 75MMRUBBER CABLE TIE 75MM
-
180025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
190025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
2179603040000 FOOTREST L/S EXCFOOTREST L/S EXC
-
2279603041000 FOOTREST R/S EXCFOOTREST R/S EXC
-
230125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
2479003044000 FOOTREST SPRING R/SFOOTREST SPRING R/S
-
2554803044000 PIN FOR FOOT PED 51.5X9.8 MMPIN FOR FOOT PED 51.5X9.8 MM
-
2679003045000 FOOTREST SPRING L/SFOOTREST SPRING L/S
-
270094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
2879603040033 FOOTREST-SETFOOTREST-SET
-
290014050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
3054803092060 BUSH F. FRAME PROTECTIONBUSH F. FRAME PROTECTION
-
3144011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
3244011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
3379003094000EB FRAME PROTECTION SET ORANGEFRAME PROTECTION SET ORANGE
-
3479003002080 BLIND RIVET NUT M6 KNURLEDBLIND RIVET NUT M6 KNURLED
-
3559001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
360934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
9879003053010 CHAIN SLIDING KIT BELOW CPL.16CHAIN SLIDING KIT BELOW CPL.16
-
9979003096010 SPROCKET COVER KITSPROCKET COVER KIT
