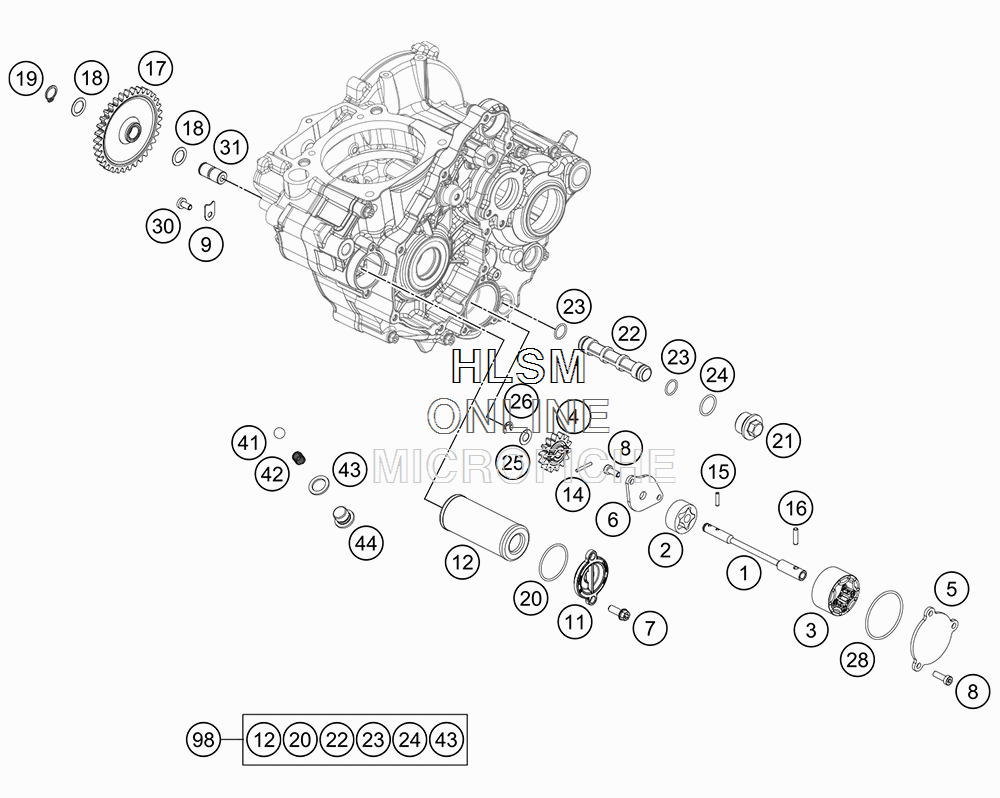

LUBRICATING SYSTEM для Ktm 350 SX-F - 2019 года выпуска
-
№АртикулНазвание
-
179238002100 OIL PUMP SHAFTOIL PUMP SHAFT
-
259038011112 OILPUMP ROTOR-SET 12MM CPL.OILPUMP ROTOR-SET 12MM CPL.
-
361238111000 ROTOR-SET CPL. 22MMROTOR-SET CPL. 22MM
-
477038001100 OIL PUMP GEAR 14TOIL PUMP GEAR 14T
-
579238004000 OIL PUMP COVER LEFTOIL PUMP COVER LEFT
-
679238003000 OIL PUMP COVER RIGHTOIL PUMP COVER RIGHT
-
70025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
80984050143S CYL. SCREW DIN6912 M5X14 8.8CYL. SCREW DIN6912 M5X14 8.8
-
977238061050 AXIAL-CIRCLIPAXIAL-CIRCLIP
-
1177338041200 OIL FILTER COVEROIL FILTER COVER
-
1277338005100 OIL FILTEROIL FILTER
-
140402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8NEEDLEROL.DIN5402 NRA 2,5X19,8
-
150402251180 NEEDLE ROLLER DIN5402 2,5X11,8NEEDLE ROLLER DIN5402 2,5X11,8
-
160402041580 NEEDLE ROLLER NRB 4X15,8 G2NEEDLE ROLLER NRB 4X15,8 G2
-
1779238006000 OILPUMP IDLER GEAROILPUMP IDLER GEAR
-
180988121805 SHIM WASHER DIN0988-12X18X0,50SHIM WASHER DIN0988-12X18X0,50
-
190471120010 CIRCLIP DIN0471-12X1CIRCLIP DIN0471-12X1
-
2007703305178 O-RING 33,05X1,78O-RING 33,05X1,78
-
2159038017100 PLUG M20X1,5 WS=13PLUG M20X1,5 WS=13
-
2259038016100 OIL SCREENOIL SCREEN
-
2307701250151 O-RING 12,5X1,5 VITON V75O-RING 12,5X1,5 VITON V75
-
240770020170 O-RING 17,17X1,78 GLOO-RING 17,17X1,78 GLO
-
2558038007755 STOP DISK 8,1 X 15 X 0,5STOP DISK 8,1 X 15 X 0,5
-
260799060000 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
280770440020 O-RING 44,00X2,00 VITONO-RING 44,00X2,00 VITON
-
300018050103 INT. TORX OVAL HEAD M 5X10 8.8INT. TORX OVAL HEAD M 5X10 8.8
-
3177038013100 BUSHING PINBUSHING PIN
-
410401090003 BALL DIN5401-9BALL DIN5401-9
-
4258038023300 PRESSURE SPRING L=25MM D=1MMPRESSURE SPRING L=25MM D=1MM
-
4358038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
4478036024000 PLUG SCREW SAS M12X1,5PLUG SCREW SAS M12X1,5
-
9800050000083 OILFILTER-GASKET SETOILFILTER-GASKET SET
