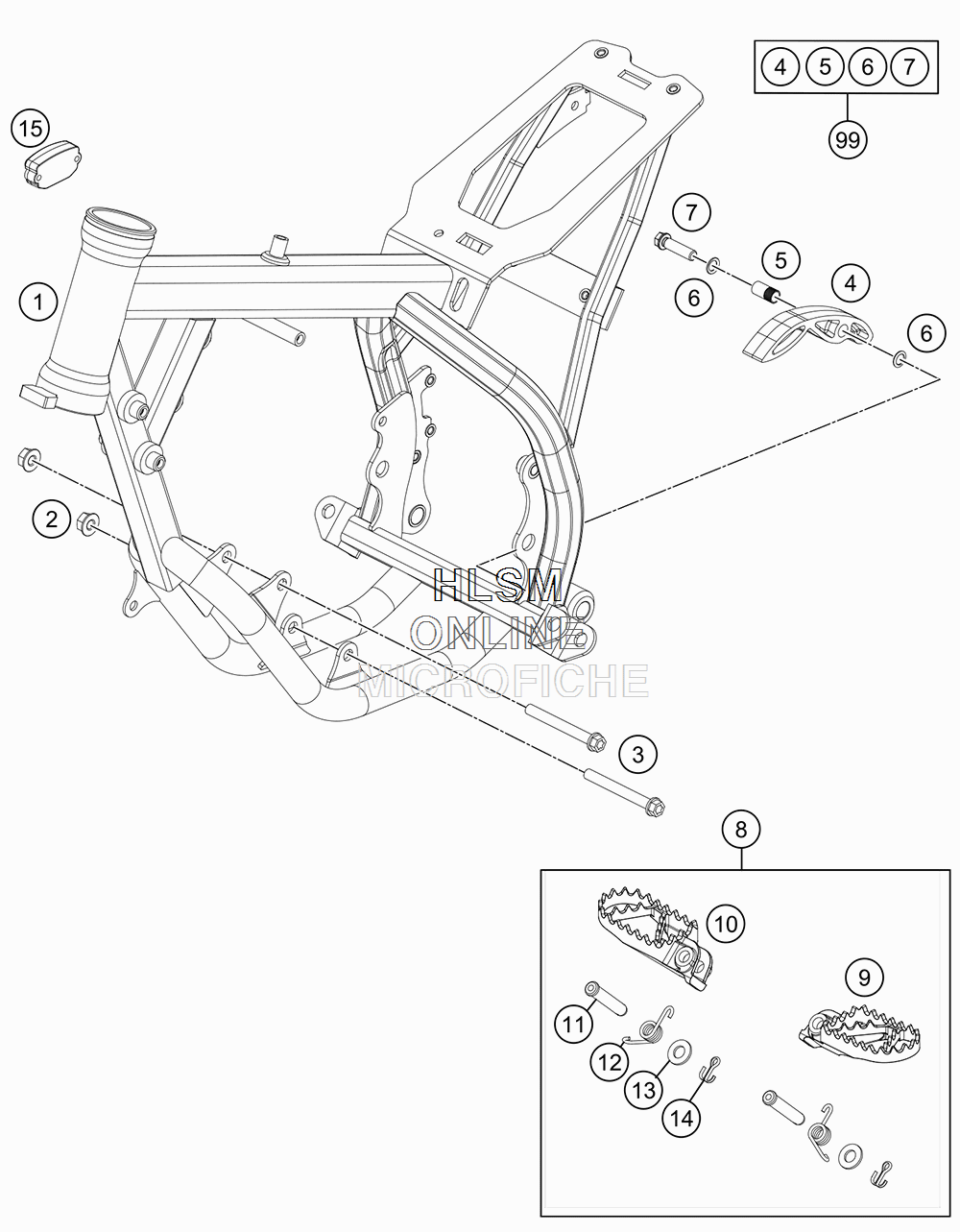

FRAME для Ktm 50 SX MINI - 2019 года выпуска
-
№АртикулНазвание
-
145303001300EB FRAME "453S5" ELEC.ORANGEFRAME "453S5" ELEC.ORANGE
-
254310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
30025080656 HH COLLAR SCREW M8X65HH COLLAR SCREW M8X65
-
451103053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
551103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
-
636003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
70025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
847103040033 FOOTREST CPL.FOOTREST CPL.
-
947103040000 FOOTREST L/SFOOTREST L/S
-
1047103041000 FOOTREST R/SFOOTREST R/S
-
1154803044000 PIN FOR FOOT PED 51.5X9.8 MMPIN FOR FOOT PED 51.5X9.8 MM
-
120125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
1354603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
140094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
1578112920000 HOUR METER KTMHOUR METER KTM
-
9951103053110 CHAIN SLIDING KIT BELOW MINICHAIN SLIDING KIT BELOW MINI
