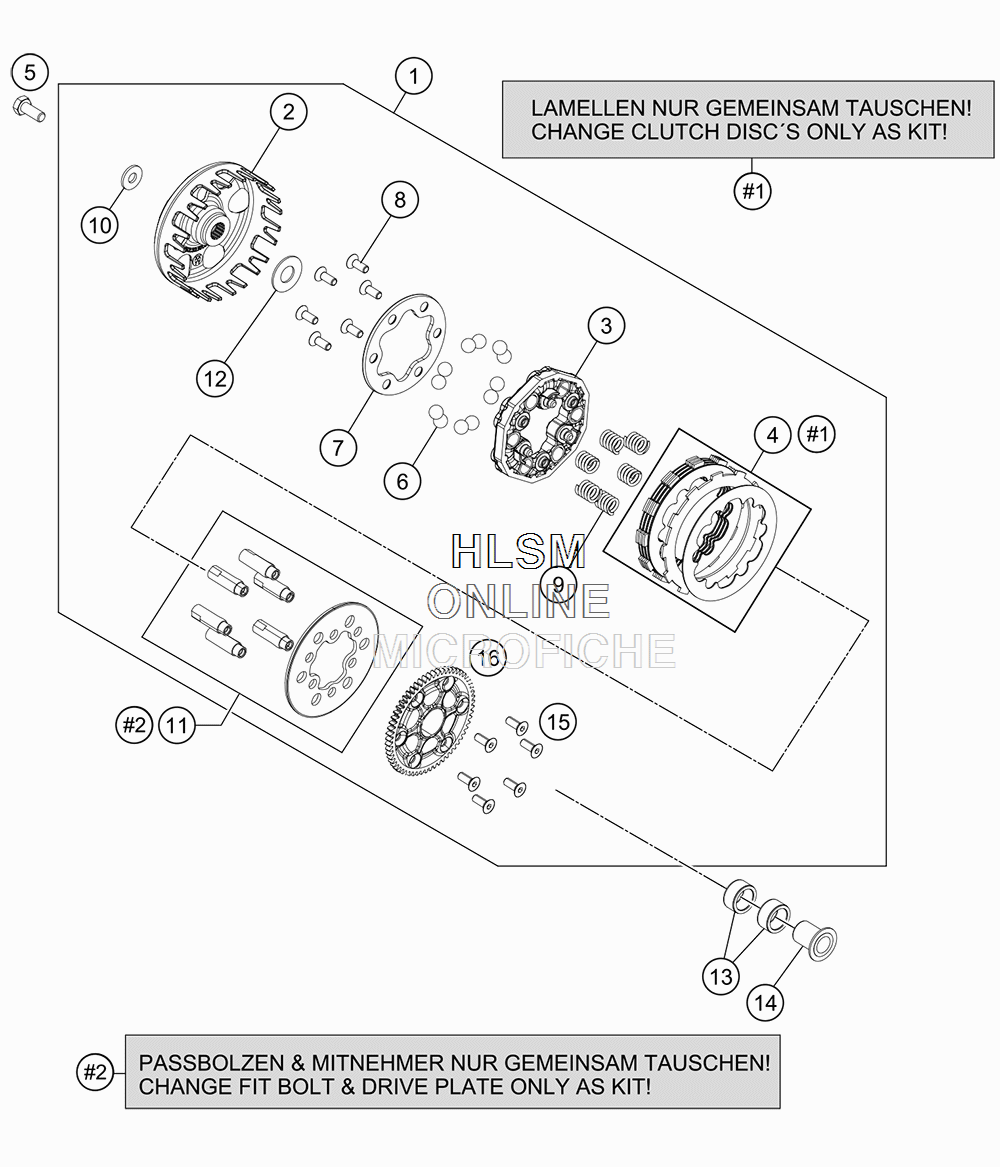

CLUTCH для Ktm 50 SX - 2019 года выпуска
-
№АртикулНазвание
-
145232100144 AXIAL CLUTCH ASSEMBLYAXIAL CLUTCH ASSEMBLY
-
245232101000 CLUTCH BASKETCLUTCH BASKET
-
345232139044 BALL CAGE ASSEMBLYBALL CAGE ASSEMBLY
-
445232110033 CLUTCH DISC KITCLUTCH DISC KIT
-
50035080206S AH-COLLAR SCREW M8X20 ISA45AH-COLLAR SCREW M8X20 ISA45
-
60401110000 BALL D=11MMBALL D=11MM
-
745232103000 PRESSURE PLATEPRESSURE PLATE
-
80991060166S FL.HEAD SCR.DIN7991-M6X16 10.9FL.HEAD SCR.DIN7991-M6X16 10.9
-
945232105000 CLUTCH SPRING 15,9MMCLUTCH SPRING 15,9MM
-
945232105100 CLUTCH SPRINGS 15.9MM HARDCLUTCH SPRINGS 15.9MM HARD
-
100340084234 WASHER DIN 6340 8,4X23X4WASHER DIN 6340 8,4X23X4
-
1145232107244 FIT BOLT WITH DRIVE PLATEFIT BOLT WITH DRIVE PLATE
-
1275034050000 STOP DISK 14X30X1,5 STEELSTOP DISK 14X30X1,5 STEEL
-
130402182412 NEEDLE BEARING 18X24X12ANEEDLE BEARING 18X24X12A
-
1445232013000 INNER RING WITH COLLARINNER RING WITH COLLAR
-
1509910601661S FL.HEAD SCR.DIN7991-M6X16 10.9FL.HEAD SCR.DIN7991-M6X16 10.9
-
1645232124061 PRIMARY GEAR 61TPRIMARY GEAR 61T
