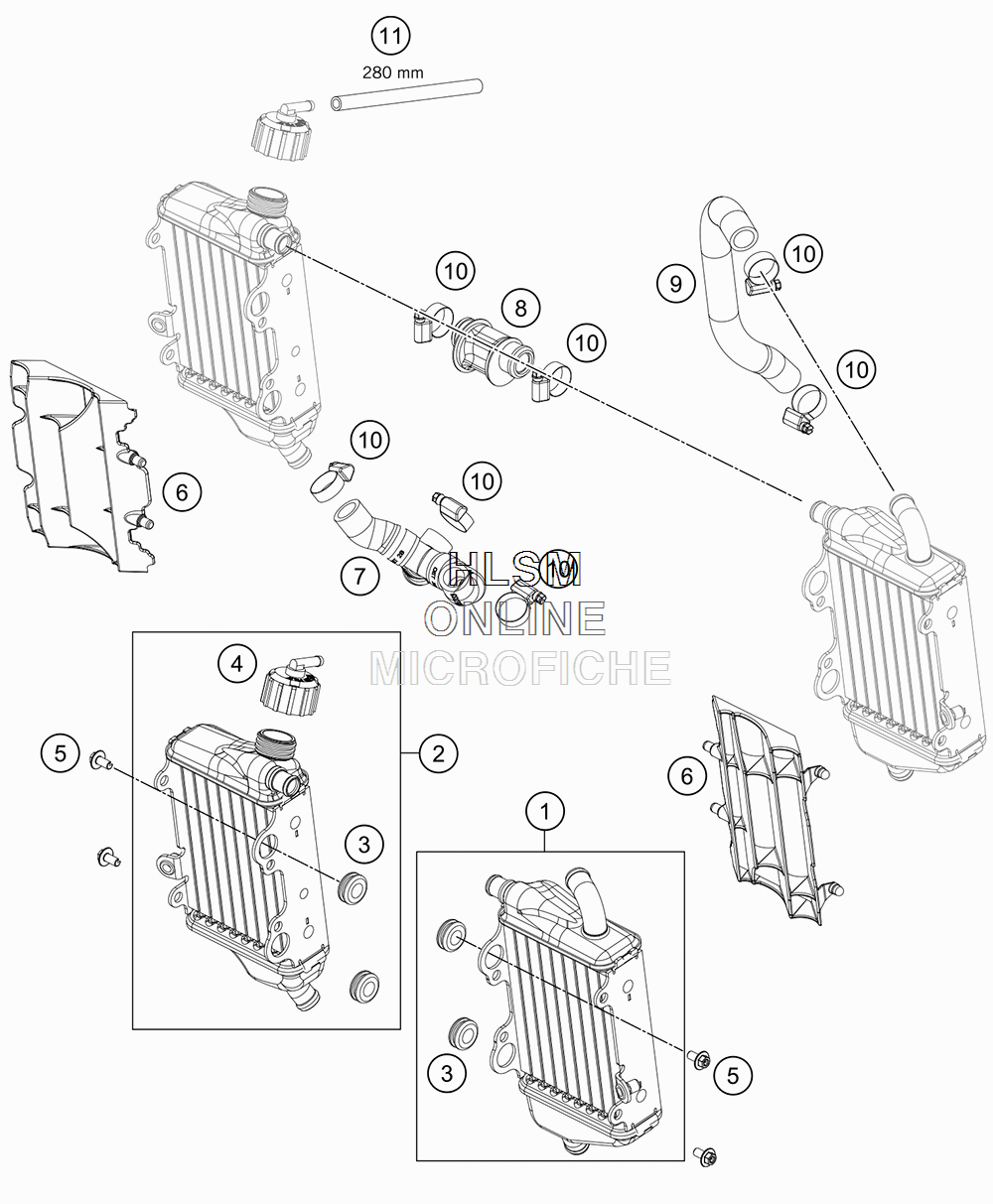

COOLING SYSTEM для Ktm 65 SX MINI - 2019 года выпуска
-
№АртикулНазвание
-
146335007000 RADIATOR LEFT "65072U"RADIATOR LEFT "65072U"
-
246335008000 RADIATOR RIGHT "65071U"RADIATOR RIGHT "65071U"
-
341001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
445135009000 RADIATOR CAP 50 LC 1,0 BARRADIATOR CAP 50 LC 1,0 BAR
-
50024060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
-
646235034000 RADIATOR PROTECTORRADIATOR PROTECTOR
-
746335025033 RADIATOR HOSE CPL.RADIATOR HOSE CPL.
-
846235025000 RADIATOR CONNECTOR TOPRADIATOR CONNECTOR TOP
-
946235022000 PREFORMED HOSE RAD.L/SPREFORMED HOSE RAD.L/S
-
1042013037400 HOSE CLAMP NORMA 14/24HOSE CLAMP NORMA 14/24
-
1155007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
