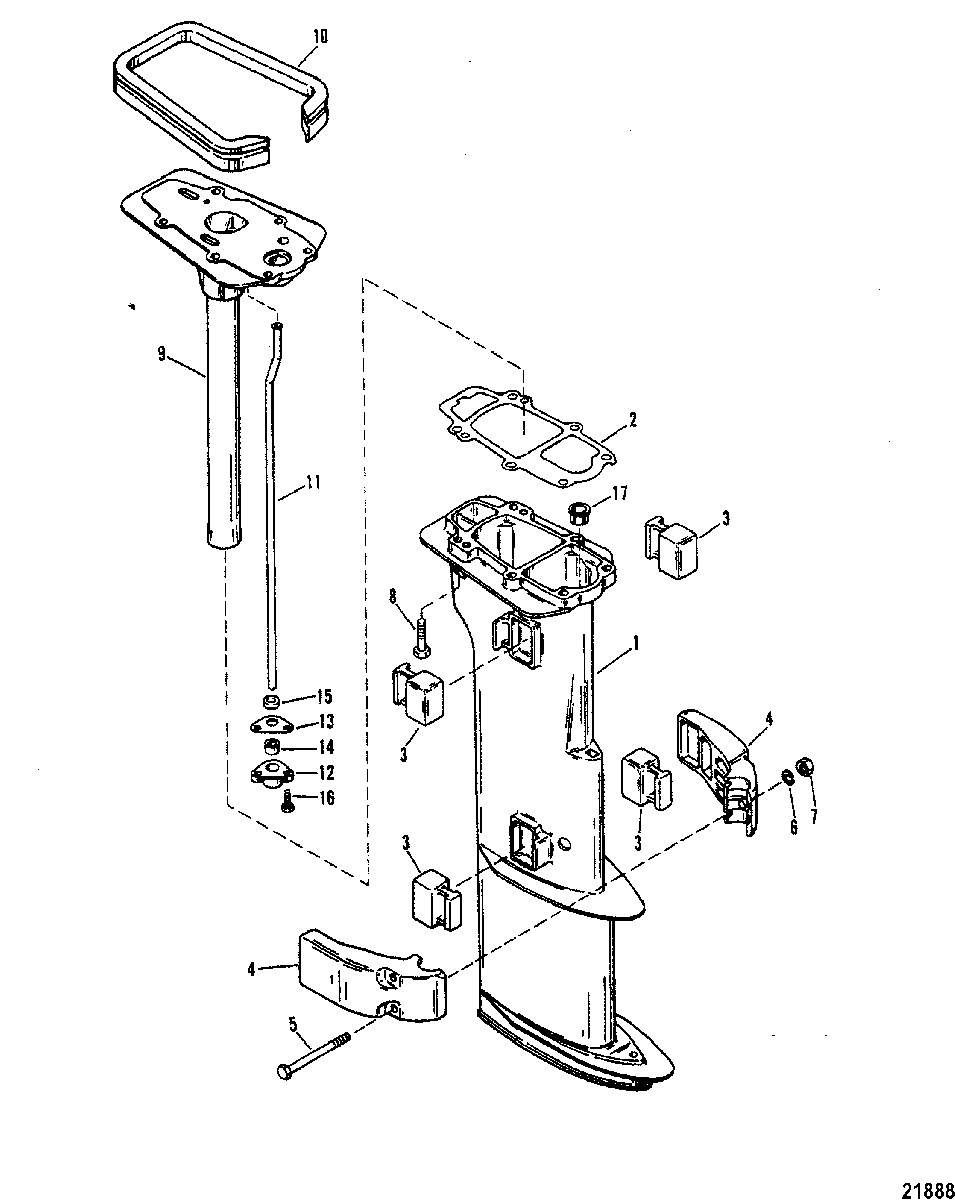

Driveshaft Housing для Mariner - 10 MARATHON 0D038000 THRU 0D279999
-
№АртикулНазвание
-
11596-822154A1 HOUSING ASSEMBLY (SHORT) BLACKHOUSING ASSEMBLY (SHORT) BLACK
-
11597-822155A1 HOUSING ASSEMBLY (LONG) BLACKHOUSING ASSEMBLY (LONG) BLACK
-
11596-822154A2 HOUSING ASSEMBLY (SHORT) GRAYHOUSING ASSEMBLY (SHORT) GRAY
-
11597-822155A2 HOUSING ASSEMBLY (LONG) GRAYHOUSING ASSEMBLY (LONG) GRAY
-
227-195992 GASKET, Driveshaft HousingGASKET, Driveshaft Housing
-
38M0039074 MOUNTMOUNT
-
442374F6 COVER, Mount
(Black)COVER, Mount
(Black) -
442374F6 COVER, Mount
(Gray)COVER, Mount
(Gray) -
510-4009238 SCREW, (M6 x 80), MOUNT COVERSCREW, (M6 x 80), MOUNT COVER
-
613-400256 LOCKWASHER, (M6), COVER SCREWLOCKWASHER, (M6), COVER SCREW
-
711-400212 NUT, (M6) Stainless Steel, COVER SCREWNUT, (M6) Stainless Steel, COVER SCREW
-
810-40011131 SCREW, (M6 x 35) Stainless Steel, DRIVE SHAFT HOUSING TO PLATESCREW, (M6 x 35) Stainless Steel, DRIVE SHAFT HOUSING TO PLATE
-
9413448 ADAPTOR PLATE (NO TUBE)
(XR10/MAGNUM 10)ADAPTOR PLATE (NO TUBE)
(XR10/MAGNUM 10) -
941344A3 ADAPTOR PLATE ASSEMBLY (1-1/8"I.D.TUBE)
(SEA PRO 10/MARATHON 10)ADAPTOR PLATE ASSEMBLY (1-1/8"I.D.TUBE)
(SEA PRO 10/MARATHON 10) -
1026-11287001 SEAL, Adapter PlateSEAL, Adapter Plate
-
1132-42123 TUBE, Water (SHORT)TUBE, Water (SHORT)
-
1132-42122 TUBE, Water (LONG)TUBE, Water (LONG)
-
1242371 HOLDER, WATER TUBEHOLDER, WATER TUBE
-
1327-192012 GASKETGASKET
-
1426-42380001 SEALSEAL
-
1523-42465 SPACER, WATER TUBESPACER, WATER TUBE
-
1610-400035 SCREW, (M5 x 16), HOUSING TO ADAPTOR PLATESCREW, (M5 x 16), HOUSING TO ADAPTOR PLATE
-
17445551 BLOCK, Bearing (LONG)BLOCK, Bearing (LONG)
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
