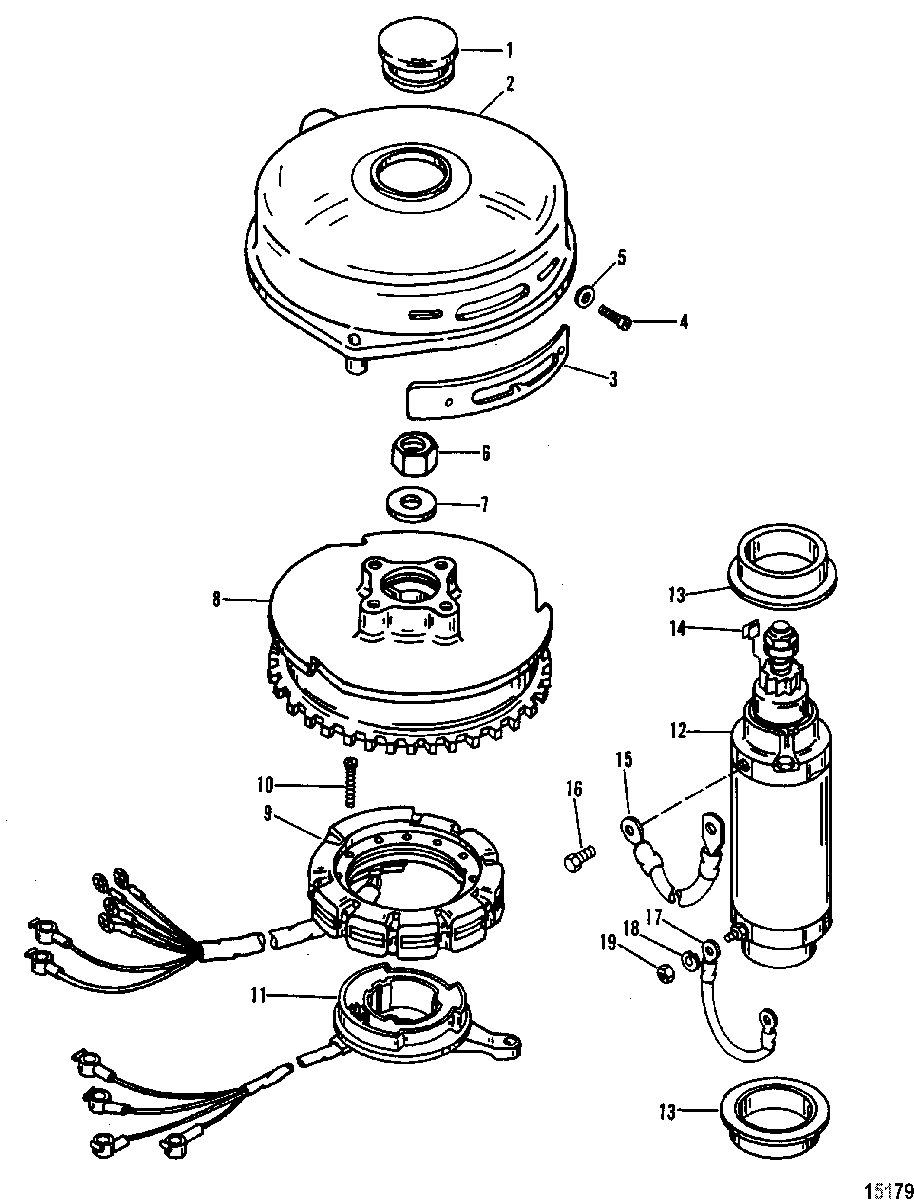

Flywheel And Starter Motor для Mariner - 100 (4 CYL.) 0A722297 THRU 0D283221
-
№АртикулНазвание
-
119-45907 PLUG, YellowPLUG, Yellow
-
242956A1 COVER ASSEMBLYCOVER ASSEMBLY
-
379022 MARKERMARKER
-
410-37572 SCREW, (.190-32 x .380)SCREW, (.190-32 x .380)
-
512-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
611-42979 NUT, (M16)NUT, (M16)
-
712-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
8261-859236T12 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
9398-8778A23 STATOR
(Stamped 398-8778A17 Or 398-8778A22)STATOR
(Stamped 398-8778A17 Or 398-8778A22) -
9398-9710A45 STATORS
(Stamped 398-9710A15 Or 398-9710A31)STATORS
(Stamped 398-9710A15 Or 398-9710A31) -
1010-4007325 SCREW, (M5 x 25)SCREW, (M5 x 25)
-
1199021A6 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
1250-893892T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1323-8M0034918 COLLARCOLLAR
-
148M0043376 STOPSTOP
-
1584-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
1610-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
1784-93388A6 WIRE, BlackWIRE, Black
-
1813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1911-64015 NUT, (.250-20)NUT, (.250-20)
