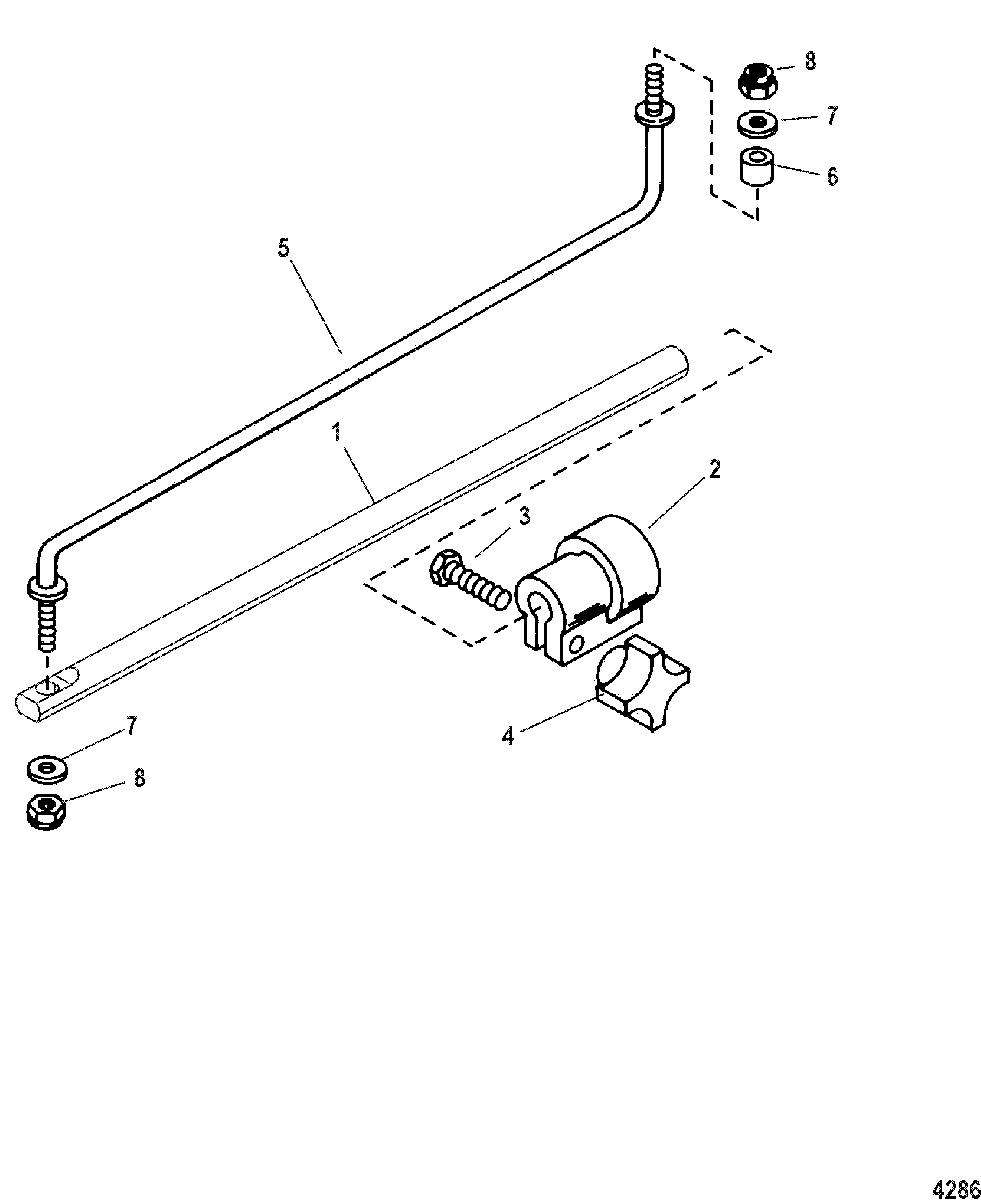

Co-Pilot для Mariner - 100 (4 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
-56-52148A7 CO-PILOT ASSEMBLYCO-PILOT ASSEMBLY
-
1521481 PILOT RODPILOT ROD
-
211-8M0103848 NUT ASSEMBLYNUT ASSEMBLY
-
310-56500 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
412-77674 WASHERWASHER
-
5821621 KNOB, ProngKNOB, Prong
-
6873491 RODROD
-
723-521512 BUSHINGBUSHING
-
812-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
911-826709111 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
Все узлы модели:
- ACCESSORIES
- ATTENUATOR PLATE
- BLEED SYSTEM , S/#-USA-0G301751/BEL-9885505 AND UP
- BOTTOM COWL
- CARBURETOR, WME-32/32A/33/34/40/40A
- CARBURETOR, WME-50/51/52/79/80/81
- • Co-Pilot
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE
- DRIVESHAFT HOUSING
- ELECTRICAL COMPONENTS, USA-0G437999/BEL-9926999 AND BELOW
- ELECTRICAL COMPONENTS, USA-0G438000/BEL-9937000 AND UP
- EXHAUST PLATE
- FLYWHEEL/ STARTER MOTOR, USA-0G438000/BEL-9927000 AND UP
- FLYWHEEL/STARTER MOTOR, USA:0G437999/BEL:9926999 AND BELOW
- FUEL PUMP
- GEAR HOUSING CHART(2.07:1/2.31:1 GEAR RATIO)
- GEAR HOUSING(DRIVESHAFT)(3 JAW REVERSE CLUTCH)
- GEAR HOUSING(DRIVESHAFT)(6 JAW REVERSE CLUTCH)
- GEAR HOUSING(PROP SHAFT)(3 JAW REVERSE CLUTCH)
- GEAR HOUSING(PROP SHAFT)(6 JAW REVERSE CLUTCH)
- INDUCTION MANIFOLD AND REED BLOCK
- JET PUMP ASSEMBLY
- JET PUMP COMPONENTS
- Key Chart
- OIL INJECTION(USA-0G301751/BEL-9885505 AND UP)
- OIL INJECTION(USA:0G301750/BEL:9885504 AND BELOW)
- POWER TRIM(BLACK FILL PLUG)(G359967/9934136 AND BELOW
- POWER TRIM(YELLOW FILL PLUG)(G359968/9934137 AND UP
- Service/Support Material
- STARTER MOTOR
- STEERING HANDLE COMPONENTS
- STEERING HANDLE COMPONENTS
- SWIVEL BRACKET AND STEERING ARM
- THROTTLE LEVER AND LINKAGE
- TILLER HANDLE ADAPTOR KIT(JET 80)
- TOOLS, SPECIAL
- TOOLS, SPECIAL
- TOP COWL(S/N-USA-0G301750/ BEL-9885504 AND BELOW)
- TOP COWL(S/N-USA-0G301751/BEL-9885505 AND UP)
- TRANSOM BRACKET(S/N-USA-0G589999/BEL-9973099 AND BELOW)
- TRANSOM BRACKET(S/N-USA-0G590000/BEL-9973100 AND UP)
