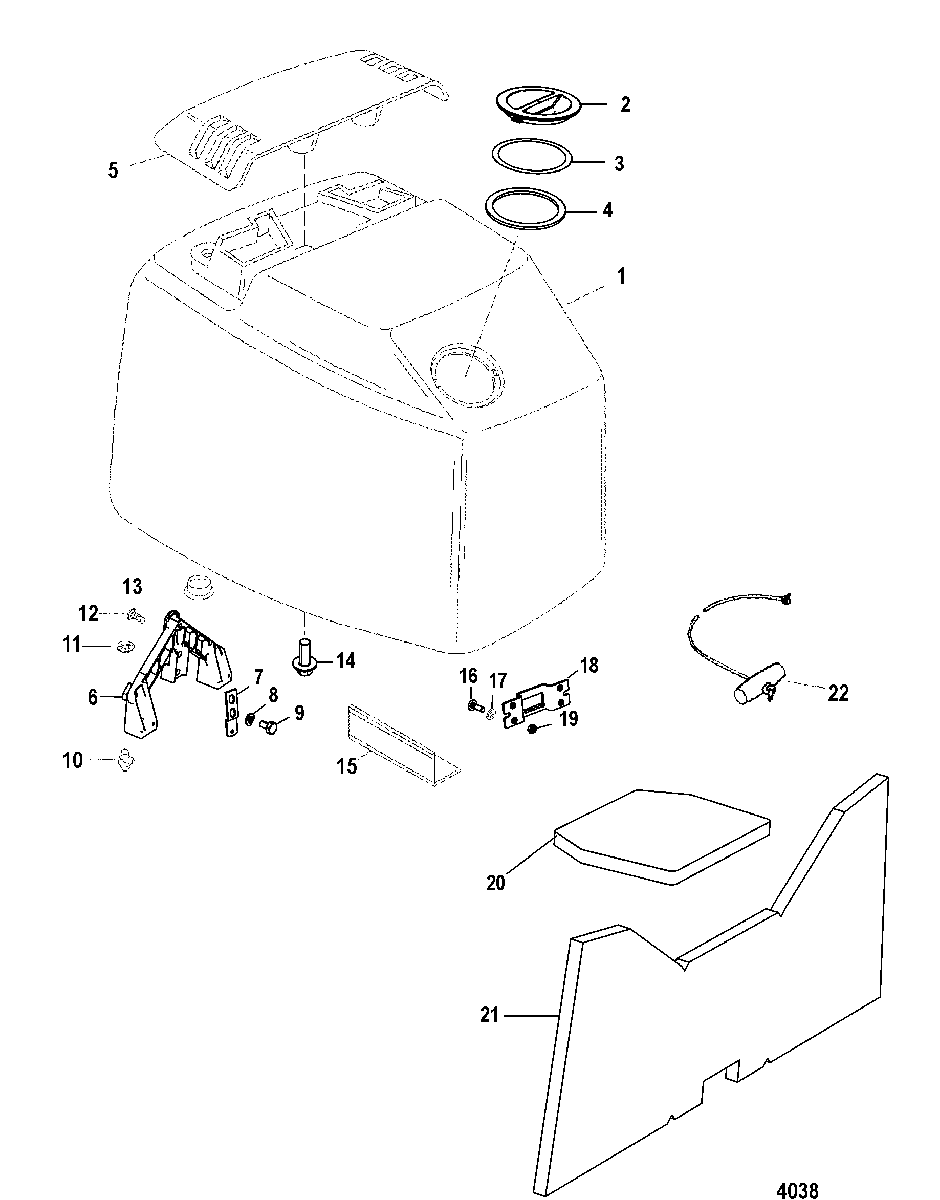

Top Cowl для Mariner - 100 (4 CYL.) 0G760300 THRU 0G965520
-
№АртикулНазвание
-
14026-828354T8 TOP COWL ASSEMBLY, BlackTOP COWL ASSEMBLY, Black
-
14026-828354T9 TOP COWL ASSEMBLY, SilverTOP COWL ASSEMBLY, Silver
-
14026-828354A10 TOP COWL ASSEMBLY, Silver Cowl And Black CapTOP COWL ASSEMBLY, Silver Cowl And Black Cap
-
2828716A2 CAPCAP
-
3828352 SEALSEAL
-
48283511 SEALSEAL
-
58218751 CAP, UpperCAP, Upper
-
58218751 CAP, UpperCAP, Upper
-
6819813T1 BRACKET, Cover LatchBRACKET, Cover Latch
-
7893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
813-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
910-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
10F481434 GUIDE, Cowl Latch BracketGUIDE, Cowl Latch Bracket
-
1111-91925 PUSH NUTPUSH NUT
-
1210-822512 SCREW, (.250-20 x 1.00)SCREW, (.250-20 x 1.00)
-
1319-823865 CAP PLUGCAP PLUG
-
1410-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
15823830 SUPPORTSUPPORT
-
1610-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
188233941 BRACKETBRACKET
-
1911-8237515 NUT, (M4)NUT, (M4)
-
20823583A02 SOUND BLANKET KITSOUND BLANKET KIT
-
21NSS NOT SOLD SEPARATE, Sound BlanketNOT SOLD SEPARATE, Sound Blanket
-
2247341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
