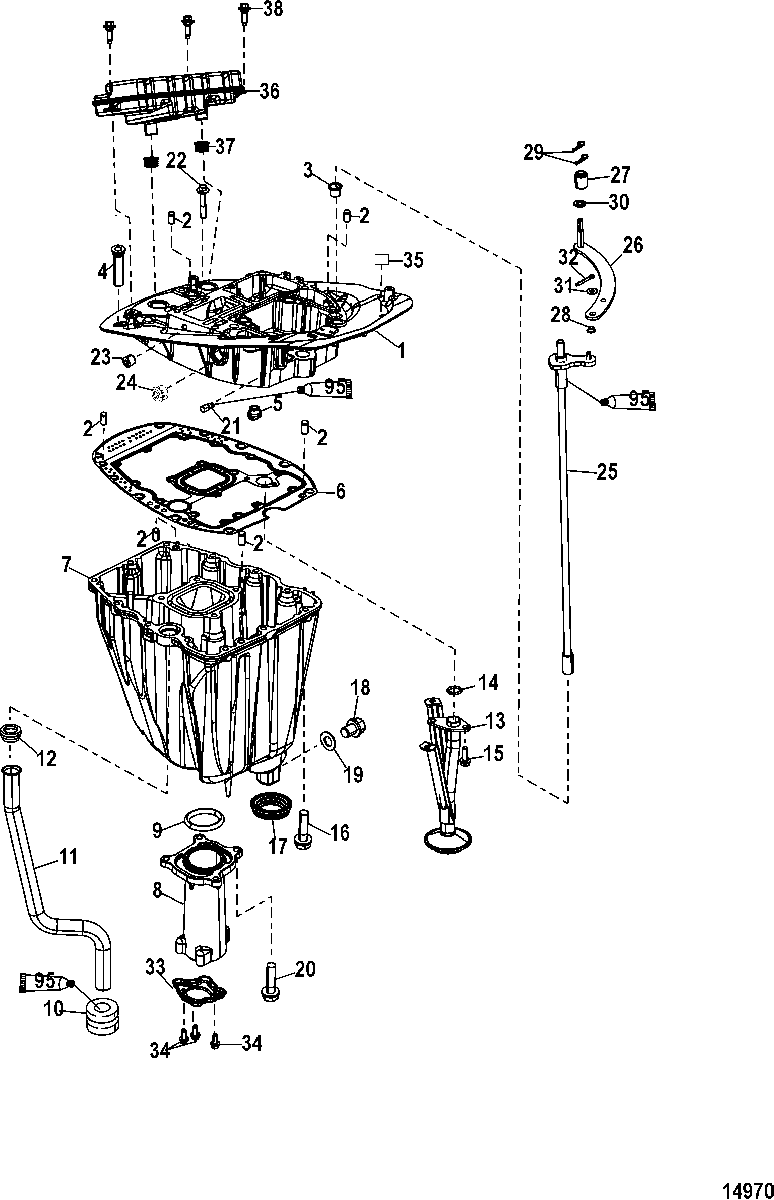

Adaptor Plate для Mariner - 100 EFI (4-STROKE) 0P459572 THRU 2B094995
-
№АртикулНазвание
-
1881912T02 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
217-23784 PIN, DowelPIN, Dowel
-
323-27132 BUSHINGBUSHING
-
421-817519A2 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
525-19565002 GROMMETGROMMET
-
68M0005405 GASKET, Adaptor PlateGASKET, Adaptor Plate
-
7858572T01 SUMP, OilSUMP, Oil
-
8898468A01 TUBE KIT, ExhaustTUBE KIT, Exhaust
-
925-881295 O-RINGO-RING
-
1025-89417004 GROMMETGROMMET
-
1132-8M0026130 TUBE, Water
Long SN# 1B501293 & BelowTUBE, Water
Long SN# 1B501293 & Below -
1132-8M0026130 TUBE, Water
Long SN# 1B501294 & UpTUBE, Water
Long SN# 1B501294 & Up -
1132-8M0026129 TUBE, Water
X-Long SN# 1B501293 & BelowTUBE, Water
X-Long SN# 1B501293 & Below -
1132-8M0026129 TUBE, Water
X-Long SN# 1B501294 & UpTUBE, Water
X-Long SN# 1B501294 & Up -
12814080001 SEAL, UpperSEAL, Upper
-
13858571T TUBE, Oil Pick UpTUBE, Oil Pick Up
-
1425-859082 O-RINGO-RING
-
1510-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1610-8248327 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
178M0039073 SEALSEAL
-
188288181 PLUG, DrainPLUG, Drain
-
1927-828816 GASKETGASKET
-
2010-82483213 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
21888823001 SHIFT DETENT ASSEMBLYSHIFT DETENT ASSEMBLY
-
2210-898442 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
2322-479452 PLUGPLUG
-
2419-8M0048148 PLUGPLUG
-
25888835A1 SHIFT SHAFTSHIFT SHAFT
-
26888840 SHIFT LINKSHIFT LINK
-
27888917 ROLLERROLLER
-
2823-891658 BUSHINGBUSHING
-
2918-82053M PIN, HairPIN, Hair
-
3012-888832 WASHERWASHER
-
3112-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
3218-26953 COTTER PINCOTTER PIN
-
33898844 SEAL, Exhaust Tube, Included with Exhaust TubeSEAL, Exhaust Tube, Included with Exhaust Tube
-
3410-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
3519-48323 PLUGPLUG
-
36898103T91 PLENUM, ExhaustPLENUM, Exhaust
-
378M0001457 SEAL, PlenumSEAL, Plenum
-
3810-892073002 SHOULDER SCREW, (M6)SHOULDER SCREW, (M6)
-
-27-897534A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-8M8033014 LONG BLOCK ASSEMBLY, 75/80/90/100LONG BLOCK ASSEMBLY, 75/80/90/100
-
-8M8033013 LONG BLOCK ASSEMBLY, 115LONG BLOCK ASSEMBLY, 115
