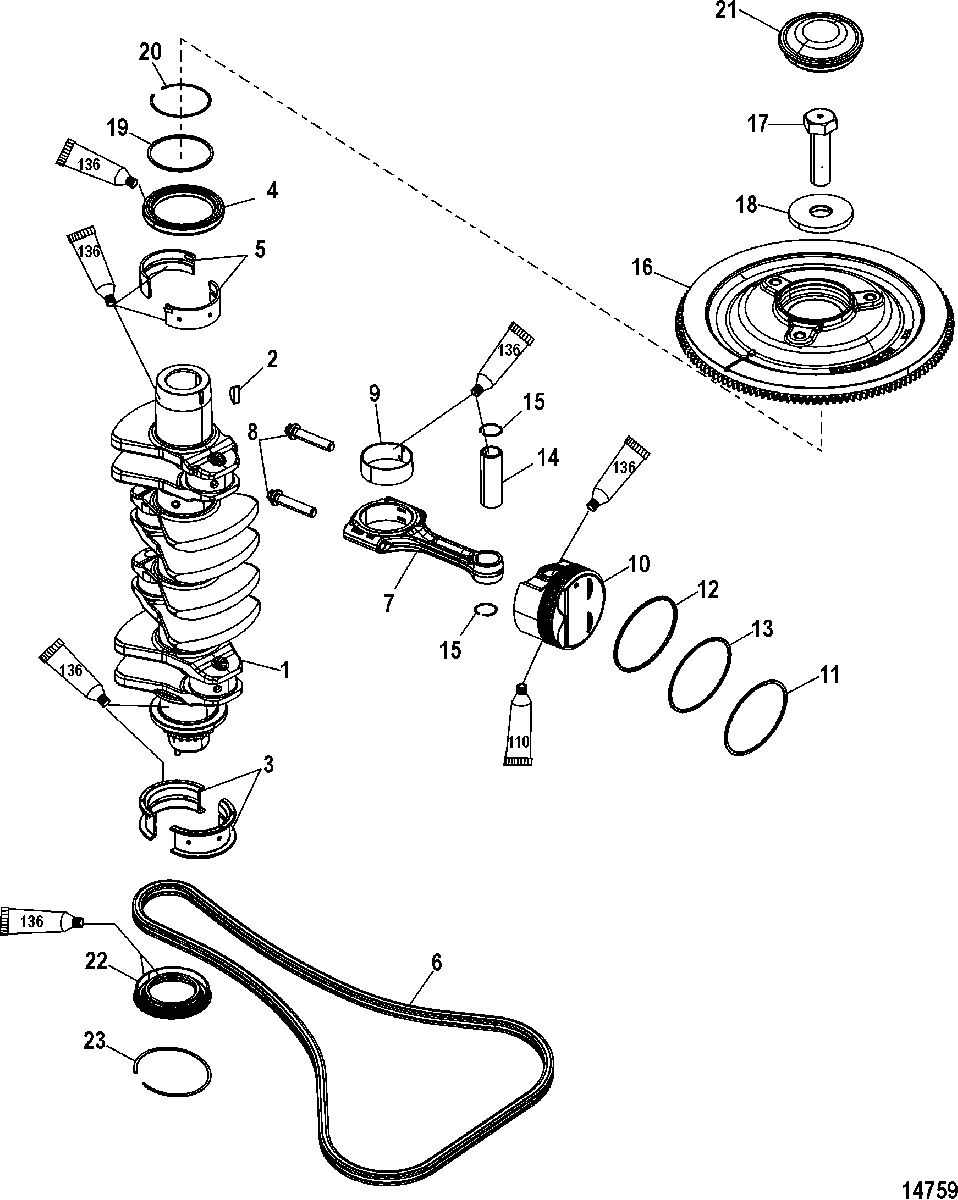

Crankshaft, Pistons and Connecting Rods для Mariner - 100 EFI (4-STROKE) 0P459572 THRU 2B094995
-
№АртикулНазвание
-
1400-8M0110022 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
225-889993001 O-ringO-ring
-
328-91800 KEY, WoodruffKEY, Woodruff
-
423-8M0117003 BEARING, Thrust - Green, Crankshaft-LowerBEARING, Thrust - Green, Crankshaft-Lower
-
423-8M0117001 BEARING, Thrust - Navy Blue, Crankshaft-LowerBEARING, Thrust - Navy Blue, Crankshaft-Lower
-
423-8M0117002 BEARING, Thrust - White, Crankshaft-LowerBEARING, Thrust - White, Crankshaft-Lower
-
423-8M0117004 BEARING, Thrust - Orange, Crankshaft-LowerBEARING, Thrust - Orange, Crankshaft-Lower
-
526-8M0032912 SEAL, Top Main BearingSEAL, Top Main Bearing
-
623-897498T01 BEARING, Main - Green, Crankshaft-UpperBEARING, Main - Green, Crankshaft-Upper
-
623-897498T02 BEARING, Main - Navy Blue, Crankshaft-UpperBEARING, Main - Navy Blue, Crankshaft-Upper
-
623-897498T03 BEARING, Main - White, Crankshaft-UpperBEARING, Main - White, Crankshaft-Upper
-
623-897498T04 BEARING, Main - Orange, Crankshaft-UpperBEARING, Main - Orange, Crankshaft-Upper
-
78M0103398 CHAIN, Roller Cam DriveCHAIN, Roller Cam Drive
-
8662-8M0103285 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
910-884441 BOLTBOLT
-
1023-892005A01 BEARING, Connecting Rod - BlueBEARING, Connecting Rod - Blue
-
1023-892005A02 BEARING, Connecting Rod - WhiteBEARING, Connecting Rod - White
-
1023-892005A03 BEARING, Connecting Rod - OrangeBEARING, Connecting Rod - Orange
-
11700-898472T01 PISTON ASSEMBLY, (Standard)PISTON ASSEMBLY, (Standard)
-
1239-881180A02 RING SET, Piston (Standard)RING SET, Piston (Standard)
-
13NSS NOT SOLD SEPARATE, Oil RingNOT SOLD SEPARATE, Oil Ring
-
14NSS NOT SOLD SEPARATE, Piston Ring-SecondNOT SOLD SEPARATE, Piston Ring-Second
-
15NSS NOT SOLD SEPARATE, Piston PinNOT SOLD SEPARATE, Piston Pin
-
1640-881184 CIRCLIPCIRCLIP
-
17200-897522T04 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
1810-880515 BOLT, (M20 x 68 MM)BOLT, (M20 x 68 MM)
-
1912-8M0090010 WASHER, 66 X 21 X 6.35 MMWASHER, 66 X 21 X 6.35 MM
-
2023-896883 SPACERSPACER
-
2153-896882 RING, RetainingRING, Retaining
-
2219-885348 CAPCAP
-
2326-897540 SEAL, OilSEAL, Oil
-
2453-897785 RING, RetainingRING, Retaining
-
-27-897534A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-8M8033014 LONG BLOCK ASSEMBLY, 75/80/90/100LONG BLOCK ASSEMBLY, 75/80/90/100
-
-8M8033013 LONG BLOCK ASSEMBLY, 115LONG BLOCK ASSEMBLY, 115
