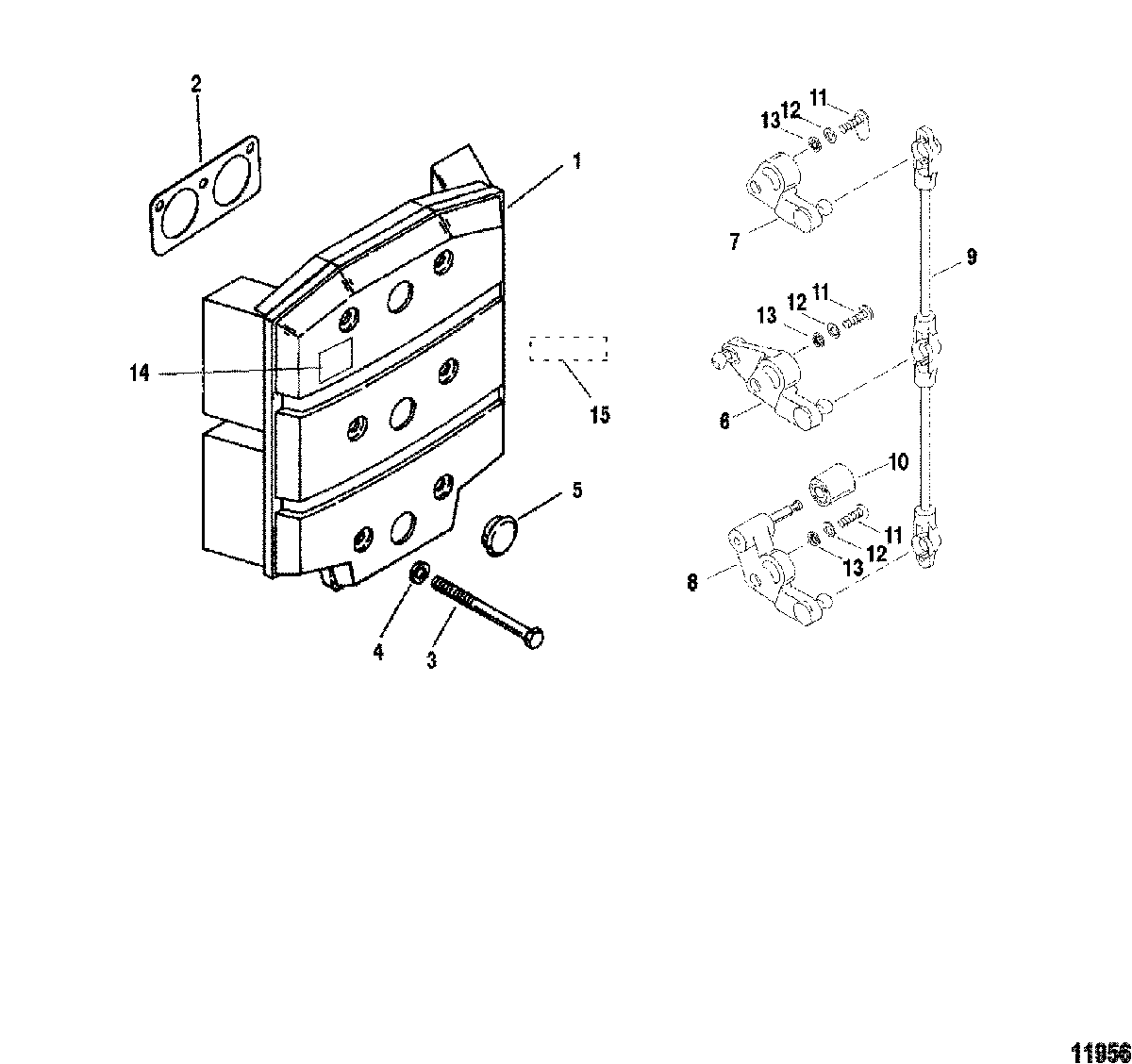

Attenuator Plate And Throttle Levers для Mariner - 105 JET 0G303046 THRU 0G760299
-
№АртикулНазвание
-
1817495A1 PLATE ASSEMBLY, Sound AttenuatorPLATE ASSEMBLY, Sound Attenuator
-
227-892211 GASKETGASKET
-
310-884891 SCREW, (.250-28 x 2.500)SCREW, (.250-28 x 2.500)
-
412-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
519-815784 CAPCAP
-
6828277A1 LINKAGE KITLINKAGE KIT
-
7NSS NOT SOLD SEPARATE, Throttle LevelNOT SOLD SEPARATE, Throttle Level
-
8NSS NOT SOLD SEPARATE, Throttle LevelNOT SOLD SEPARATE, Throttle Level
-
9NSS NOT SOLD SEPARATE, Throtlle LinkNOT SOLD SEPARATE, Throtlle Link
-
1018178 ROLLERROLLER
-
1110-15124 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
1212-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1313-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
14NSS NOT SOLD SEPARATE, Decal-Caution AirboxNOT SOLD SEPARATE, Decal-Caution Airbox
-
1537-855577A12 DECAL, EPA Label Information
(1998)(135/150) (135/150) (See Note)DECAL, EPA Label Information
(1998)(135/150) (135/150) (See Note) -
1537-855577A13 DECAL, EPA Label Information
(1998)(XR6/Mag III/175/200) (XR6/Mag, III/175/200) (See NoteDECAL, EPA Label Information
(1998)(XR6/Mag III/175/200) (XR6/Mag, III/175/200) (See Note -
1537-855920 DECAL, EPA Label Information
(1998)(Export) (See Note)DECAL, EPA Label Information
(1998)(Export) (See Note) -
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
