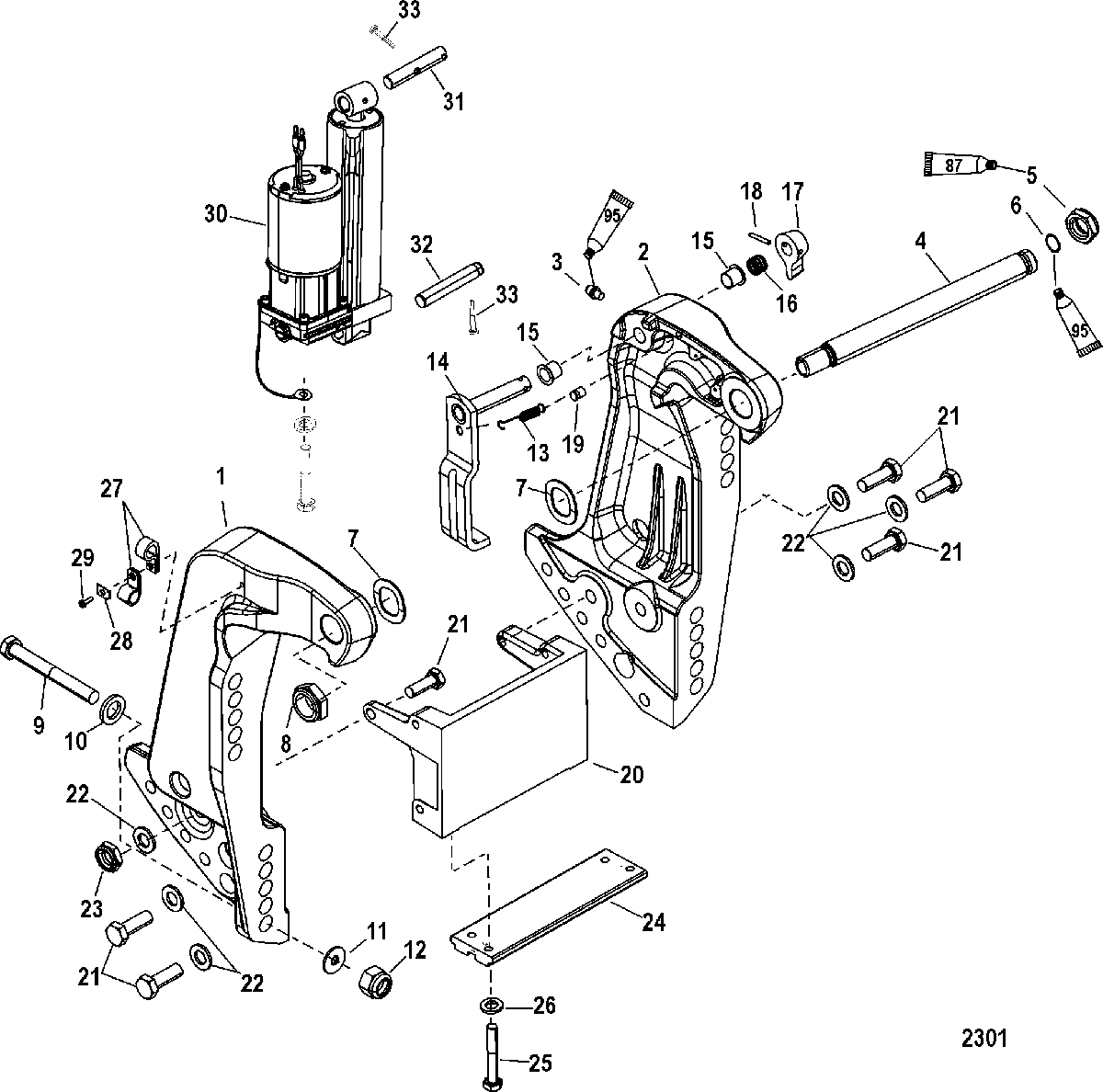

Transom Bracket для Mariner - 115 (4 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
11400-8M0045064 BRACKET, Transom (Starboard)BRACKET, Transom (Starboard)
-
21400-8M0045064 BRACKET ASSEMBLY, Transom (Port)BRACKET ASSEMBLY, Transom (Port)
-
322-98727 FITTING, Grease (Port)FITTING, Grease (Port)
-
4826125A1 TUBE KIT, Tilt
(Carbon Steel)TUBE KIT, Tilt
(Carbon Steel) -
4826125A1 TILT TUBE (Stainless Steel)(Saltwater)TILT TUBE (Stainless Steel)(Saltwater)
-
511-82671327 NUT, (1.00-14)NUT, (1.00-14)
-
511-826135 NUT, (1.00-14) Nylon Insert (Stainless Steel)(Saltwater)NUT, (1.00-14) Nylon Insert (Stainless Steel)(Saltwater)
-
625-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
713-88750 WASHERWASHER
-
811-858869 NUT, (.875-14)NUT, (.875-14)
-
811-826164 NUT, (.875-14) (Brass)(Saltwater)NUT, (.875-14) (Brass)(Saltwater)
-
910-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
1012-54012 WASHER, (.530 x .870 x .105) Stainless SteelWASHER, (.530 x .870 x .105) Stainless Steel
-
1112-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1211-82671117 NUT, (.500-20)NUT, (.500-20)
-
1324-830899 SPRING, TensionSPRING, Tension
-
148M0109798 LEVER ASSEMBLY, Tilt LockLEVER ASSEMBLY, Tilt Lock
-
1523-65830 NYLINERNYLINER
-
1624-830900 SPRING, CompressionSPRING, Compression
-
1799633 KNOBKNOB
-
1817-99615 PIN, GroovePIN, Groove
-
1917-893709 PINPIN
-
208M0086406 BRACKET, AnchorBRACKET, Anchor
-
2110-858771 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
2212-4002319 WASHERWASHER
-
2311-40114 NUT, (M10 x 1.5)NUT, (M10 x 1.5)
-
2497-818298Q1 ANODEANODE
-
2510-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2754-22740 CLIPCLIP
-
288M0084613 C WASHERC WASHER
-
2910-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
308M0090335 PUMP ASSEMBLY, Power Trim
(See Power Trim Components section for parts breakdown)PUMP ASSEMBLY, Power Trim
(See Power Trim Components section for parts breakdown) -
3199625002 SHAFT (Upper)SHAFT (Upper)
-
3217-818898 PIN, AnchorPIN, Anchor
-
3317-821539 PIN, TrilobePIN, Trilobe
