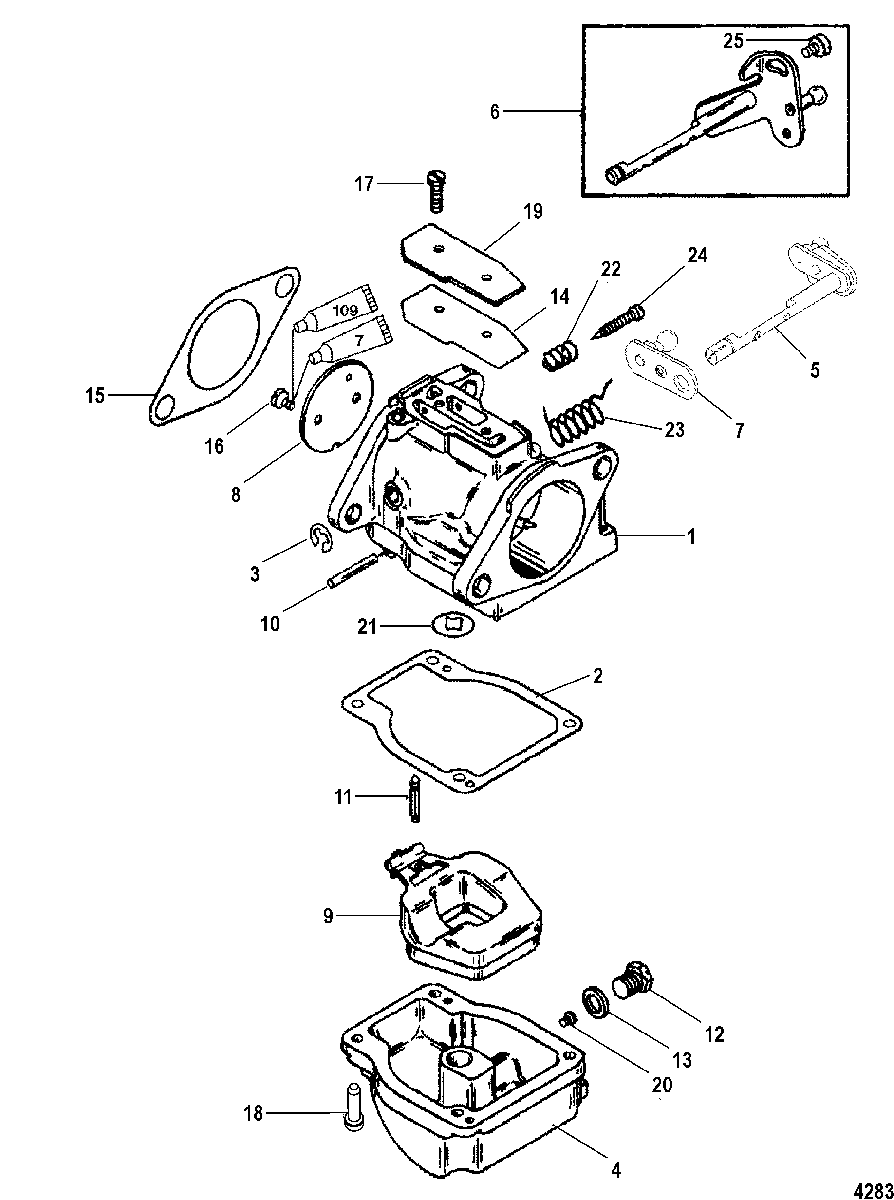

Carburetor для Mariner - 115 (4 CYL.) 1B000001 & Up
-
№АртикулНазвание
-
13301-884586T07 CARBURETOR, (WME 111-1) (115)CARBURETOR, (WME 111-1) (115)
-
13301-884586T08 CARBURETOR, (WME 111-2) (115)CARBURETOR, (WME 111-2) (115)
-
13301-884586T09 CARBURETOR, (WME 111-3) (115)CARBURETOR, (WME 111-3) (115)
-
13301-884586T10 CARBURETOR, (WME 111-4) (115)CARBURETOR, (WME 111-4) (115)
-
13301-884587T07 CARBURETOR, (125-WME 112-1)CARBURETOR, (125-WME 112-1)
-
13301-884587T08 CARBURETOR, (125-WME 112-2)CARBURETOR, (125-WME 112-2)
-
13301-884587T09 CARBURETOR, (125-WME 112-3)CARBURETOR, (125-WME 112-3)
-
13301-884587T10 CARBURETOR, (125-WME 112-4)CARBURETOR, (125-WME 112-4)
-
2NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
3NSS NOT SOLD SEPARATE, Retaining RingNOT SOLD SEPARATE, Retaining Ring
-
41395-811693 BOWL, FuelBOWL, Fuel
-
51395-823632 SHAFT, Throttle (WME-111-1/3/4 and WME 112-1/3/4)SHAFT, Throttle (WME-111-1/3/4 and WME 112-1/3/4)
-
61395-8236321 SHAFT, Throttle (WME-111-2 and WME 112-2)SHAFT, Throttle (WME-111-2 and WME 112-2)
-
71395-8087461 LEVER, ThrottleLEVER, Throttle
-
81395-97241 VALVE, ThrottleVALVE, Throttle
-
91395-9594 FLOATFLOAT
-
10F10064 SHAFTSHAFT
-
1110-95951 VALVE, Inlet NeedleVALVE, Inlet Needle
-
121395-811694 PLUG KITPLUG KIT
-
131395-802731 SEAL (Consists of 4 Seals)SEAL (Consists of 4 Seals)
-
14NSS NOT SOLD SEPARATE, Gasket-Cover PlateNOT SOLD SEPARATE, Gasket-Cover Plate
-
1527-151724 GASKETGASKET
-
1610-F10155 SCREW, Throttle ValveSCREW, Throttle Valve
-
171395-811220 SCREW, Cover PlateSCREW, Cover Plate
-
181395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
191395-811221 COVER PLATECOVER PLATE
-
201395-6487 JET, Main (.060) (WME-111-1/3/4)(115)JET, Main (.060) (WME-111-1/3/4)(115)
-
201399-4217 JET, Main (.062) (WME-111-2)(115)JET, Main (.062) (WME-111-2)(115)
-
201395-6030 JET, (.070) (WME-112-1)(125)JET, (.070) (WME-112-1)(125)
-
201395-6680 JET, (.078) (WME-112-2)(125)JET, (.078) (WME-112-2)(125)
-
201399-3796 JET, (.076) (WME-112-3/4)(125)JET, (.076) (WME-112-3/4)(125)
-
211395-808738 GASKETGASKET
-
22NSS NOT SOLD SEPARATE, Spring-Idle NeedleNOT SOLD SEPARATE, Spring-Idle Needle
-
23NSS NOT SOLD SEPARATE, Spring-Throttle ReturnNOT SOLD SEPARATE, Spring-Throttle Return
-
24NSS NOT SOLD SEPARATE, Idle NeedleNOT SOLD SEPARATE, Idle Needle
-
251395-823634 SCREWSCREW
-
-1395-8236354 REPAIR KIT, Carburetor
(1 Per Carburetor)REPAIR KIT, Carburetor
(1 Per Carburetor) -
-1395-8112231 GASKET SET, Carburetor
(1 Per Carburetor)GASKET SET, Carburetor
(1 Per Carburetor) -
-27-13461A99 GASKET SETGASKET SET
