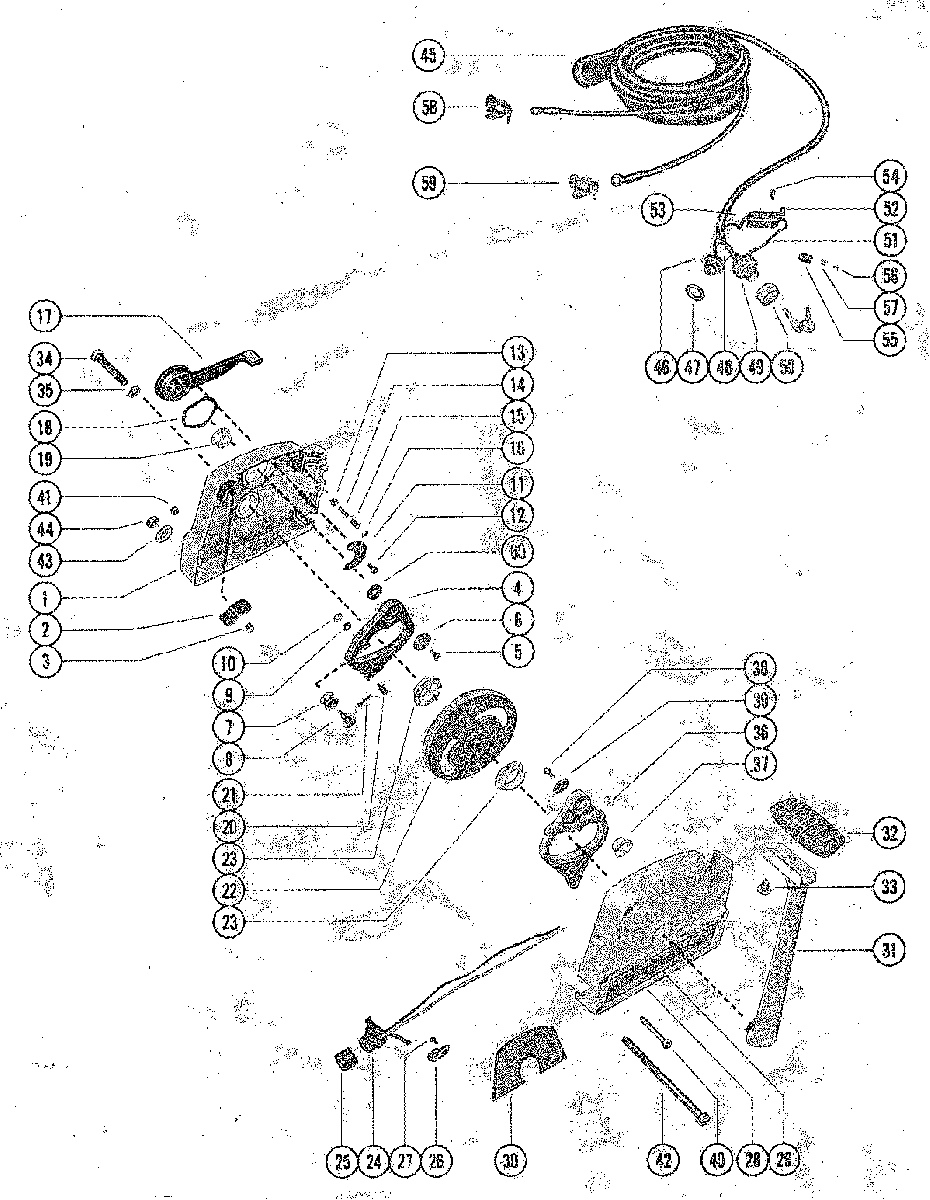

REMOTE CONTROL ASSEMBLY (ELECTRIC) для Mariner - 115 (6 CYL.) 5430527 THRU 5738890
-
№АртикулНазвание
-
-76714A ELECTRIC REMOTE CONTROL ASSEMBLY, COMPLETEELECTRIC REMOTE CONTROL ASSEMBLY, COMPLETE
-
1458802 HOUSING, REMOTE CONTROL (STARBOARD)HOUSING, REMOTE CONTROL (STARBOARD)
-
224-34683 SPRING, DETENT - CONTROL HOUSINGSPRING, DETENT - CONTROL HOUSING
-
334992 ROLLER, DETENT SPRINGROLLER, DETENT SPRING
-
434671 LEVER, THROTTLE - CONTROL HOUSINGLEVER, THROTTLE - CONTROL HOUSING
-
510-85072 SCREW, THROTTLE LEVER TO NEUTRAL WARM-UP LEVERSCREW, THROTTLE LEVER TO NEUTRAL WARM-UP LEVER
-
612-34675 WASHER, THROTTLE LEVER SCREWWASHER, THROTTLE LEVER SCREW
-
734672 CAM ROLLER, THROTTLE LEVERCAM ROLLER, THROTTLE LEVER
-
817-34673 PIN, CAM ROLLER TO THROTTLE LEVERPIN, CAM ROLLER TO THROTTLE LEVER
-
912-34680 WASHER, CAM ROLLER PINWASHER, CAM ROLLER PIN
-
1011-24656 NUT, CAM ROLLER TO THROTTLE LEVER PINNUT, CAM ROLLER TO THROTTLE LEVER PIN
-
1134679 PLATE, THRUST - CONTROL HOUSINGPLATE, THRUST - CONTROL HOUSING
-
1210-47220 SCREW, THRUST PLATE TO NEUTRAL WARM-UP LEVERSCREW, THRUST PLATE TO NEUTRAL WARM-UP LEVER
-
1317-20009 PIN, DETENT - CONTROL HOUSING NEUTRAL WARM-UP LEVERPIN, DETENT - CONTROL HOUSING NEUTRAL WARM-UP LEVER
-
1424-35210 SPRING, DETENT PINSPRING, DETENT PIN
-
1524-35227 SPRING, DETENT PIN TENSIONSPRING, DETENT PIN TENSION
-
1619-20011 WELCH PLUG, DETENT PIN AND SPRING RETAININGWELCH PLUG, DETENT PIN AND SPRING RETAINING
-
17346702 LEVER, NEUTRAL WARM-UPLEVER, NEUTRAL WARM-UP
-
1813-34678 WASHER, WAVE - NEUTRAL WARM-UP LEVERWASHER, WAVE - NEUTRAL WARM-UP LEVER
-
1923-33589 BUSHING, NYLON - NEUTRAL WARM-UP LEVER(5/8"I.D.)BUSHING, NYLON - NEUTRAL WARM-UP LEVER(5/8"I.D.)
-
2017-34692 PIN, SHIFT AN DTHROTTLE LEVERSPIN, SHIFT AN DTHROTTLE LEVERS
-
2118-29623 COTTER PIN, SHIFT AND THROTTLE LEVER PINSCOTTER PIN, SHIFT AND THROTTLE LEVER PINS
-
2259369 FACE CAMFACE CAM
-
2323-34677 BUSHING, NYLON - FACE CAM (1"I.D.)BUSHING, NYLON - FACE CAM (1"I.D.)
-
2484-93466A1 CONNECTOR , TACHOMETER LEAD TO REMOTE CONTROLCONNECTOR , TACHOMETER LEAD TO REMOTE CONTROL
-
2545940 CAP, TACHOMETER LEAD CONNECTORCAP, TACHOMETER LEAD CONNECTOR
-
2686-63577 TERMINAL BLOCK, CONNECTOR LEADSTERMINAL BLOCK, CONNECTOR LEADS
-
2710-37260 SCREW, TERMINAL BLOCK TO CONTROL HOUSING (7/16")SCREW, TERMINAL BLOCK TO CONTROL HOUSING (7/16")
-
28459392 HOUSING, REMOTE CONTROL (PORT)HOUSING, REMOTE CONTROL (PORT)
-
2937-76703 DECAL, CONTROL HOUSING (MARINER) - NOT AS SHOWNDECAL, CONTROL HOUSING (MARINER) - NOT AS SHOWN
-
3037-64043 DECAL, CONTROL HOUSING (MERCONTROL)DECAL, CONTROL HOUSING (MERCONTROL)
-
31346892 LEVER, CONTROLLEVER, CONTROL
-
3236005 GRIP, CONTROL LEVERGRIP, CONTROL LEVER
-
3310-37342 SCREW, GRIP TO CONTROL LEVER (7/16")SCREW, GRIP TO CONTROL LEVER (7/16")
-
3410-68909 SCREW, CONTROL LEVER TO FACE CAM(1 1/2")SCREW, CONTROL LEVER TO FACE CAM(1 1/2")
-
3513-26992 LOCKWASHER, CONTROL LEVER SCREWLOCKWASHER, CONTROL LEVER SCREW
-
3634682 LEVER, SHIFT - CONTROL HOUSINGLEVER, SHIFT - CONTROL HOUSING
-
3723-33589 BUSHING, NYLON - SHIFT LEVER (5/8" I.D.)BUSHING, NYLON - SHIFT LEVER (5/8" I.D.)
-
3810-85072 SCREW, SHIFT LEVER TO CONTROL HOUSINGSCREW, SHIFT LEVER TO CONTROL HOUSING
-
3912-34675 WASHER, SHIFT LEVER SCREWWASHER, SHIFT LEVER SCREW
-
4010-37941 SCREW, REMOTE CONTROL HOUSING CLAMPINGSCREW, REMOTE CONTROL HOUSING CLAMPING
-
4111-30506 NUT, REMOTE CONTROL HOUSING CLAMPING SCREWNUT, REMOTE CONTROL HOUSING CLAMPING SCREW
-
4210-34900 SCREW, REMOTE CONTROL TO BOAT (4 1/4")SCREW, REMOTE CONTROL TO BOAT (4 1/4")
-
4312-69057 WASHER, REMOTE CONTROL SCREWWASHER, REMOTE CONTROL SCREW
-
4411-24652 NUT, REMOTE CONTROL TO BOAT TRANSOMNUT, REMOTE CONTROL TO BOAT TRANSOM
-
4545876 WIRING HARNESS, EXTERNALWIRING HARNESS, EXTERNAL
-
4629759 SWITCH, CHOKESWITCH, CHOKE
-
4730053 COLLAR, CHOKE SWITCH TO CONTROL HOUSINGCOLLAR, CHOKE SWITCH TO CONTROL HOUSING
-
4839180 JUMPER WIRE, CHOKE SWITCH TO IGNITION SWITCHJUMPER WIRE, CHOKE SWITCH TO IGNITION SWITCH
-
Y.54211T SWITCH, IGNITION (WITH KEYS) KEY PART #C-30431
WHEN ORDERING REPLACEMENT KEYS ALSO LIST NUMBER STAMPED ON KEY.SWITCH, IGNITION (WITH KEYS) KEY PART #C-30431
WHEN ORDERING REPLACEMENT KEYS ALSO LIST NUMBER STAMPED ON KEY. -
5068863 BEZEL, IGNITION SWITCH TO CONTROL HOUSINGBEZEL, IGNITION SWITCH TO CONTROL HOUSING
-
5130795 JUMPER WIRE, SAFETY SWITCH TO IGNITION SWITCHJUMPER WIRE, SAFETY SWITCH TO IGNITION SWITCH
-
5234621T SWITCH, SAFETYSWITCH, SAFETY
-
5323-379612 SLEEVE, SAFETY SWITCH LEADSSLEEVE, SAFETY SWITCH LEADS
-
5410-30902 SCREW, SAFETY SWITCH TO CONTROL HOUSINGSCREW, SAFETY SWITCH TO CONTROL HOUSING
-
5554-22627 CLIP, INNER - WIRING HARNESS CONTROL HOUSINGCLIP, INNER - WIRING HARNESS CONTROL HOUSING
-
5610-37260 SCREW, WIRING HARNESS CLIP TO CONTROL HOUSING (7/16")SCREW, WIRING HARNESS CLIP TO CONTROL HOUSING (7/16")
-
578M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW"D" WASHER, WIRING HARNESS CLIP SCREW
-
5827913 BATTERY TERMINAL , NEGATIVE (WITH BOLT AND NUT)BATTERY TERMINAL , NEGATIVE (WITH BOLT AND NUT)
-
5927912 BATTERY TERMINAL, POSITIVE (WITH BOLT AN DNUT)BATTERY TERMINAL, POSITIVE (WITH BOLT AN DNUT)
-
6013-60861 WASHER, WAVE - THROTTLE LEVERWASHER, WAVE - THROTTLE LEVER
