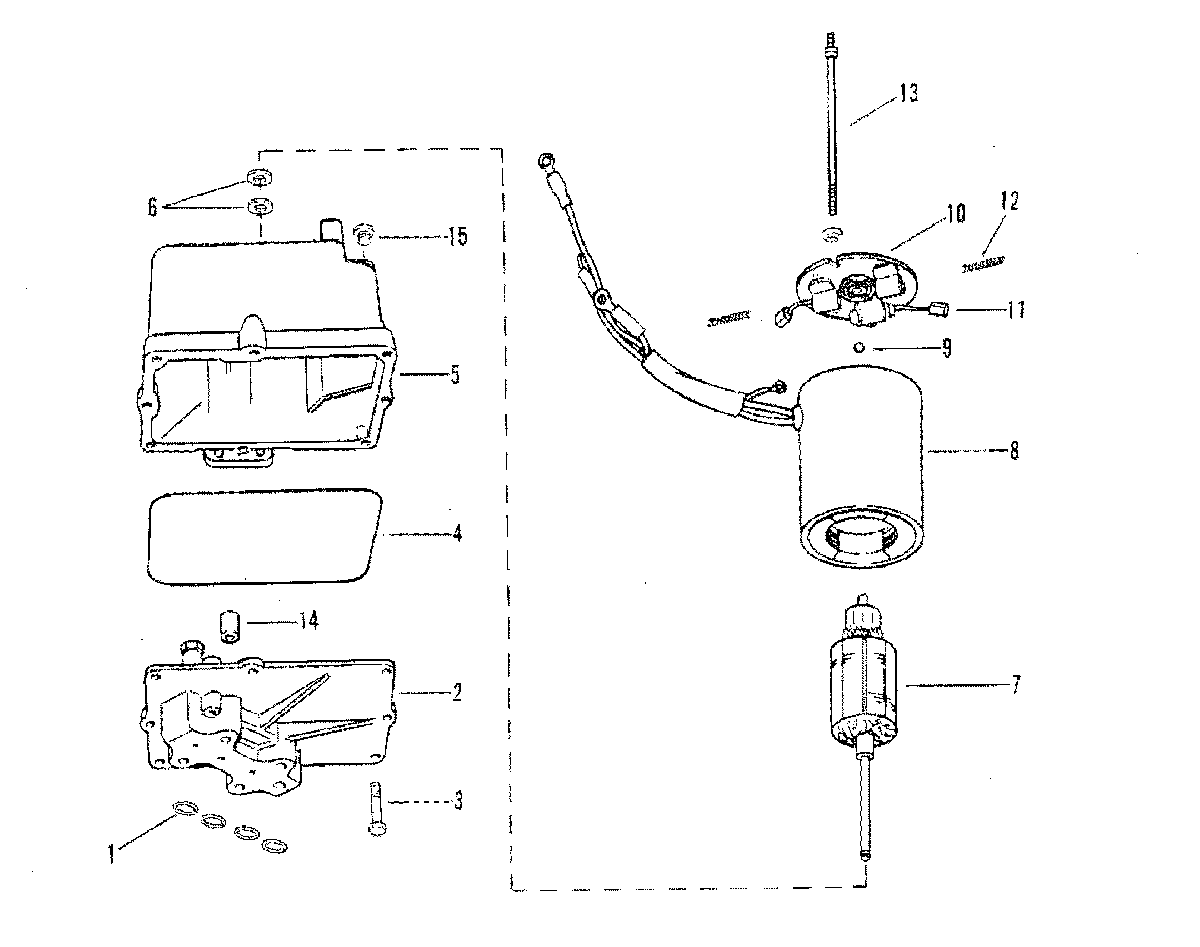

HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR) для Mariner - 115 (6 CYL.) 5738891 THRU 6436122
-
№АртикулНазвание
-
-92975A32 HYDRAULIC PUMP ASSEMBLYHYDRAULIC PUMP ASSEMBLY
-
125-48171 "O" RING, HYDRAULIC PUMP"O" RING, HYDRAULIC PUMP
-
292975A32 VALVE BODY AND GEAR ASSEMBLYVALVE BODY AND GEAR ASSEMBLY
-
310-69570 SCREW, VAVLE BODY TO RESEROVIRSCREW, VAVLE BODY TO RESEROVIR
-
4392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEARSEAL, RESERVOIR TO VALVE BODY AND GEAR
-
5392-7731 RESERVOIR ASSEMBLY (PLASTIC)RESERVOIR ASSEMBLY (PLASTIC)
-
6392-7732 WASHER, THRUST - ARMATUREWASHER, THRUST - ARMATURE
-
7392-7729 ARMATURE, FIELD AND FRAMEARMATURE, FIELD AND FRAME
-
8392-8261 FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
9392-7730 BALL, COMMUTATOR END PLATEBALL, COMMUTATOR END PLATE
-
10392-8262 PLATE ASSEMBLY, COMMUTATOR ENDPLATE ASSEMBLY, COMMUTATOR END
-
11392-8989 BRUSH SET, COMMUTATOR END PLATEBRUSH SET, COMMUTATOR END PLATE
-
12392-2529 SPRING SET, BRUSH TENSIONSPRING SET, BRUSH TENSION
-
13392-7733 BOLT SET, THRU - PLATE AND FRAME TO RESERVOIRBOLT SET, THRU - PLATE AND FRAME TO RESERVOIR
-
14392-7727 COUPLER AND SHAFTCOUPLER AND SHAFT
-
15392-7728 FILL PLUG, RESERVOIRFILL PLUG, RESERVOIR
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- END CAP, MANIFOLD AND EXHAUST COVERS
- EXHAUST EXTENSION PLATE
- FLYWHEEL, STARTER MOTOR AND STATOR
- FUEL PUMP AND FUEL LINE ASSEMBLY
- GEAR HOUSING (DRIVE SHAFT)
- GEAR HOUSING (PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
- • HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS - WITH CIRCUIT BREAKER AND FUSE
- POWER TRIM COMPONENTS - WITHOUT CIRCUIT BREAKER
- POWER TRIM CYLINDER REPAIR KITS (USE WITH 76509A23 TRIM)
- POWER TRIM CYLINDER REPAIR KITS (USE WITH 92194A20 TRIM)
- STARTER MOTOR ASSEMBLY
- SWITCH BOX AND STARTER SOLENOID
- SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND LINK RODS
- TOP COWL AND SUPPORT BRACKETS
- TRANSOM BRACKET
- TRIM CYLINDERS AND HYDRAULIC HOSES
- WIRING HARNESS AND IGNITION COIL
