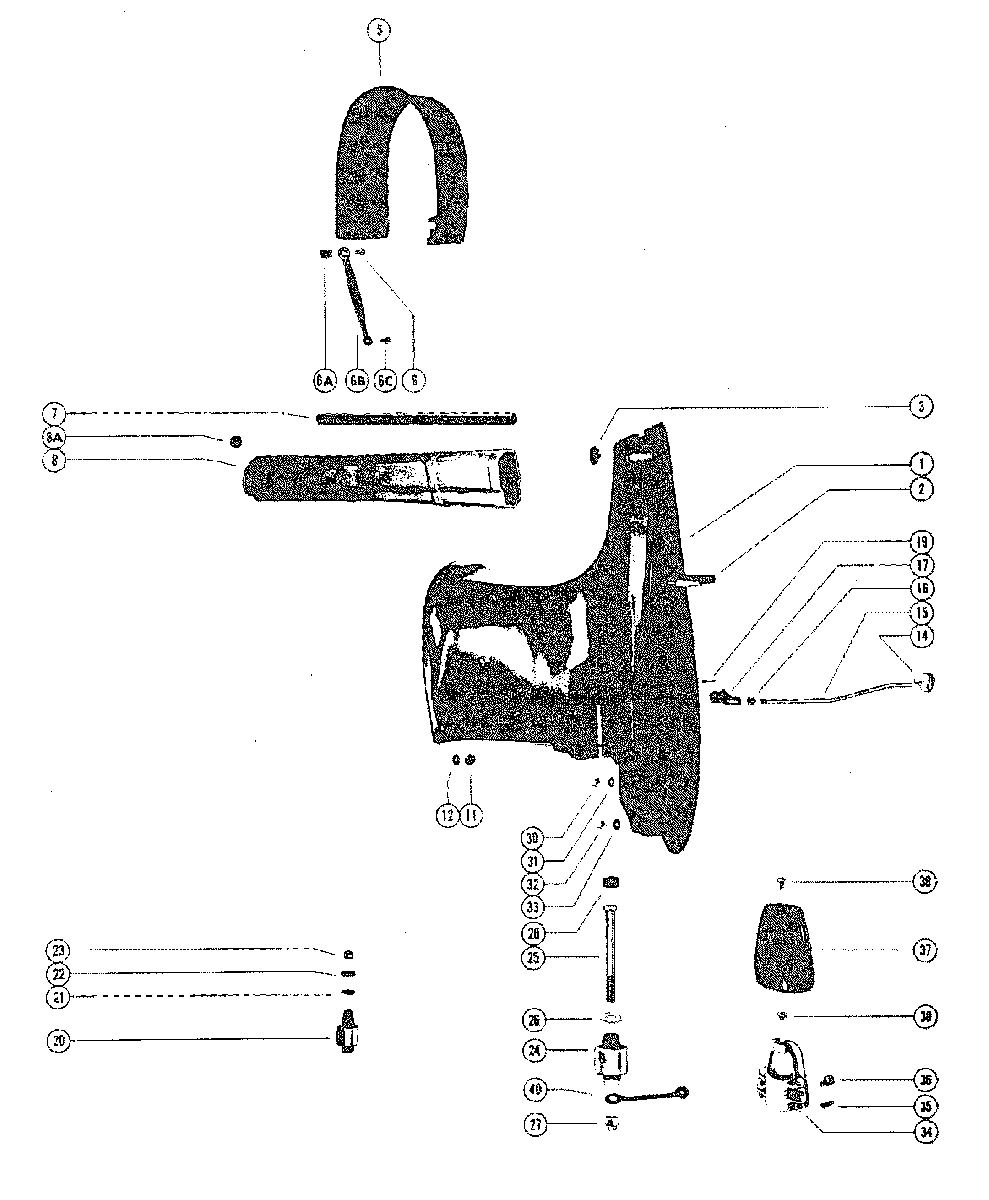

DRIVE SHAFT HOUSING ASSEMBLY для Mariner - 115 (6 CYL.) 7191308 THRU 7208847
-
№АртикулНазвание
-
11573-5239A51 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
216-56295 STUD, DRIVE SHAFT HOUSING (LONG SHAFT)STUD, DRIVE SHAFT HOUSING (LONG SHAFT)
-
216-74732 STUD, DRIVE SHAFT HOUSING (EXTRA LONG SHAFT)STUD, DRIVE SHAFT HOUSING (EXTRA LONG SHAFT)
-
319-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
537417F2 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
610-57807 SCREW, TRIM COVER TO BOTTOM COWLSCREW, TRIM COVER TO BOTTOM COWL
-
6A25-8M0079730 GROMMET, PLASTIC - TRIM COVER SCREWGROMMET, PLASTIC - TRIM COVER SCREW
-
6B84-88238T01 GROUND STRAP ASSEMBLY, TRIM COVER SCREWGROUND STRAP ASSEMBLY, TRIM COVER SCREW
-
6C10-62568 SCREW, GOUND STRAP ATTACHINGSCREW, GOUND STRAP ATTACHING
-
732-60897 TUBE, WATER INLET (LONG SHAFT)TUBE, WATER INLET (LONG SHAFT)
-
732-77121 TUBE, WATER INLET (EXTRA LONG SHAFT)TUBE, WATER INLET (EXTRA LONG SHAFT)
-
878184T EXHAUST TUBEEXHAUST TUBE
-
8A65638 BOOT EXHUST TUBEBOOT EXHUST TUBE
-
1111-69254 NUT, POWERHEAD STUDS (3/8-24)NUT, POWERHEAD STUDS (3/8-24)
-
1212-20553 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
1452887 GUIDE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861526 AND BELOWGUIDE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861526 AND BELOW -
1547558 ROD, PUSH
NOT USED WITH FULL POWER TRIM UNITED STATES 5861526 AND BELOWROD, PUSH
NOT USED WITH FULL POWER TRIM UNITED STATES 5861526 AND BELOW -
1611-69254 NUT, JAM - PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861526 AND BELOWNUT, JAM - PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861526 AND BELOW -
1747559 YOKE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861526 AND BELOWYOKE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861526 AND BELOW -
1492704 GUIDE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861527 AND UPGUIDE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861527 AND UP -
1543417A2 ROD, PUSH
NOT USED WITH FULL POWER TRIM UNITED STATES 5861527 AND UPROD, PUSH
NOT USED WITH FULL POWER TRIM UNITED STATES 5861527 AND UP -
1611-28770 NUT, JAM - PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861527 AND UPNUT, JAM - PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861527 AND UP -
1789813 YOKE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861527 AND UPYOKE, PUSH ROD
NOT USED WITH FULL POWER TRIM UNITED STATES 5861527 AND UP -
1918-25191 COTTER PIN, PUSH ROD PIN
NOT USED WITH FULL POWER TRIMCOTTER PIN, PUSH ROD PIN
NOT USED WITH FULL POWER TRIM -
2075296 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2112-47840 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
2212-31263 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
2311-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
2475299 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2510-75284 SCREW, LOWER MOUNT (5-1/2")SCREW, LOWER MOUNT (5-1/2")
-
2612-49339 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2711-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
2825067 BUMPER, RUBBER - LOWER MOUNTING SCREWBUMPER, RUBBER - LOWER MOUNTING SCREW
-
3011-34933 NUT, GEAR HOUSING STUDSNUT, GEAR HOUSING STUDS
-
3112-45176 WASHER, GEAR HOUSING STUDSWASHER, GEAR HOUSING STUDS
-
3211-29489 NUT, GEAR HOSUING STUDSNUT, GEAR HOSUING STUDS
-
3312-45176 WASHER, GEAR HOUSING STUDSWASHER, GEAR HOUSING STUDS
-
3435608 CLAMP, LOWER MOUNTCLAMP, LOWER MOUNT
-
3524-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
3610-29256 SCREW, LOWER MOUNT CLAMPSCREW, LOWER MOUNT CLAMP
-
3735474F2 COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
3811-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
3910-87884 SCREW, COVER TO LOWER CLAMP MOUNTSCREW, COVER TO LOWER CLAMP MOUNT
-
4088238A10 WIRE ASSEMBLY, GROUNDWIRE ASSEMBLY, GROUND
-
--77120T SPACER, DRIVE SHAFT HOUSING - EXTRA LONG SHAFTSPACER, DRIVE SHAFT HOUSING - EXTRA LONG SHAFT
-
--17-21438 DOWEL PIN, SPACER - EXTRA LONG SHAFTDOWEL PIN, SPACER - EXTRA LONG SHAFT
