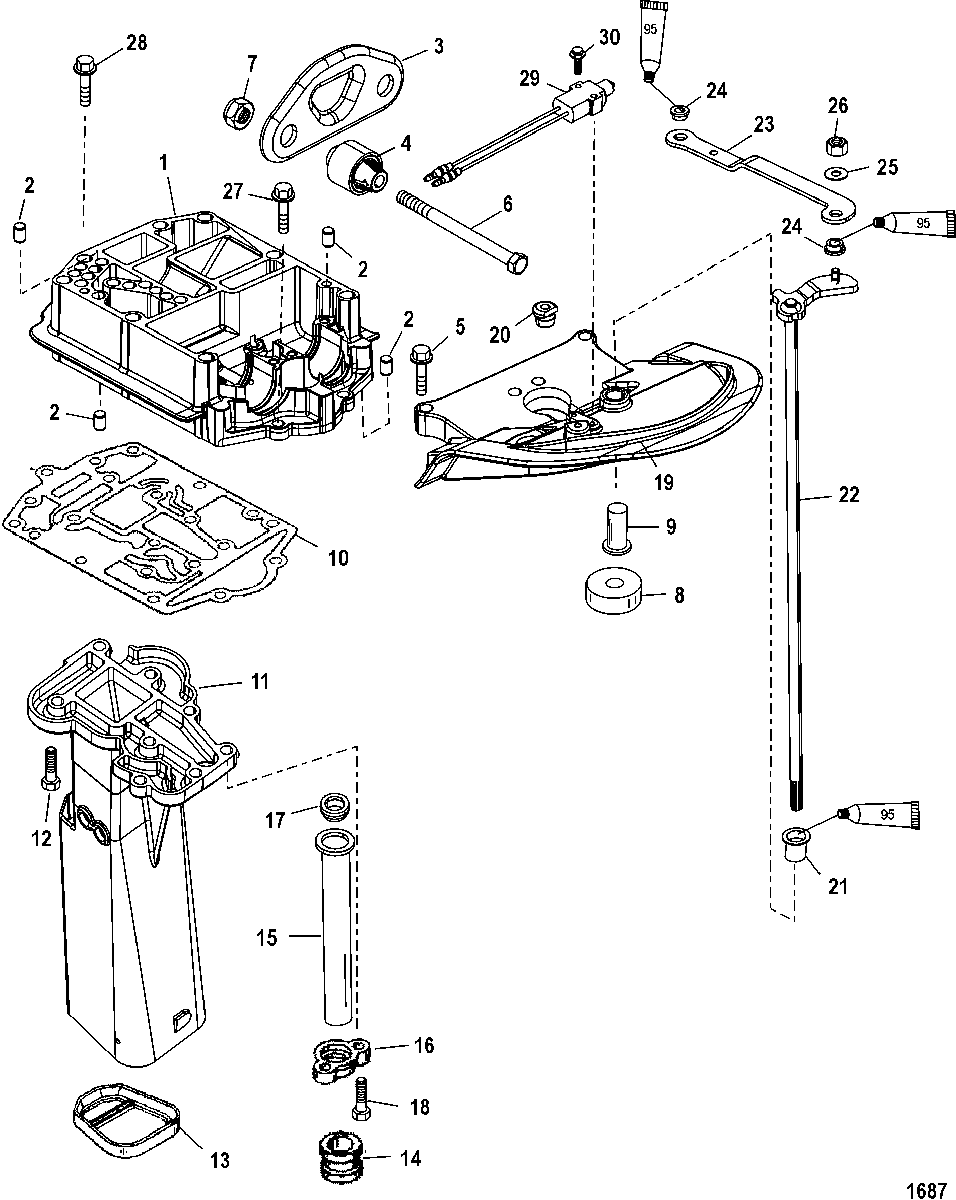

Exhaust Plate для Mariner - 115 DFI (3 CYL.)(1.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
1881912T01 PLATE, ExhaustPLATE, Exhaust
-
217-23784 PIN, DowelPIN, Dowel
-
3881973 RETAINERRETAINER
-
4881915002 MOUNTMOUNT
-
510-881975 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
610-898487 BOLT, (M12 x 175)BOLT, (M12 x 175)
-
711-896963 NUT, (M12)NUT, (M12)
-
823-813745 SPACER
(Long)SPACER
(Long) -
823-11289 SPACER
(X-Long)SPACER
(X-Long) -
943585 COUPLINGCOUPLING
-
1027-430086 GASKETGASKET
-
1142966T07 TUBE, ExhaustTUBE, Exhaust
-
1210-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
138M0039075 SEALSEAL
-
1425-89417004 GROMMETGROMMET
-
1532-8M0042791 TUBE, Water - Long (13.21 Inches)
(Long)TUBE, Water - Long (13.21 Inches)
(Long) -
1532-8M0042792 TUBE, Water - X Long (18.21 Inches)
(X-Long)TUBE, Water - X Long (18.21 Inches)
(X-Long) -
16824661 CLAMPCLAMP
-
17814080001 SEAL, UpperSEAL, Upper
-
1810-889833045 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
19881918T03 CLAMPCLAMP
-
2025-12602002 GROMMET (.44 I.D.)GROMMET (.44 I.D.)
-
2123-48237 BUSHINGBUSHING
-
22892245T01 SHIFT SHAFTSHIFT SHAFT
-
23892246A01 SHIFT LINKSHIFT LINK
-
2423-892263 BUSHINGBUSHING
-
2512-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
2611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2710-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
2810-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
2987-889514T02 SWITCHSWITCH
-
3010-88075020 SCREW, (M3 x 20)SCREW, (M3 x 20)
