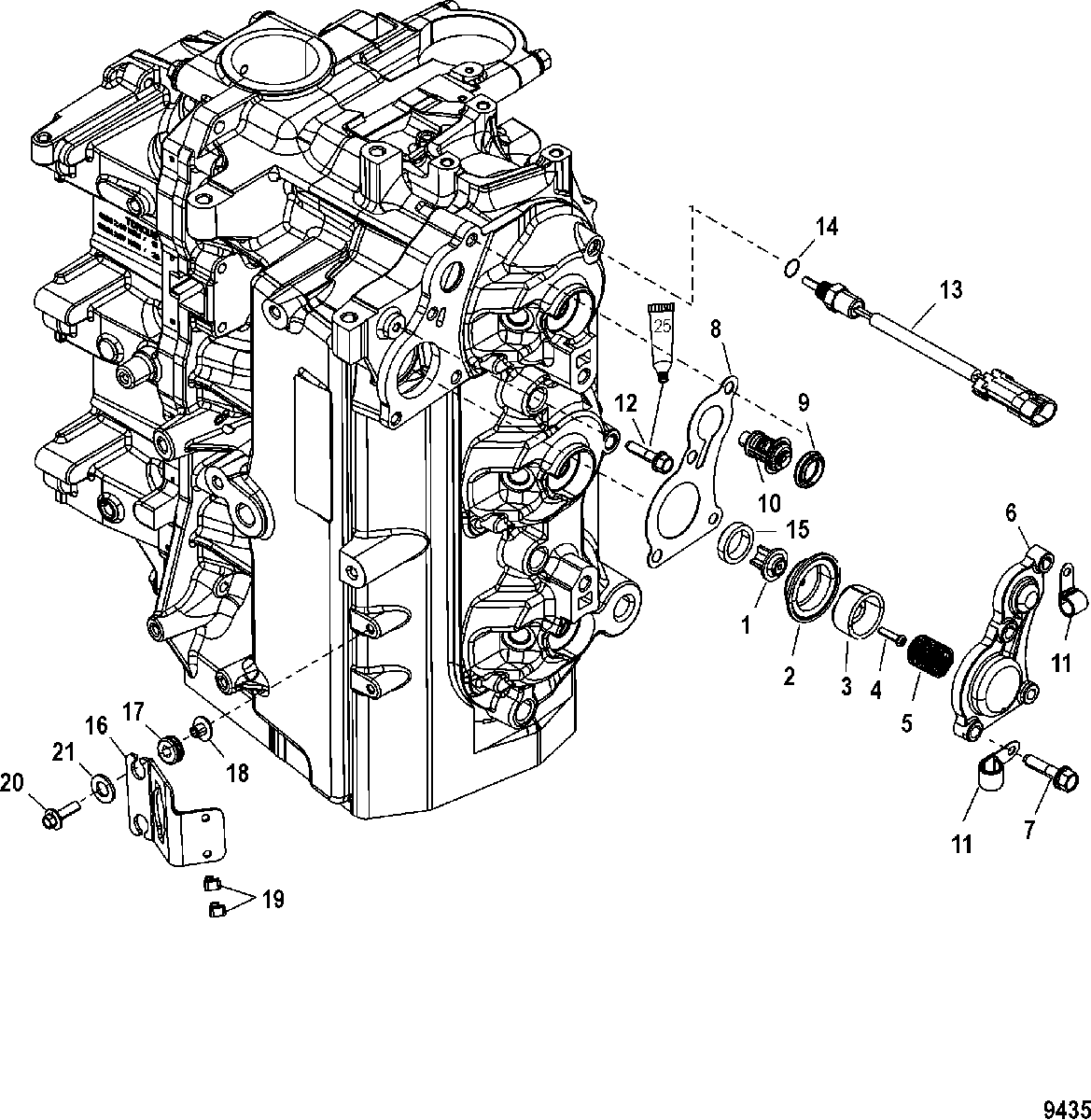

Poppet/Thermostat Mounting для Mariner - 115 DFI (3 CYL.)(1.5L) 1B417702 THRU 1B736885
-
№АртикулНазвание
-
1884389 POPPETPOPPET
-
2812887002 DIAPHRAGMDIAPHRAGM
-
312-94182 WASHERWASHER
-
410-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
524-892321 SPRINGSPRING
-
68M0036780 COVERCOVER
-
710-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
827-879855001 GASKETGASKET
-
927-62386001 GASKETGASKET
-
10833072004 THERMOSTAT, 62A°C (143A°F)THERMOSTAT, 62A°C (143A°F)
-
1154-814634 CLAMPCLAMP
-
1210-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
13885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1425-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
1523-892265 SPACERSPACER
-
16897486A01 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
1725-834985 GROMMETGROMMET
-
1823-822003 BUSHINGBUSHING
-
1954-879962 CLIPCLIP
-
2010-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2112-4002316 WASHERWASHER
-
-27-879855A04 GASKET SET, PowerheadGASKET SET, Powerhead
-
-895233A07 POWERHEAD ASSEMBLY, 75 DFIPOWERHEAD ASSEMBLY, 75 DFI
-
-891767A07 POWERHEAD ASSEMBLY, 90/115 DFIPOWERHEAD ASSEMBLY, 90/115 DFI
