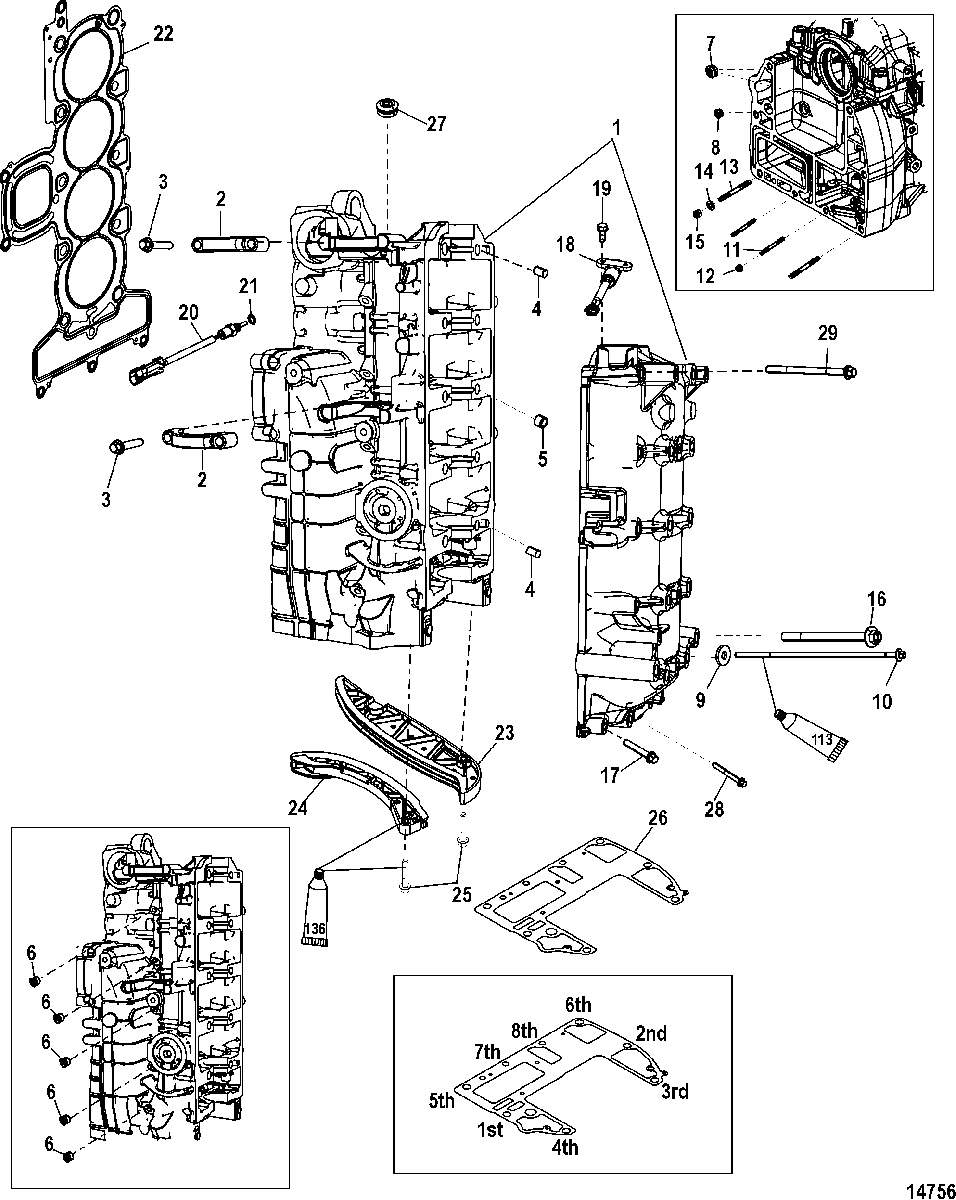

Cylinder Block для Mariner - 115 EFI (4-STROKE) 1B366823 THRU 2B094995
-
№АртикулНазвание
-
1800-880504A12 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
28M0007889 BRACKET
SN# 1B759587 & BelowBRACKET
SN# 1B759587 & Below -
310-8M0103815 SCREW, (M8 x 40), NOTE:No Longer included with Longblock
SN# 1B759587 & BelowSCREW, (M8 x 40), NOTE:No Longer included with Longblock
SN# 1B759587 & Below -
417-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
523-893392001 DAMPERDAMPER
-
619-8M0087448 PLUG, (12 mm)PLUG, (12 mm)
-
719-896951 PLUG, (24 mm)PLUG, (24 mm)
-
819-8M0087449 PLUG, (14 mm)PLUG, (14 mm)
-
912-892573001 WASHERWASHER
-
1010-8M4501000 SCREW, (M10 x 342)SCREW, (M10 x 342)
-
1116-8M0000275 STUD, (M8 x 55)STUD, (M8 x 55)
-
1211-826365 NUT, (M8)NUT, (M8)
-
1316-8M0010471 STUD, (M10 x 1.5)STUD, (M10 x 1.5)
-
1412-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1511-884412 NUTNUT
-
1610-8M0103829 SCREW, (M10 x 120)SCREW, (M10 x 120)
-
1710-895810050 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
188M0082988 SENSORSENSOR
-
1910-40011106 SCREW, (M5 x 13) Stainless SteelSCREW, (M5 x 13) Stainless Steel
-
20885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
2125-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
2227-8M0024565 GASKET, Head
SN# 1B494359 & BelowGASKET, Head
SN# 1B494359 & Below -
2227-8M0024565 GASKET
SN# 1B494360 & UpGASKET
SN# 1B494360 & Up -
23880559 GUIDE, FixedGUIDE, Fixed
-
24880557 GUIDE, MoveableGUIDE, Moveable
-
2510-892456045 SCREWSCREW
-
2627-8M0024563 GASKET, Block to Adaptor
SN# 1B500083 & BelowGASKET, Block to Adaptor
SN# 1B500083 & Below -
2627-8M0024563 GASKET, Block to Adaptor
SN# 1B500084 & UpGASKET, Block to Adaptor
SN# 1B500084 & Up -
2719-891953 PLUG, (18 mm)PLUG, (18 mm)
-
2810-895810070 SCREW, (M8 x 70)SCREW, (M8 x 70)
-
2910-895810090 SCREW, (M8 x 90)SCREW, (M8 x 90)
-
-27-897534A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-8M8033014 LONG BLOCK ASSEMBLY, 75/80/90/100LONG BLOCK ASSEMBLY, 75/80/90/100
-
-8M8033013 LONG BLOCK ASSEMBLY, 115LONG BLOCK ASSEMBLY, 115
