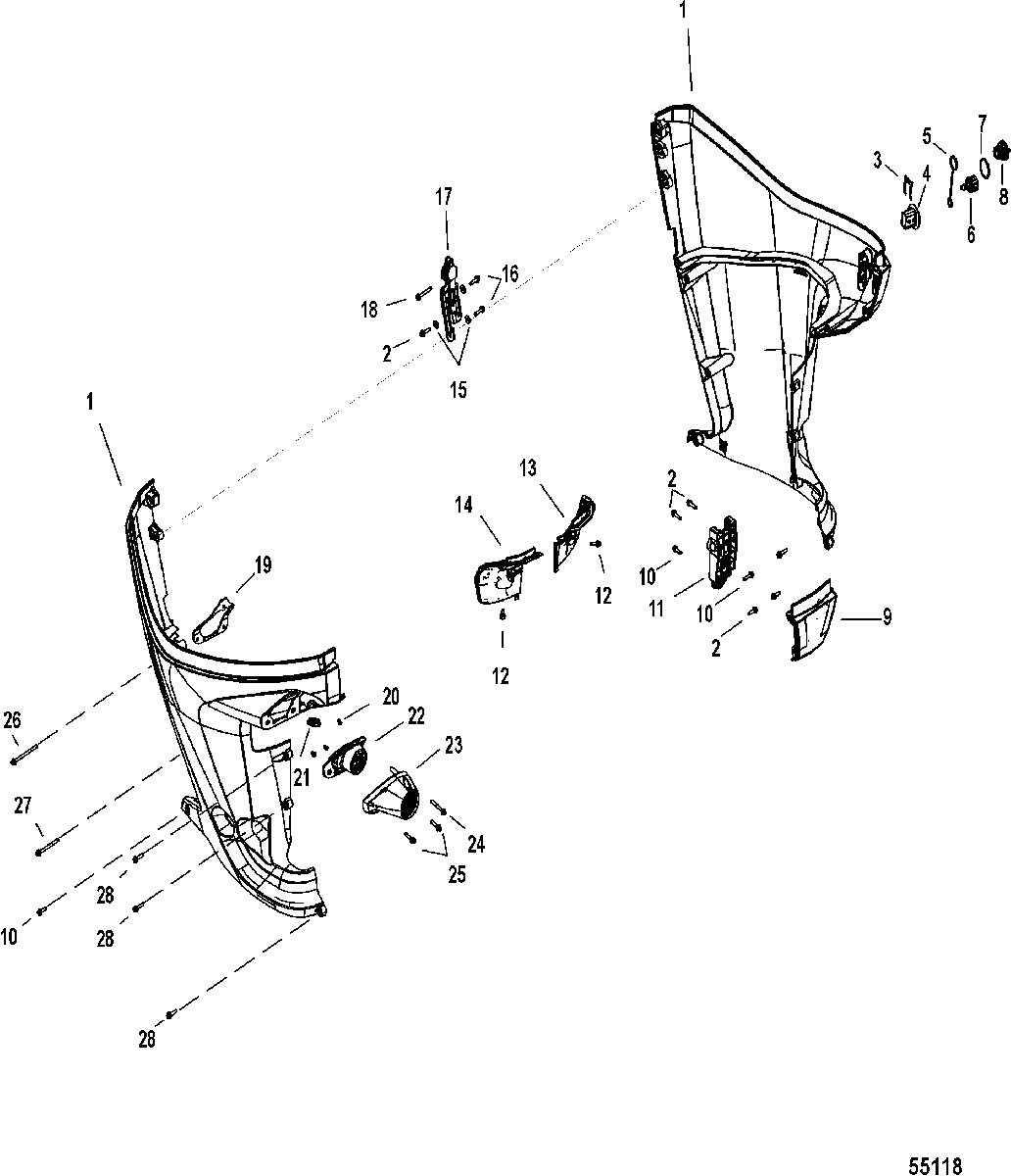

Lower Cowl для Mariner - 115 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
1100-8M0135963 CHAP ASSEMBLY, PORT AND STBDCHAP ASSEMBLY, PORT AND STBD
-
210-8M0022324 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
38M0032848 RETAINERRETAINER
-
487-8M0037225 TRIM SWITCH, Round BezelTRIM SWITCH, Round Bezel
-
5889823001 TETHERTETHER
-
622-885361A01 FITTING ASSEMBLY, FlushFITTING ASSEMBLY, Flush
-
78M0047301 SEAL, Flush Plug PocketSEAL, Flush Plug Pocket
-
822-888958001 PLUGPLUG
-
9100-8M0088281 LOWER COWL ASSEMBLY, FRONTLOWER COWL ASSEMBLY, FRONT
-
1010-8M0073002 SCREW - M6 X 20, HEX FLGSCREW - M6 X 20, HEX FLG
-
118M0055211 RETAINER - TOP COWL LATCHRETAINER - TOP COWL LATCH
-
1210-892073002 SHOULDER SCREW, (M6)SHOULDER SCREW, (M6)
-
138M0055216 COVER, UPPER MOUNT - STBDCOVER, UPPER MOUNT - STBD
-
148M0055214 COVER, UPPER MOUNT - PORTCOVER, UPPER MOUNT - PORT
-
1512-4002316 WASHERWASHER
-
1610-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
178M0055154 STRIKER ASSEMBLYSTRIKER ASSEMBLY
-
1810-8M0103810 SCREW, (M6 x 45 MM) Stainless SteelSCREW, (M6 x 45 MM) Stainless Steel
-
198M0055202 PLATE, INGRESS MOUNTINGPLATE, INGRESS MOUNTING
-
2010-8M0047718 SCREW, (M5 X 8MM)SCREW, (M5 X 8MM)
-
2125-8M0073102 GROMMET, TRIM SENSOR WIRESGROMMET, TRIM SENSOR WIRES
-
228M0055208 GROMMET, INGRESSGROMMET, INGRESS
-
238M0055209 ADAPTOR, RIG HOSEADAPTOR, RIG HOSE
-
2410-8M0075736 SCREW, (M6 X 50) HEX FLGSCREW, (M6 X 50) HEX FLG
-
2510-8M0075735 SCREW , (M6 X 30) HEX FLGSCREW , (M6 X 30) HEX FLG
-
2610-8M0071078 SCREW, (M6 X 85) HEX FLGSCREW, (M6 X 85) HEX FLG
-
2710-8M0030817 SCREW, (M6 X 70) HEX FLGSCREW, (M6 X 70) HEX FLG
-
2810-8M0022324 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
