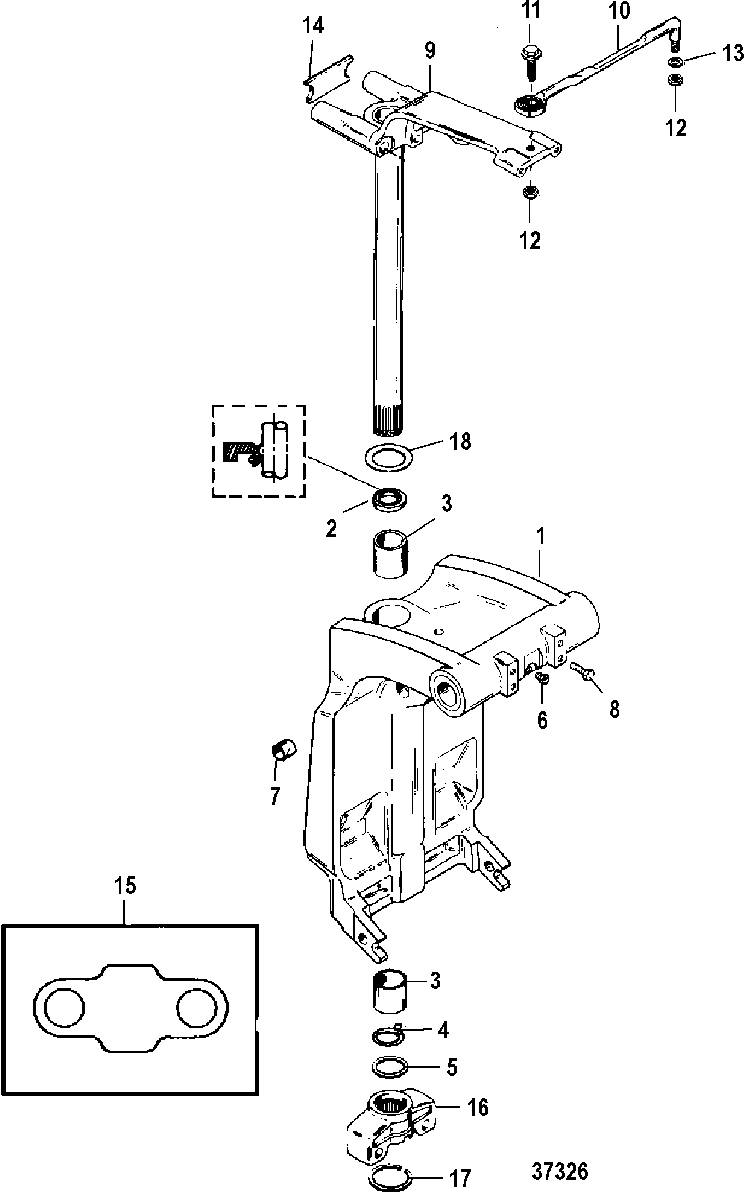

SWIVEL BRACKET AND STEERING ARM для Mariner - 125 (4 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
11400-8M0107419 SWIVEL BRACKET ASSEMBLY
(BLACK)SWIVEL BRACKET ASSEMBLY
(BLACK) -
13408-818904T2 SWIVEL BRACKET ASSEMBLY
(GRAY)SWIVEL BRACKET ASSEMBLY
(GRAY) -
13408-818904T4 SWIVEL BRACKET ASSEMBLY
(TRACKER-GRAPHITE GRAY)SWIVEL BRACKET ASSEMBLY
(TRACKER-GRAPHITE GRAY) -
226-87735 SEAL, Oil (LOWER)SEAL, Oil (LOWER)
-
323-818764 BUSHINGBUSHING
-
425-33504 O-RINGO-RING
-
523-816039 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
810-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
999661A35 SWIVEL PIN ASSEMBLY
(BLACK)SWIVEL PIN ASSEMBLY
(BLACK) -
999661A35 SWIVEL PIN ASSEMBLY
(GRAY)SWIVEL PIN ASSEMBLY
(GRAY) -
999661A35 SWIVEL PIN ASSEMBLY
(TRACKER-GRAPHITE GRAY)SWIVEL PIN ASSEMBLY
(TRACKER-GRAPHITE GRAY) -
1092876A12 LINK ASSEMBLY, SteeringLINK ASSEMBLY, Steering
-
1110-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
1211-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
1312-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
148M0000516 BUMPER
(X-LONG)BUMPER
(X-LONG) -
1511288001 BUMPER, Bottom Yoke
(X-LONG)BUMPER, Bottom Yoke
(X-LONG) -
1642961A06 YOKE ASSEMBLY, Bottom
(BLACK)YOKE ASSEMBLY, Bottom
(BLACK) -
1642961A06 YOKE ASSEMBLY, Bottom
(GRAY)YOKE ASSEMBLY, Bottom
(GRAY) -
1642961A5 YOKE ASSEMBLY, Bottom
(TRACKER-GRAPHITE GRAY)YOKE ASSEMBLY, Bottom
(TRACKER-GRAPHITE GRAY) -
1753-67684 RING, RetainingRING, Retaining
-
1812-816432 THRUST WASHERTHRUST WASHER
