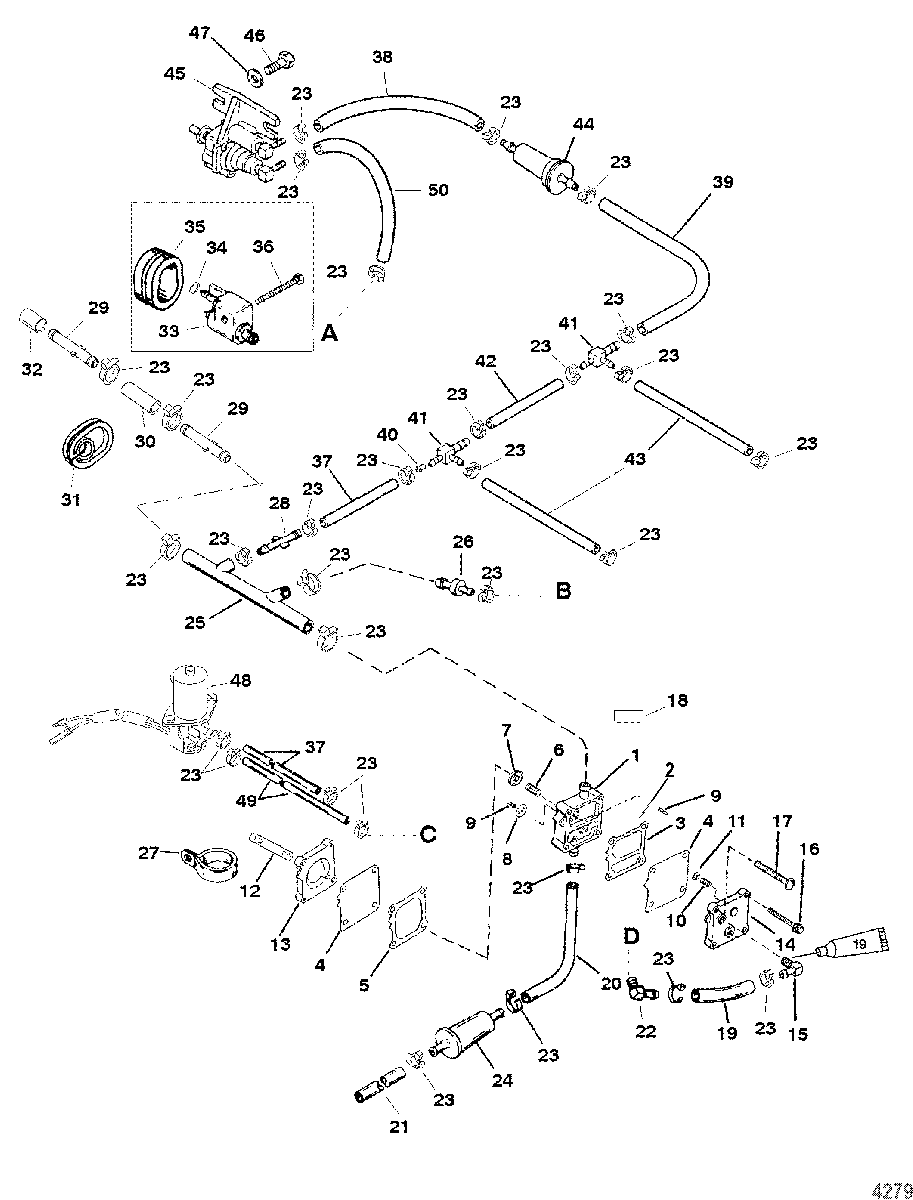

Fuel Pump для Mariner - 125 (4 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
4NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
5NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
6NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
7NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
8NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
9NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
10NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
11NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
1227-987691 GASKETGASKET
-
13144303 BASEBASE
-
14987752 PLATEPLATE
-
1522-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
1610-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1710-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
18NSS NOT SOLD SEPARATE, DecalNOT SOLD SEPARATE, Decal
-
1932-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
(Cut to 4 Inches)TUBING, (.312) (70.00 Inches Bulk)
(Cut to 4 Inches) -
2032-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
(Cut to 8.5 Inches)TUBING, (.312) (70.00 Inches Bulk)
(Cut to 8.5 Inches) -
2132-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
(Cut to 2 Inches)TUBING, (.312) (70.00 Inches Bulk)
(Cut to 2 Inches) -
2222-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
2354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2369355 TIE STRAP, (5.50 Inches)TIE STRAP, (5.50 Inches)
-
2435-816296Q2 FILTER, FuelFILTER, Fuel
-
2532-822554 MOLDED HOSEMOLDED HOSE
-
2622-8189941 CHECK VALVECHECK VALVE
-
2754-188871 CLAMPCLAMP
-
2822-822771 CONNECTORCONNECTOR
-
2922-822769 CONNECTOR
SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499CONNECTOR
SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499 -
3032-85682257 TUBING, (26.00 Inches Bulk)
(Cut to 4 Inch Length) SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499TUBING, (26.00 Inches Bulk)
(Cut to 4 Inch Length) SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499 -
3125-145093 GROMMET
SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499GROMMET
SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499 -
32NSS NOT SOLD SEPARATE, Plug
SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499NOT SOLD SEPARATE, Plug
SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499 -
3322-816856Q3 CONNECTOR ASSEMBLY, Fuel
SN# USA-0G960499/BEL-0P059777 & BelowCONNECTOR ASSEMBLY, Fuel
SN# USA-0G960499/BEL-0P059777 & Below -
3425-16524 O-RING, Fuel Connector
SN# USA-0G960499/BEL-0P059777 & BelowO-RING, Fuel Connector
SN# USA-0G960499/BEL-0P059777 & Below -
3525-145091 GROMMET
SN# USA-0G960499/BEL-0P059777 & BelowGROMMET
SN# USA-0G960499/BEL-0P059777 & Below -
3610-4010635 SCREW, (M6 x 35) Stainless Steel
SN# USA-0G960499/BEL-0P059777 & BelowSCREW, (M6 x 35) Stainless Steel
SN# USA-0G960499/BEL-0P059777 & Below -
3732-1430165 TUBING, (38.00 Inches Bulk)
(Cut to 15 Inch Length)TUBING, (38.00 Inches Bulk)
(Cut to 15 Inch Length) -
3832-1430165 TUBING, (38.00 Inches Bulk)
(Cut to 13 Inch Length)TUBING, (38.00 Inches Bulk)
(Cut to 13 Inch Length) -
3932-1430165 TUBING, (38.00 Inches Bulk)
(Cut to 1.25 Inch Length)TUBING, (38.00 Inches Bulk)
(Cut to 1.25 Inch Length) -
4019-17608 FLOW RESTRICTORFLOW RESTRICTOR
-
4122-830570 FITTING, TeeFITTING, Tee
-
4232-892024122 TUBING, (20.00 Feet Bulk)
(Cut to 4.50 Inch Length)TUBING, (20.00 Feet Bulk)
(Cut to 4.50 Inch Length) -
4332-892024122 TUBING, (20.00 Feet Bulk)
(Cut to 2.50 Inch Length)TUBING, (20.00 Feet Bulk)
(Cut to 2.50 Inch Length) -
4435-8M0042285 FILTERFILTER
-
4514687A4 PUMP ASSEMBLY, Accelerator (REPAIR KIT 1395-811287)PUMP ASSEMBLY, Accelerator (REPAIR KIT 1395-811287)
-
4610-4009416 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4712-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
4889-819503A1 SOLENOID ASSEMBLY, Enrichner ValveSOLENOID ASSEMBLY, Enrichner Valve
-
4932-9912688 TUBING, (36.00 Inches Bulk)
(Cut to 11.50 Inch Length)TUBING, (36.00 Inches Bulk)
(Cut to 11.50 Inch Length) -
5032-9912688 TUBING, (36.00 Inches Bulk)
(Cut to 5.25 Inch Length)TUBING, (36.00 Inches Bulk)
(Cut to 5.25 Inch Length) -
-27-13461A99 GASKET SETGASKET SET
-
-17791R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
