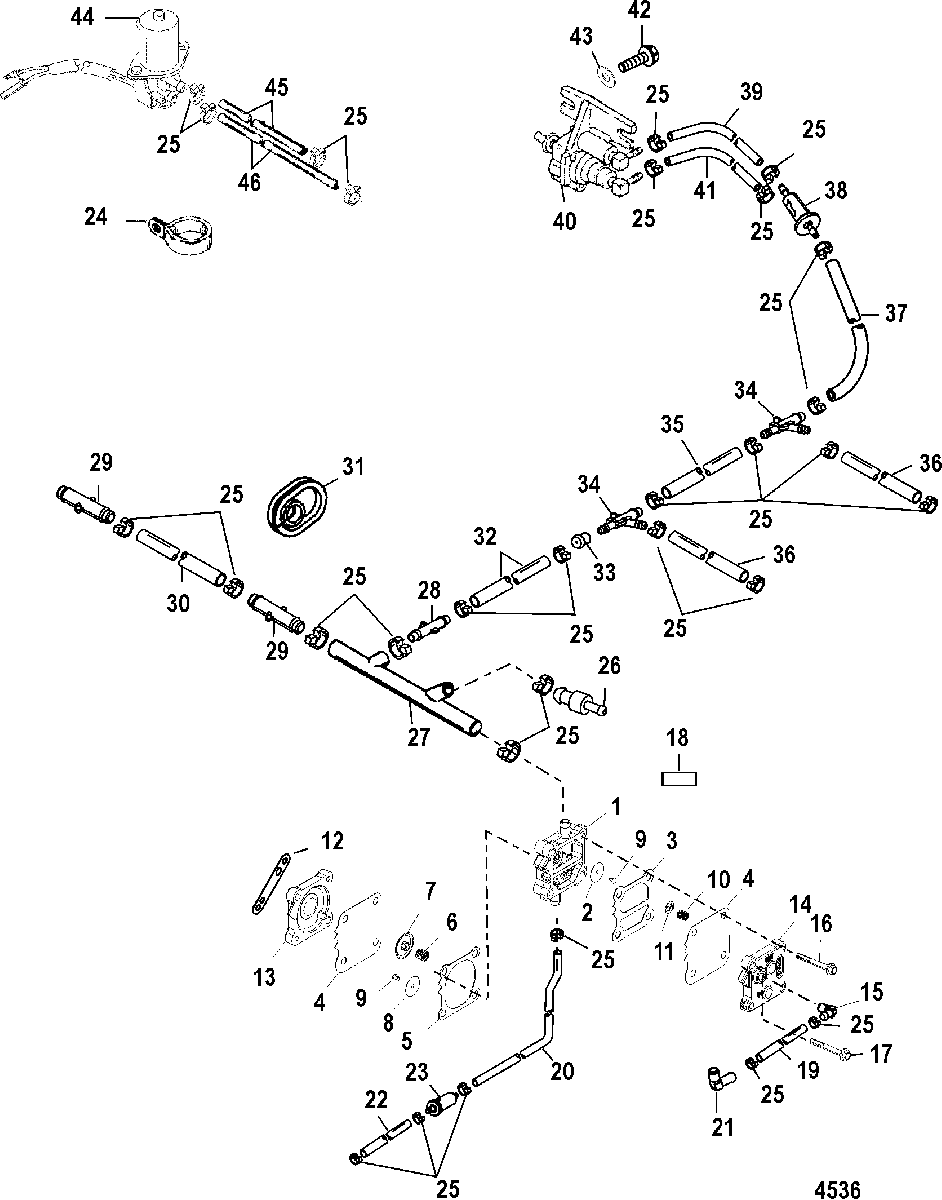

Fuel Pump для Mariner - 125 (4 CYL.) 0T980000 THRU 0T999999
-
№АртикулНазвание
-
114360A78 PUMP KIT, FuelPUMP KIT, Fuel
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
4NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
5NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
6NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
7NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
8NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
9NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
10NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
11NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
1227-987691 GASKETGASKET
-
13144303 BASEBASE
-
14987752 PLATEPLATE
-
1522-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
1610-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1710-82130050 SCREW, (M6 x 50), Pump To BlockSCREW, (M6 x 50), Pump To Block
-
18NSS NOT SOLD SEPARATE, Decal-Assembled in MexicoNOT SOLD SEPARATE, Decal-Assembled in Mexico
-
1932-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 4.00 Inch Length)TUBING, (.312) (70.00 Inches Bulk) (Cut to 4.00 Inch Length)
-
2032-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 8.50 Inch Length)TUBING, (.312) (70.00 Inches Bulk) (Cut to 8.50 Inch Length)
-
2122-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (To Crankcase)FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (To Crankcase)
-
2232-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 2.00 Inch Length)TUBING, (.312) (70.00 Inches Bulk) (Cut to 2.00 Inch Length)
-
2335-816296Q2 FILTER, FuelFILTER, Fuel
-
2454-188871 CLAMPCLAMP
-
2554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2569355 TIE STRAP, (5.50 Inches)TIE STRAP, (5.50 Inches)
-
2622-8189941 CHECK VALVE (To Oil Pump)CHECK VALVE (To Oil Pump)
-
2732-822554 MOLDED HOSEMOLDED HOSE
-
2822-822771 CONNECTORCONNECTOR
-
2922-822769 CONNECTORCONNECTOR
-
3032-85682257 TUBING, (26.00 Inches Bulk) (Cut to 4.00 Inch Length)TUBING, (26.00 Inches Bulk) (Cut to 4.00 Inch Length)
-
3125-145093 GROMMETGROMMET
-
3232-1430165 TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inch Length)TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inch Length)
-
3319-17608 FLOW RESTRICTORFLOW RESTRICTOR
-
3422-830570 FITTING, TeeFITTING, Tee
-
3532-892024122 TUBING, (240.00 Inches Bulk) (Cut to 4.50 Inch Length)TUBING, (240.00 Inches Bulk) (Cut to 4.50 Inch Length)
-
3632-892024122 TUBING, (240.00 Inches Bulk) (Cut to 2.50 Inch Length)TUBING, (240.00 Inches Bulk) (Cut to 2.50 Inch Length)
-
3732-1430165 TUBING, (38.00 Inches Bulk) (Cut to 1.25 Inch Length)TUBING, (38.00 Inches Bulk) (Cut to 1.25 Inch Length)
-
3835-8M0042285 FILTERFILTER
-
3932-1430165 TUBING, (38.00 Inches Bulk) (Cut to 13.00 Inch Length)TUBING, (38.00 Inches Bulk) (Cut to 13.00 Inch Length)
-
4014687A4 PUMP ASSEMBLY, AcceleratorPUMP ASSEMBLY, Accelerator
-
4132-9912688 TUBING, (36.00 Inches Bulk) (Cut to 5.25 Inch Length) (To Lower Tee)TUBING, (36.00 Inches Bulk) (Cut to 5.25 Inch Length) (To Lower Tee)
-
4210-4009416 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4312-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
4489-819503A1 SOLENOID ASSEMBLY, Enrichner ValveSOLENOID ASSEMBLY, Enrichner Valve
-
4532-1430165 TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inch Length)TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inch Length)
-
4632-9912688 TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inch Length) (To Upper Tee)TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inch Length) (To Upper Tee)
-
-27-13461A99 GASKET SETGASKET SET
-
-17791R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
