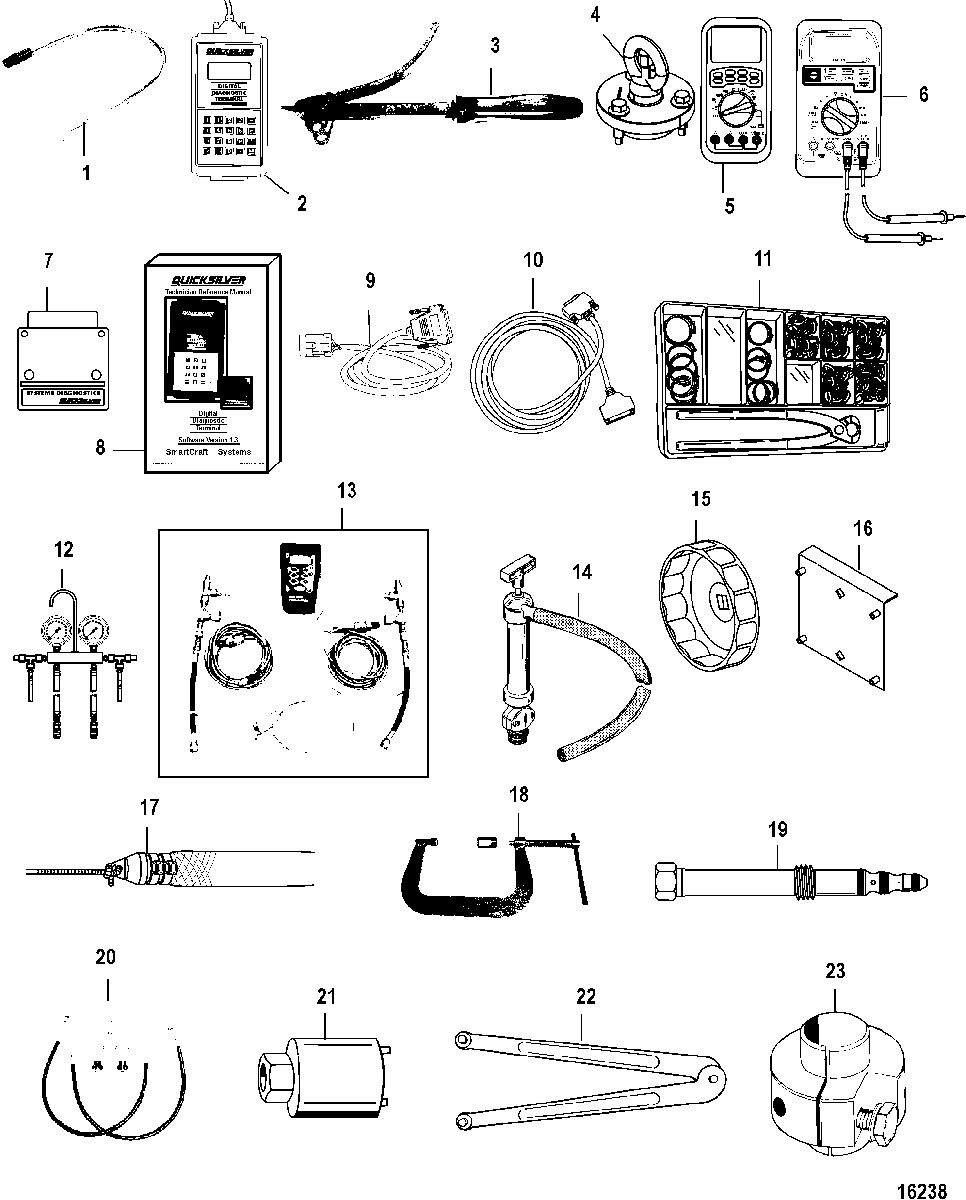

Tools для Mariner - 135 VERADO (4-STROKE)(4 CYL.) 1B227000 THRU 1B381711
-
№АртикулНазвание
-
164-826525A1 FILLER KIT, Steering HelmFILLER KIT, Steering Helm
-
291-823686A2 DIGITAL DIAGNOSTIC TESTERDIGITAL DIAGNOSTIC TESTER
-
391-52344 HOLDER TOOLHOLDER TOOL
-
491-895343T02 TOOL, Flywheel PullerTOOL, Flywheel Puller
-
-10-895346 BOLTBOLT
-
591-892647A01 MULTI-METER KIT, DMT 2004MULTI-METER KIT, DMT 2004
-
691-892647A01 MULTI-METER KIT, DMT 2004MULTI-METER KIT, DMT 2004
-
791-880118A04 DDT CARTRIDGEDDT CARTRIDGE
-
890-881204003 TECHNICAL MANUAL, Digital Terminal ReferenceTECHNICAL MANUAL, Digital Terminal Reference
-
984-822560A13 HARNESS ASSEMBLY, Diagnostic TesterHARNESS ASSEMBLY, Diagnostic Tester
-
1084-825003A1 CABLE ASSEMBLY, DDTCABLE ASSEMBLY, DDT
-
1191-803146A04 CLAMP TOOL KITCLAMP TOOL KIT
-
1291-881834A1 GAUGEGAUGE
-
1391-892651A01 PRESSURE METER, DigitalPRESSURE METER, Digital
-
1490265A5 PUMP ASSEMBLY, Crankcase OilPUMP ASSEMBLY, Crankcase Oil
-
1691-98234A2 DRILL FIXTURE KIT, TransomDRILL FIXTURE KIT, Transom
-
17888462A1 PULLER ASSEMBLY, CablePULLER ASSEMBLY, Cable
-
1891-809494A1 COMPRESSOR TOOL, Valve SpringCOMPRESSOR TOOL, Valve Spring
-
1991-822778A2 UP PRESSURE KITUP PRESSURE KIT
-
1991-822778A3 DOWN PRESSURE KITDOWN PRESSURE KIT
-
2091-52915A6 TEST GAUGE KITTEST GAUGE KIT
-
2191-44487T1 REMOVER TOOL, Trim Rod GuideREMOVER TOOL, Trim Rod Guide
-
2291-74951 SPANNER WRENCHSPANNER WRENCH
-
2391-44486A1 REMOVAL TOOL, Trim RodREMOVAL TOOL, Trim Rod
-
-91-881833A03 GAUGE KIT, Air/Fuel PressureGAUGE KIT, Air/Fuel Pressure
