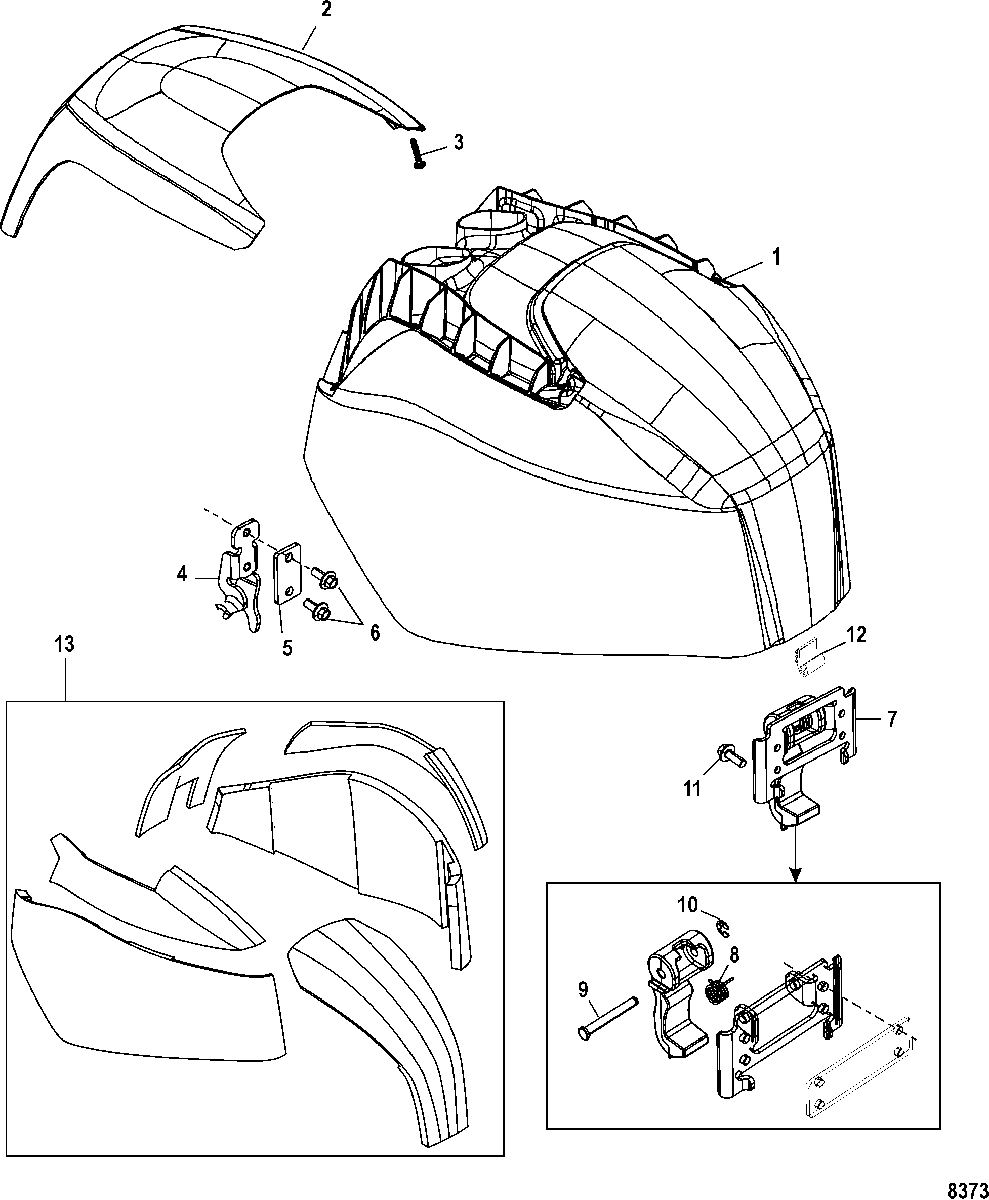

Top Cowl для Mariner - 135 VERADO (4-STROKE)(4 CYL.) 1B381712 THRU 1B517158
-
№АртикулНазвание
-
1100-8M0113898 TOP COWL ASSEMBLY, MercuryTOP COWL ASSEMBLY, Mercury
-
1100-8M0113901 TOP COWL ASSEMBLY, MarinerTOP COWL ASSEMBLY, Mariner
-
2895845T CAP, Air Dam
(Mercury)CAP, Air Dam
(Mercury) -
2895845T01 CAP, Air Dam
(Mariner)CAP, Air Dam
(Mariner) -
310-888950020 SCREW, (M4 x 20 mm)SCREW, (M4 x 20 mm)
-
4896959 HOOKHOOK
-
5897444002 BRACKET, SupportBRACKET, Support
-
610-82130014 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
7897437T03 LATCH ASSEMBLY, FrontLATCH ASSEMBLY, Front
-
824-8M0109644 SPRINGSPRING
-
917-897441 PIN, ClevisPIN, Clevis
-
1053-27290 RING, RetainingRING, Retaining
-
1110-82130014 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
12896997001 SEAL, (2425.75 mm)SEAL, (2425.75 mm)
-
138M4501659 SOUND BLANKET KITSOUND BLANKET KIT
-
-37-8M0102449 DECAL SET, (Generic)
(Mercury)DECAL SET, (Generic)
(Mercury) -
-37-892870A06 DECAL SET, (Generic)
(Mariner)DECAL SET, (Generic)
(Mariner) -
-37-8M0024863 DECAL SET, Port And Starboard
(Mercury)DECAL SET, Port And Starboard
(Mercury) -
-37-892870A01 DECAL SET, Port And Starboard
(Mariner)DECAL SET, Port And Starboard
(Mariner) -
-37-8M0061182 DECAL, Horsepower (135), Rear
(Mercury 135)DECAL, Horsepower (135), Rear
(Mercury 135) -
-37-892870003 DECAL, Rear, Rear
(Mariner 135)DECAL, Rear, Rear
(Mariner 135) -
-37-8M0115001 DECAL, Horsepower (150), Rear
(Mercury 150)DECAL, Horsepower (150), Rear
(Mercury 150) -
-37-892870004 DECAL, Rear, Rear
(Mariner 150)DECAL, Rear, Rear
(Mariner 150) -
-37-8M0115001 DECAL, Horsepower (175), Rear
(Mercury 175)DECAL, Horsepower (175), Rear
(Mercury 175) -
-37-892870005 DECAL, Rear, Rear
(Mariner 175)DECAL, Rear, Rear
(Mariner 175)
