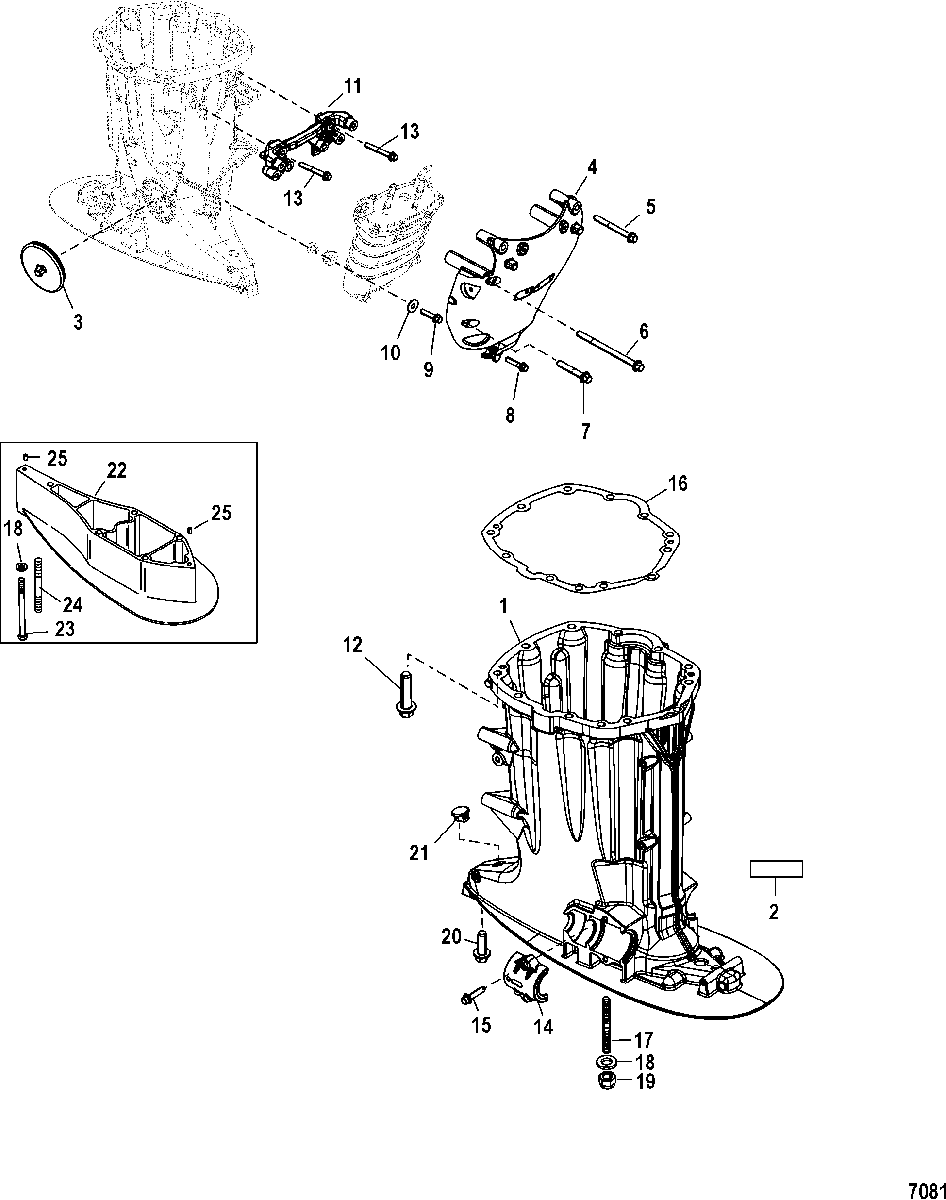

Driveshaft Housing для Mariner - 135 VERADO (4-STROKE)(4 CYL.) 1B517159 & Up
-
№АртикулНазвание
-
11500-895305T01 HOUSING, DriveshaftHOUSING, Driveshaft
-
2NSS NOT SOLD SEPARATE, Decal-Oil DrainNOT SOLD SEPARATE, Decal-Oil Drain
-
325-889568001 GROMMETGROMMET
-
4889656T01 SHROUDSHROUD
-
510-8M0103818 SCREW, (M8 x 75)SCREW, (M8 x 75)
-
610-8M0103812 SCREW, (M8 x 120)SCREW, (M8 x 120)
-
710-8M0103816 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
810-8M0103815 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
910-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
1012-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
11896210T BRACKETBRACKET
-
1210-8M0103822 SCREW, (M10 x 40)SCREW, (M10 x 40)
-
1310-8M0103816 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
14896095C01 CLAMP, Lower MountCLAMP, Lower Mount
-
1510-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
1627-895827 GASKETGASKET
-
1716-8M0070951 STUD, (M12 x 52)
(Long)STUD, (M12 x 52)
(Long) -
1812-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
1911-896895 NUT, (M12)NUT, (M12)
-
2010-8M0102995 SCREW, (M12 x 35 MM)
(Long)SCREW, (M12 x 35 MM)
(Long) -
2119-824928001 PLUG, Rubber (Use where Applicable)PLUG, Rubber (Use where Applicable)
-
228M0105088 SPACER
(X-Long)SPACER
(X-Long) -
2310-857137 SCREW, (M12 x 160)
(X-Long)SCREW, (M12 x 160)
(X-Long) -
2416-8M0008047 STUD, (M12 x 179)
(X-Long)STUD, (M12 x 179)
(X-Long) -
2517-43044 PIN, Dowel - Without Hole (.375 x .625)
(X-Long)PIN, Dowel - Without Hole (.375 x .625)
(X-Long)
