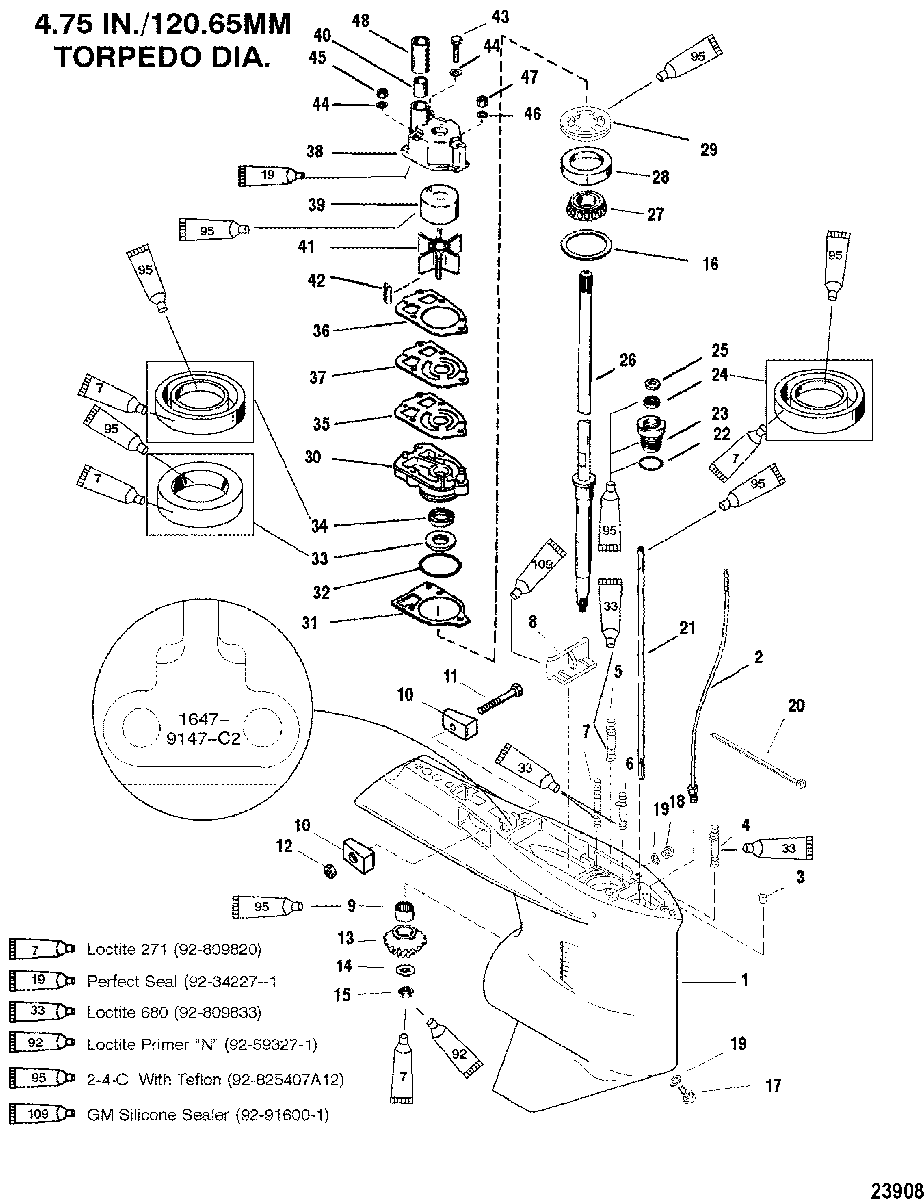

GEAR HOUSING(DRIVESHAFT)(STANDARD/COUNTER ROTATION) для Mariner - 140 JET 0G760300 THRU 0G960499

№

Артикул

Название
1

1647-9148T93 GEAR HOUSING ASSEMBLY, Basic

GEAR HOUSING ASSEMBLY, Basic

159 330 ₽
2

22-85822A10 CONNECTOR ASSEMBLY

CONNECTOR ASSEMBLY

660 ₽
3

17-43044 PIN, Dowel - Without Hole (.375 x .625)

PIN, Dowel - Without Hole (.375 x .625)

200 ₽
4

16-786382 STUD, (.437-14/.437-20 x 3.120)

STUD, (.437-14/.437-20 x 3.120)

560 ₽
4

16-8M0034464 STUD, (.438 x 3.82 Inches)

STUD, (.438 x 3.82 Inches)

1 370 ₽
5

16-8M0133358 STUD, (.437-14/.437-20 x 2.060)

STUD, (.437-14/.437-20 x 2.060)

0 ₽
6

16-8M0034463 STUD, (.312-18/.324-24 x 3.380)

STUD, (.312-18/.324-24 x 3.380)

670 ₽
7

16-306671 STUD, (.250-20/.250-28 x 3.125)

STUD, (.250-20/.250-28 x 3.125)

0 ₽
8

8M0039169 FILLER BLOCK

FILLER BLOCK

3 120 ₽
9

31-42647A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

6 480 ₽
10

97-826134Q ANODE

ANODE

1 120 ₽
11

10-4000333 SCREW, (M6 x 40)

SCREW, (M6 x 40)

290 ₽
12

11-401386 NUT, (M6)

NUT, (M6)

330 ₽
13

43-44101T3 GEAR, Pinion 2:1 - 14 Teeth (Part of 43-828176A2 or 43-828703A1)

GEAR, Pinion 2:1 - 14 Teeth (Part of 43-828176A2 or 43-828703A1)

12 670 ₽
13

NSS NOT SOLD SEPARATE, Pinion Gear (Part of 43-828174A2 or 43-828701A1)
(1.87:1 GEAR RATIO-15TEETH)

NOT SOLD SEPARATE, Pinion Gear (Part of 43-828174A2 or 43-828701A1)
(1.87:1 GEAR RATIO-15TEETH)

0 ₽
14

12-92721 WASHER
(Included With Forward Gear Set)

WASHER
(Included With Forward Gear Set)

120 ₽
15

11-35921 NUT, (.625-18)
(Included With Forward Gear Set)

NUT, (.625-18)
(Included With Forward Gear Set)

1 020 ₽
16

15-8M0063267 SHIM SET
(Included With Forward Gear Set)

SHIM SET
(Included With Forward Gear Set)

2 700 ₽
17

22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain (MAGNETIC)

FITTING KIT, Magnetic, Plug Fill/Drain (MAGNETIC)

1 720 ₽
18

10-79953Q04 SCREW KIT, (.375-16 x .250)

SCREW KIT, (.375-16 x .250)

1 000 ₽
19

12-191833 WASHER, Fiber

WASHER, Fiber

60 ₽
20

56762 TIE STRAP, (4.00 Inches)

TIE STRAP, (4.00 Inches)

30 ₽
21

789022 SHIFT SHAFT

SHIFT SHAFT

9 650 ₽
22

25-25439 O-RING, (.862 x .103)

O-RING, (.862 x .103)

190 ₽
23

23-77631A2 BUSHING ASSEMBLY

BUSHING ASSEMBLY

1 980 ₽
24

26-8164641 SEAL, Oil

SEAL, Oil

670 ₽
25

12-77674 WASHER

WASHER

100 ₽
26

45-897624T DRIVESHAFT
(LONG)

DRIVESHAFT
(LONG)

68 740 ₽
26

45-897625T DRIVESHAFT
(X-LONG)

DRIVESHAFT
(X-LONG)

70 530 ₽
27

31-36387A1 BEARING, Roller

BEARING, Roller

5 340 ₽
28

NSS NOT SOLD SEPARATE, Cup

NOT SOLD SEPARATE, Cup

0 ₽
29

8245191 RETAINER

RETAINER

500 ₽
30

46-8M0077147 BASE ASSEMBLY, Water Pump

BASE ASSEMBLY, Water Pump

4 550 ₽
31

27-426311 GASKET

GASKET

280 ₽
32

25-896523 O-RING, (2.175 x .175)

O-RING, (2.175 x .175)

230 ₽
33

26-89238 SEAL, Oil

SEAL, Oil

3 570 ₽
34

26-16977 SEAL, Oil

SEAL, Oil

1 550 ₽
35

27-8M0090319 GASKET

GASKET

280 ₽
36

27-858524 GASKET

GASKET

260 ₽
37

324351 FACE PLATE

FACE PLATE

650 ₽
38

46-96148T1 BODY ASSEMBLY, Water Pump

BODY ASSEMBLY, Water Pump

6 130 ₽
39

48752T INSERT

INSERT

860 ₽
40

26-38970 SEAL

SEAL

340 ₽
41

47-89984T3 IMPELLER

IMPELLER

3 320 ₽
42

28-8M0032834 KEY

KEY

330 ₽
43

10-96411 SCREW, (#14-8 x 2.25)

SCREW, (#14-8 x 2.25)

210 ₽
44

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel

120 ₽
45

11-8267119 NUT, (.250-28)

NUT, (.250-28)

180 ₽
46

12-36001 WASHER

WASHER

100 ₽
47

11-13436 NUT

NUT

220 ₽
48

23-29804T SLEEVE

SLEEVE

630 ₽
-

27-815791A92 GASKET SET, Engine

GASKET SET, Engine

20 840 ₽
-

46-96148A8 REPAIR KIT, Water Pump

REPAIR KIT, Water Pump

6 860 ₽
-

26-89238A2 SEAL KIT

SEAL KIT

8 330 ₽
