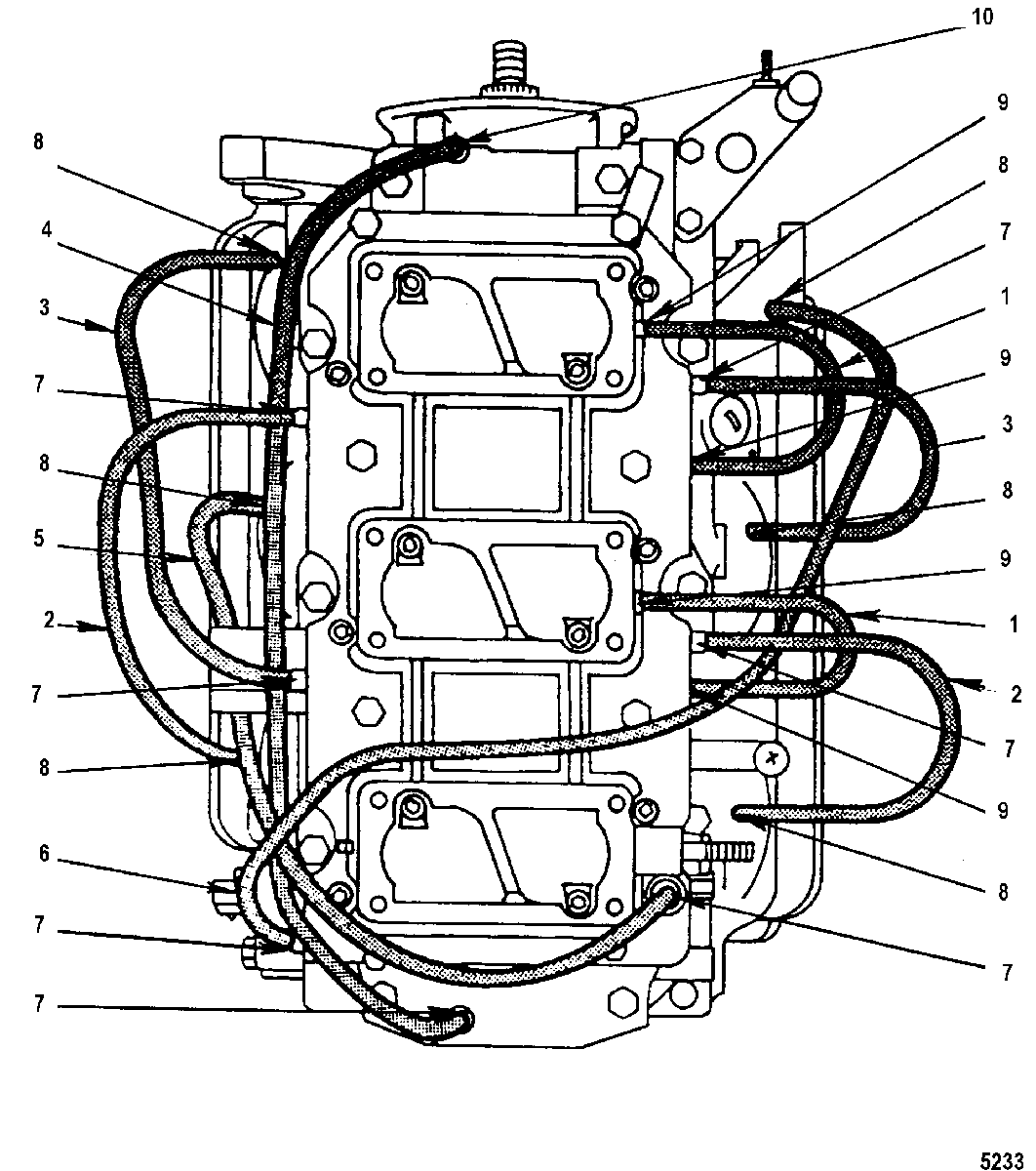

Bleed System для Mariner - 140 JET 0G960500 THRU 0T178499
-
№АртикулНазвание
-
132-892024122 TUBING, (20.00 Feet Bulk) (Cut to 9 Inches)
SN# 0T800999 & BelowTUBING, (20.00 Feet Bulk) (Cut to 9 Inches)
SN# 0T800999 & Below -
132-892024122 TUBING, (240.00 Inches Bulk) (Cut to 9 Inches)
SN# 0T801000 & UpTUBING, (240.00 Inches Bulk) (Cut to 9 Inches)
SN# 0T801000 & Up -
232-892024122 TUBING, (20.00 Feet Bulk) (Cut to 12-1/2 Inches)
SN# 0T800999 & BelowTUBING, (20.00 Feet Bulk) (Cut to 12-1/2 Inches)
SN# 0T800999 & Below -
232-892024122 TUBING, (240.00 Inches Bulk) (Cut to 12-1/2 Inches)
SN# 0T801000 & UpTUBING, (240.00 Inches Bulk) (Cut to 12-1/2 Inches)
SN# 0T801000 & Up -
332-892024122 TUBING, (20.00 Feet Bulk) (Cut to 14 Inches)
SN# 0T800999 & BelowTUBING, (20.00 Feet Bulk) (Cut to 14 Inches)
SN# 0T800999 & Below -
332-892024122 TUBING, (240.00 Inches Bulk) (Cut to 14 Inches)
SN# 0T801000 & UpTUBING, (240.00 Inches Bulk) (Cut to 14 Inches)
SN# 0T801000 & Up -
432-892024122 TUBING, (20.00 Feet Bulk) (Cut to 19 Inches)
SN# 0T800999 & BelowTUBING, (20.00 Feet Bulk) (Cut to 19 Inches)
SN# 0T800999 & Below -
432-892024122 TUBING, (240.00 Inches Bulk) (Cut to 19 Inches)
SN# 0T801000 & UpTUBING, (240.00 Inches Bulk) (Cut to 19 Inches)
SN# 0T801000 & Up -
532-892024122 TUBING, (20.00 Feet Bulk) (Cut to 24 Inches)
SN# 0T800999 & BelowTUBING, (20.00 Feet Bulk) (Cut to 24 Inches)
SN# 0T800999 & Below -
532-892024122 TUBING, (240.00 Inches Bulk) (Cut to 24 Inches)
SN# 0T801000 & UpTUBING, (240.00 Inches Bulk) (Cut to 24 Inches)
SN# 0T801000 & Up -
632-892024122 TUBING, (20.00 Feet Bulk) (Cut to 27 Inches)
SN# 0T800999 & BelowTUBING, (20.00 Feet Bulk) (Cut to 27 Inches)
SN# 0T800999 & Below -
632-892024122 TUBING, (240.00 Inches Bulk) (Cut to 27 Inches)
SN# 0T801000 & UpTUBING, (240.00 Inches Bulk) (Cut to 27 Inches)
SN# 0T801000 & Up -
721-426982 CHECK VALVECHECK VALVE
-
822-822715 FITTING, ElbowFITTING, Elbow
-
922-56759 FITTING, BarbedFITTING, Barbed
-
1021-426233 CHECK VALVECHECK VALVE
-
-812815R97 POWERHEAD ASSEMBLY
(135)POWERHEAD ASSEMBLY
(135) -
-823434R00 POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III)POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III) -
-813043R00 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
