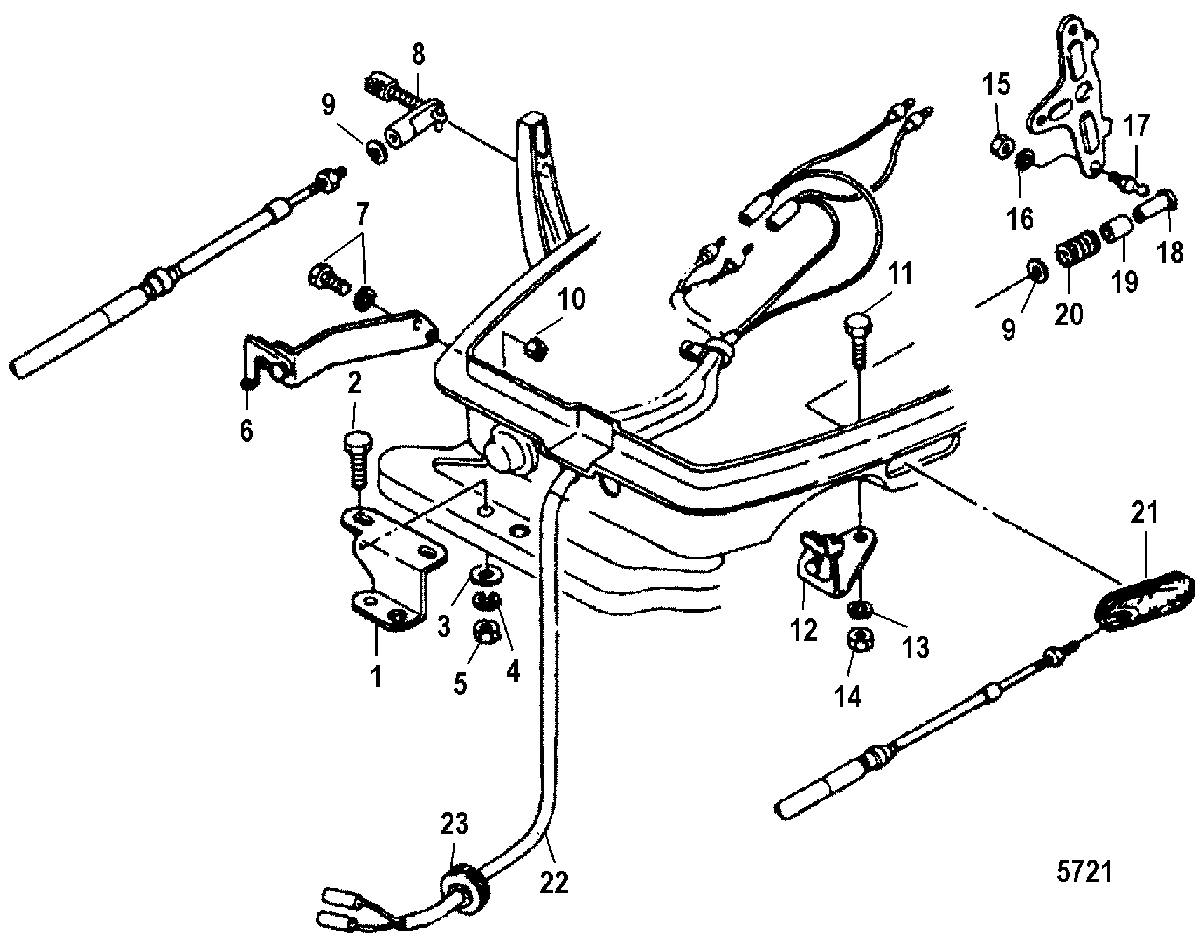

Remote Control Attaching Kit для Mariner - 15 (2 CYL.) (International) 0N001590 THRU 0N055284
-
№АртикулНазвание
-
-803874A1 ATTACHING KIT, Remote ControlATTACHING KIT, Remote Control
-
18538022 PLATE, Steering HookPLATE, Steering Hook
-
210-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
313-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
412-16192 WASHERWASHER
-
511-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
6803877 BRACKETBRACKET
-
710-162233 SCREWSCREW
-
8853804 CONNECTOR SHIFT KITCONNECTOR SHIFT KIT
-
912-17029 WASHERWASHER
-
1011-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1110-898103179 BOLTBOLT
-
12803875 BRACKETBRACKET
-
1313-16079 LOCKWASHERLOCKWASHER
-
1411-16081 NUT, Stainless SteelNUT, Stainless Steel
-
1511-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1613-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
17853801 BALL JOINTBALL JOINT
-
1817026 BRACKETBRACKET
-
1917027 CAPCAP
-
2024-17028 SPRINGSPRING
-
2125-853803 GROMMETGROMMET
-
2284-853799A1 CABLE ASSEMBLY (3.9M)CABLE ASSEMBLY (3.9M)
-
2284-853799A2 CABLE ASSEMBLY (5.9M)CABLE ASSEMBLY (5.9M)
-
2325-162262 GROMMETGROMMET
