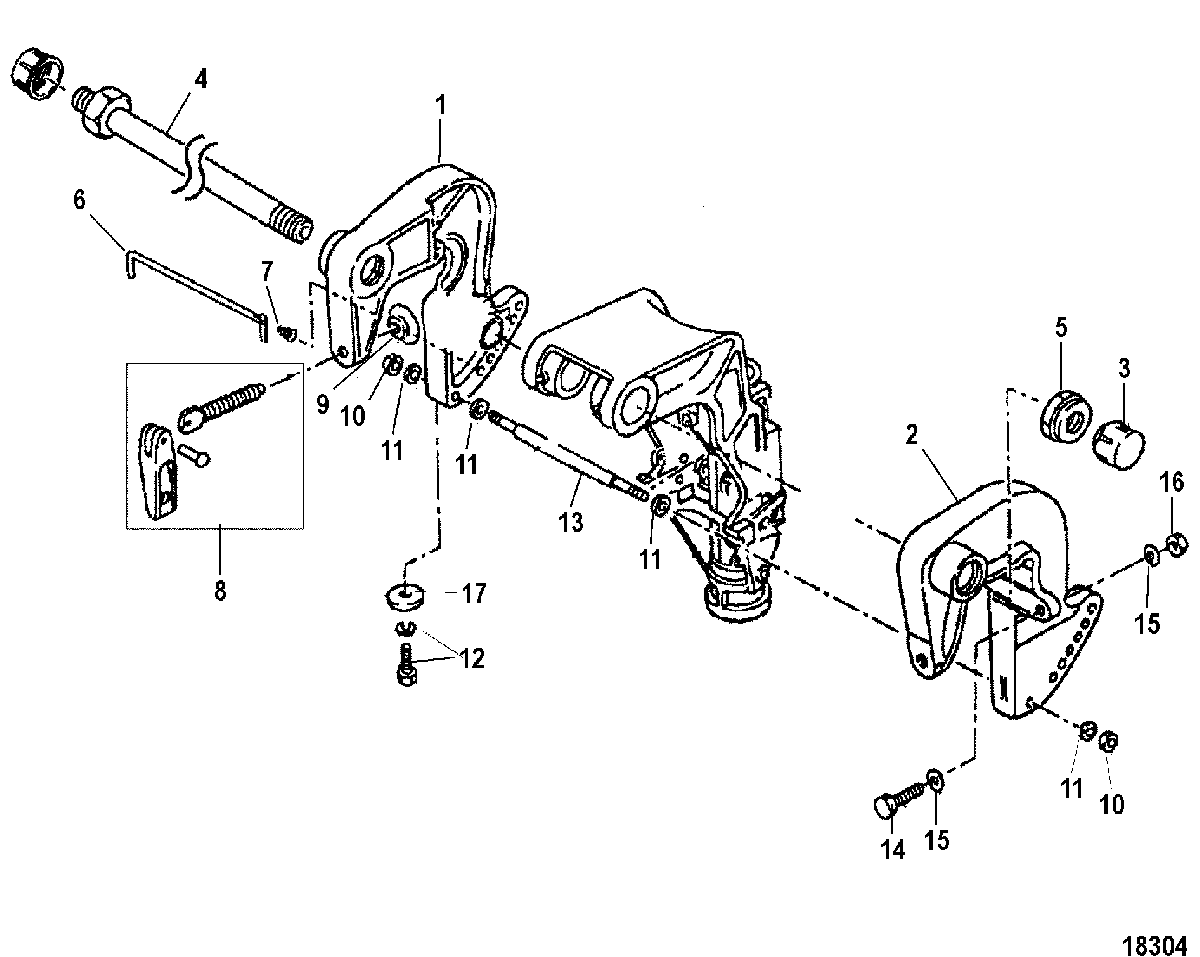

Clamp Bracket для Mariner - 15 (2 CYL.) (International) 0N055285 & Up

№

Артикул

Название
1

8M0059754 CLAMP BRACKET, Starboard
SN# 0N080618 & Below

CLAMP BRACKET, Starboard
SN# 0N080618 & Below

11 340 ₽
1

8M0059754 CLAMP BRACKET, Starboard
SN# 0N080619 & Up

CLAMP BRACKET, Starboard
SN# 0N080619 & Up

11 340 ₽
2

8M0059755 CLAMP BRACKET, Port
SN# 0N080618 & Below

CLAMP BRACKET, Port
SN# 0N080618 & Below

11 000 ₽
2

8M0059755 CLAMP BRACKET, Port
SN# 0N080619 & Up

CLAMP BRACKET, Port
SN# 0N080619 & Up

11 000 ₽
3

11-85372214 CAP NUT

CAP NUT

370 ₽
4

898101191 TILT TUBE

TILT TUBE

9 060 ₽
5

11-853722029 NUT, Nylon

NUT, Nylon

2 160 ₽
6

16198004 THRUST ROD

THRUST ROD

3 700 ₽
7

24-815093003 SPRING

SPRING

340 ₽
8

10-8M0060116 THUMB SCREW ASSEMBLY, 1/2 Inch Thread Size

THUMB SCREW ASSEMBLY, 1/2 Inch Thread Size

7 570 ₽
9

12-95379 PAD

PAD

500 ₽
10

11-853722022 NUT

NUT

120 ₽
11

12-16826 WASHER, Stainless Steel

WASHER, Stainless Steel

110 ₽
12

10-167051 BOLT, (M6 x 20)

BOLT, (M6 x 20)

230 ₽
13

898101938 DISTANCE PIECE
SN# 0N060052 & Below

DISTANCE PIECE
SN# 0N060052 & Below

1 030 ₽
13

898101938 DISTANCE PIECE
SN# 0N060053 & Up

DISTANCE PIECE
SN# 0N060053 & Up

1 030 ₽
14

10-879194310 BOLT

BOLT

250 ₽
15

12-16192 WASHER

WASHER

140 ₽
16

11-879194337 NUT

NUT

100 ₽
17

97-823913Q ANODE

ANODE

1 220 ₽
