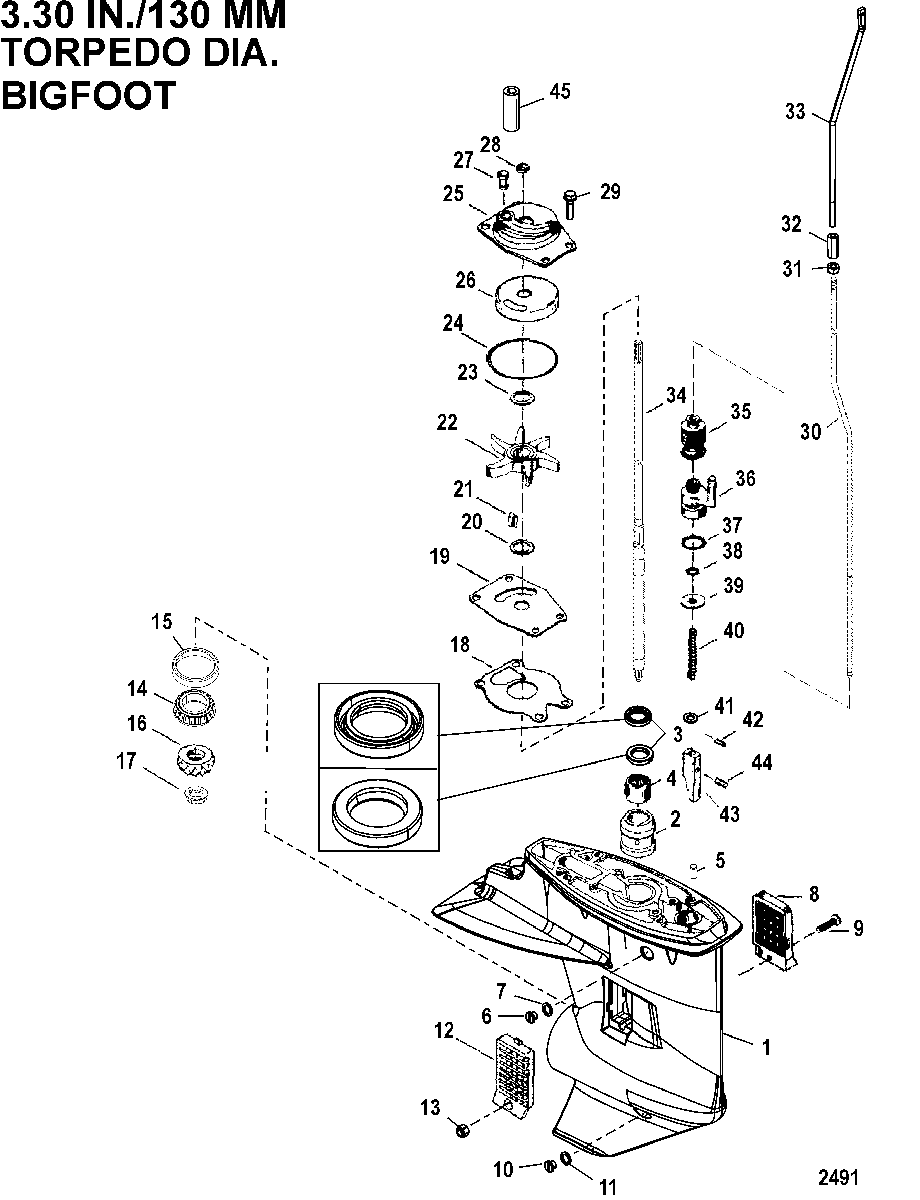

Gear Housing(Driveshaft)(2.42:1 Gear Ratio) для Mariner - 15 (4-STROKE) 0P075166 THRU 0P400999
-
№АртикулНазвание
-
-1665-8669T33 GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
(Long - Black)GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
(Long - Black) -
-1600-8M0084519 GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
(X-Long - Black)GEAR HOUSING ASSEMBLY, Complete (3.30 Inch/130 mm Torpedo Diameter)
(X-Long - Black) -
11600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Black
(Basic - Black)GEAR HOUSING ASSEMBLY, Basic-Black
(Basic - Black) -
2NSS NOT SOLD SEPARATE, SleeveNOT SOLD SEPARATE, Sleeve
-
326-99325 SEALSEAL
-
431-41326 BEARING, RollerBEARING, Roller
-
517-8M0084726 PIN, Dowel (.187 x .530)PIN, Dowel (.187 x .530)
-
610-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
712-191833 SEALSEAL
-
835-41133 SCREEN, Water Inlet PortSCREEN, Water Inlet Port
-
910-40031112 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1010-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
1022-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
SN# USA-0T979999/BEL-0P325499 & BelowFITTING KIT, Magnetic, Plug Fill/Drain
SN# USA-0T979999/BEL-0P325499 & Below -
1022-8M0058389 PLUG KIT, Drain (Magnetic)
SN# USA-0T980000/BEL-0P325500 & UpPLUG KIT, Drain (Magnetic)
SN# USA-0T980000/BEL-0P325500 & Up -
1112-191833 SEALSEAL
-
1235-41134 SCREENSCREEN
-
1311-401365 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
1431-98294A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
15NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1643-854498 GEAR, Pinion - 12-29GEAR, Pinion - 12-29
-
1711-828490 NUTNUT
-
1827-993261 GASKETGASKET
-
1985083 FACE PLATEFACE PLATE
-
2012-866451 WASHERWASHER
-
2128-8M0032838 KEYKEY
-
2247-8508910 IMPELLERIMPELLER
-
2312-866451 WASHERWASHER
-
2425-69202 O-RINGO-RING
-
2546-99157A02 PUMP ASSEMBLY, Water
SN# USA-0T800999/BEL-0P267999 & BelowPUMP ASSEMBLY, Water
SN# USA-0T800999/BEL-0P267999 & Below -
2546-99157A02 PUMP ASSEMBLY, Water
SN# USA-0T801000/BEL-0P268000 & UpPUMP ASSEMBLY, Water
SN# USA-0T801000/BEL-0P268000 & Up -
26NSS NOT SOLD SEPARATE, InsertNOT SOLD SEPARATE, Insert
-
2726-85090001 SEAL
SN# USA-0T979999/BEL-0P325499 & BelowSEAL
SN# USA-0T979999/BEL-0P325499 & Below -
2726-85090001 SEAL
SN# USA-0T980000/BEL-0P325500 & UpSEAL
SN# USA-0T980000/BEL-0P325500 & Up -
2825-86203 O-RINGO-RING
-
2910-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
30854503 SHIFT SHAFT
(Long)SHIFT SHAFT
(Long) -
30854504 SHIFT SHAFT
(X-Long)SHIFT SHAFT
(X-Long) -
3111-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
32822419 COUPLERCOUPLER
-
338529941 SHIFT SHAFT, UpperSHIFT SHAFT, Upper
-
3445-854501 DRIVESHAFT
(Long)DRIVESHAFT
(Long) -
3445-854502 DRIVESHAFT
(X-Long)DRIVESHAFT
(X-Long) -
3585552001 BOOT
SN# USA-0T979999/BEL-0P325499 & BelowBOOT
SN# USA-0T979999/BEL-0P325499 & Below -
3585552001 BOOT
SN# USA-0T980000/BEL-0P325500 & UpBOOT
SN# USA-0T980000/BEL-0P325500 & Up -
3693878 RETAINERRETAINER
-
3725-35276 O-RING, (.734 x .139)O-RING, (.734 x .139)
-
3825-85594 O-RING, (.239 x .174)O-RING, (.239 x .174)
-
3912-85091 WASHERWASHER
-
4024-93007 SPRINGSPRING
-
4112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4217-85593 PIN, (.078 x .437)PIN, (.078 x .437)
-
4385562A2 SHIFT CAMSHIFT CAM
-
4417-85096 PIN, DrivePIN, Drive
-
4523-29804T SLEEVE, Water TubeSLEEVE, Water Tube
-
-26-85090A2 SEAL KITSEAL KIT
-
-46-99157T2 PUMP KIT, WaterPUMP KIT, Water
