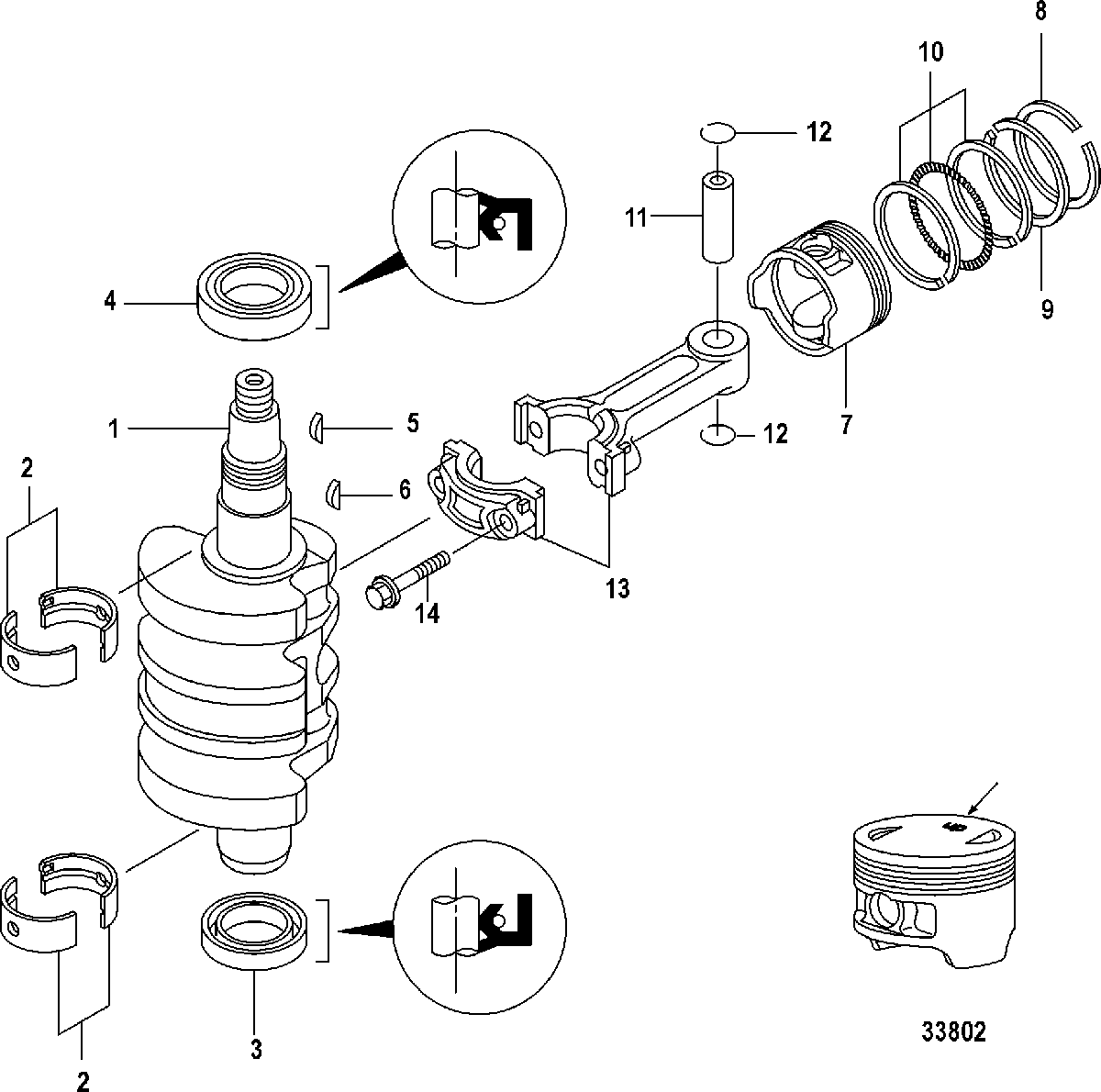

Crankshaft, Pistons and Connecting Rods для Mariner - 15 Carb(2CYL)(4-STROKE) 0R235949 & Up
-
№АртикулНазвание
-
1401-879147T80 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
223-898101T08 BEARING, Thrust - RedBEARING, Thrust - Red
-
223-898101T07 BEARING, Thrust - BlueBEARING, Thrust - Blue
-
326-855681005 SEAL, Oil, LowerSEAL, Oil, Lower
-
426-898103114 SEAL, Oil, UpperSEAL, Oil, Upper
-
528-825666001 KEY, MagnetoKEY, Magneto
-
628-95229 KEY, Drive PulleyKEY, Drive Pulley
-
7713-898103A08 PISTON ASSEMBLYPISTON ASSEMBLY
-
839-898103T35 RING KIT, PistonRING KIT, Piston
-
9NSS NOT SOLD SEPARATE, Piston Ring-SecondNOT SOLD SEPARATE, Piston Ring-Second
-
10NSS NOT SOLD SEPARATE, Piston Ring-OilNOT SOLD SEPARATE, Piston Ring-Oil
-
1141-898103113 PIN, PistonPIN, Piston
-
1253-160573 E RINGE RING
-
13600-8M0124940 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1410-8035092 BOLTBOLT
-
-8M0099416 SHORT BLOCKSHORT BLOCK
-
-27-803663A08 GASKET SET, PowerheadGASKET SET, Powerhead
