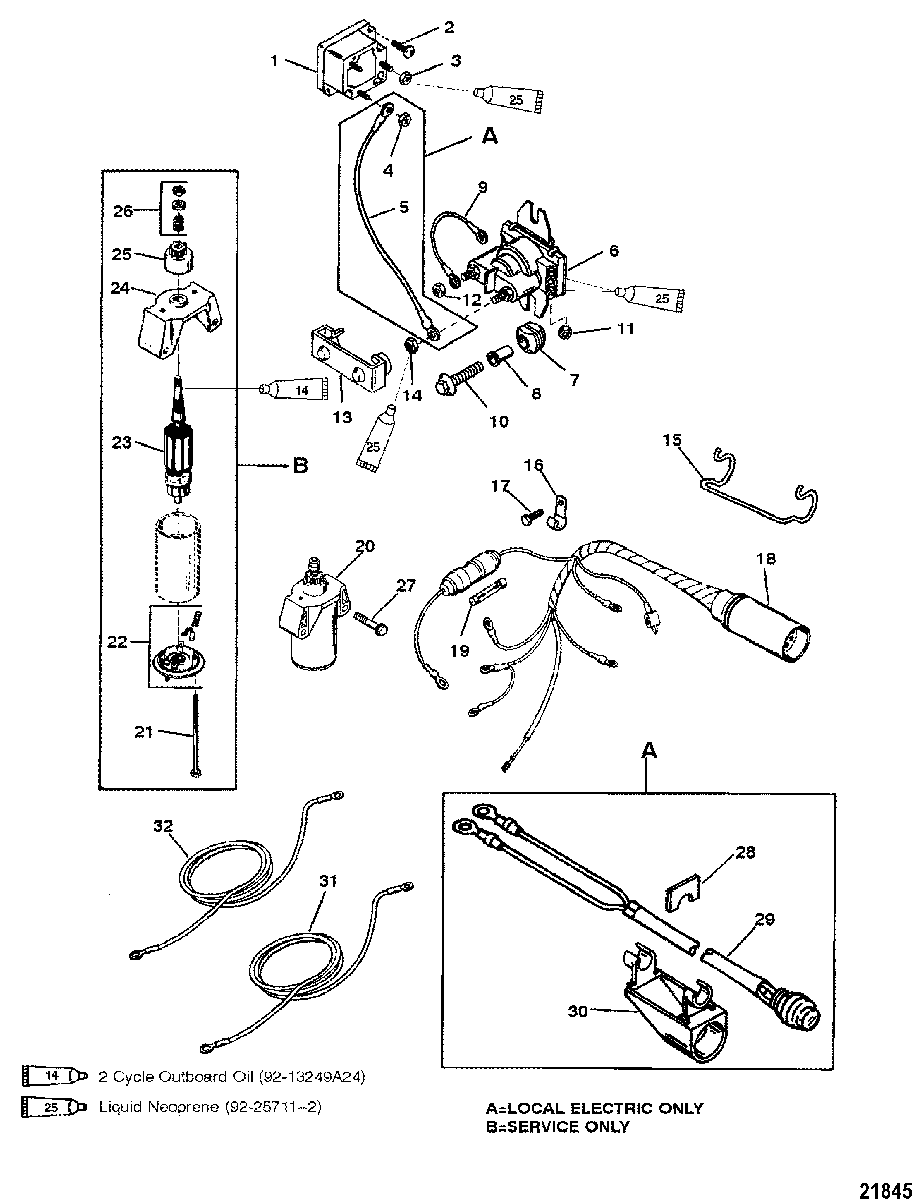

Electric Start Components для Mariner - 15 MARATHON XD 9927000 THRU 0P016999
-
№АртикулНазвание
-
18M0058226 RECTIFIERRECTIFIER
-
210-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
411-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
584-79139A20 CABLE ASSEMBLY (RED)CABLE ASSEMBLY (RED)
-
689-850188T1 SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
723-818968 BUSHINGBUSHING
-
825-818967 GROMMETGROMMET
-
984-88809A5 WIRE ASSEMBLYWIRE ASSEMBLY
-
1010-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1111-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
1211-64015 NUT, (.250-20)NUT, (.250-20)
-
1385-97861 INSULATORINSULATOR
-
1411-64015 NUT, (.250-20)NUT, (.250-20)
-
1592753 RETAINERRETAINER
-
1654-55098 J CLIPJ CLIP
-
1710-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
1884-92436A5 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1988-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2050-8M0033984 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2110-96566 THRU BOLTTHRU BOLT
-
2296564T END CAP (W/BRUSHES)END CAP (W/BRUSHES)
-
2396565 ARMATUREARMATURE
-
2496563T END CAPEND CAP
-
2596562 DRIVEDRIVE
-
2696561 DRIVE KITDRIVE KIT
-
2710-421251 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
28824918 CLIPCLIP
-
2987-823609A6 SWITCH ASSEMBLY, Start/StopSWITCH ASSEMBLY, Start/Stop
-
30889734 HOUSING, SwitchHOUSING, Switch
-
3184-88439A28 CABLE ASSEMBLY, Battery - BlackCABLE ASSEMBLY, Battery - Black
-
3284-88439A27 CABLE ASSEMBLY, Red - BatteryCABLE ASSEMBLY, Red - Battery
