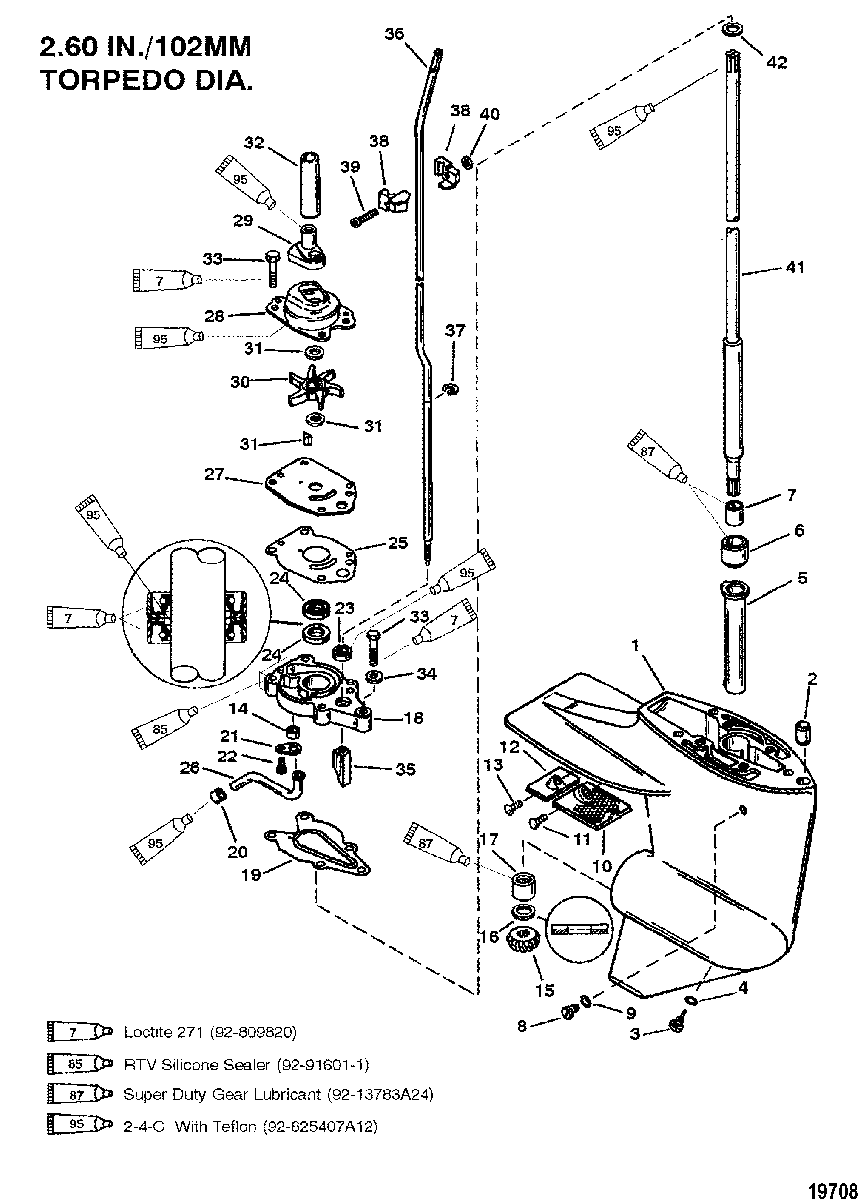

Gear Housing(Driveshaft)(2.00:1 Gear Ratio) для Mariner - 15 9792200 THRU 0P016999
-
№АртикулНазвание
-
-1666-8833T13 GEAR HOUSING ASSEMBLY
(SHORT) BLACKGEAR HOUSING ASSEMBLY
(SHORT) BLACK -
-1666-8833T15 GEAR HOUSING ASSEMBLY
(LONG) BLACKGEAR HOUSING ASSEMBLY
(LONG) BLACK -
-1666-8833T14 GEAR HOUSING ASSEMBLY
(SHORT) GRAYGEAR HOUSING ASSEMBLY
(SHORT) GRAY -
-1666-8833T15 GEAR HOUSING ASSEMBLY
(LONG) GRAYGEAR HOUSING ASSEMBLY
(LONG) GRAY -
-1666-8833T19 GEAR HOUSING ASSEMBLY, Complete
(TRACKER GRAPHITE GRAY)GEAR HOUSING ASSEMBLY, Complete
(TRACKER GRAPHITE GRAY) -
11600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
(BLACK)GEAR HOUSING ASSEMBLY, Basic-Black
(BLACK) -
11600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Gray
(GRAY)GEAR HOUSING ASSEMBLY, Basic-Gray
(GRAY) -
11666-8833A20 GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY)GEAR HOUSING ASSEMBLY
(TRACKER GRAPHITE GRAY) -
223-12009 BUSHING, (.31 x .45 x .50)BUSHING, (.31 x .45 x .50)
-
322-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
412-191833 WASHER, FiberWASHER, Fiber
-
5822244A1 SLEEVE ASSEMBLYSLEEVE ASSEMBLY
-
623-823944 SLEEVESLEEVE
-
723-823943 BUSHINGBUSHING
-
810-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
912-191833 WASHER, FiberWASHER, Fiber
-
1035-421991 SCREENSCREEN
-
1110-13954 SCREW, (.250-14 x .88)SCREW, (.250-14 x .88)
-
1297-42121Q02 ANODE ASSEMBLYANODE ASSEMBLY
-
1310-13954 SCREW, (.250-14 x .88)SCREW, (.250-14 x .88)
-
1426-42133 SEALSEAL
-
1543-8219251 GEAR, Pinion - 13-26 (13 TEETH)GEAR, Pinion - 13-26 (13 TEETH)
-
1612-41369 WASHERWASHER
-
1731-22756 BEARING, RollerBEARING, Roller
-
1846-42040T5 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
1927-192043 GASKETGASKET
-
2026-33613 SEALSEAL
-
2142375 RETAINERRETAINER
-
2210-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2325-822236 QUAD RINGQUAD RING
-
2426-413651 SEAL, OilSEAL, Oil
-
2527-19202001 GASKET, Water Pump PlateGASKET, Water Pump Plate
-
2632-42185A1 TUBE ASSEMBLY, WaterTUBE ASSEMBLY, Water
-
2742200 FACE PLATEFACE PLATE
-
2846-42089A2 COVER ASSEMBLYCOVER ASSEMBLY
-
2926-421021 SEALSEAL
-
3047-42038Q02 IMPELLERIMPELLER
-
3128-42376A2 KEY ASSEMBLYKEY ASSEMBLY
-
32444671 GUIDEGUIDE
-
3310-8248327 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3542039 CAMCAM
-
368M0026064 SHIFT SHAFT
(SHORT)SHIFT SHAFT
(SHORT) -
368M0026065 SHIFT SHAFT
(LONG)SHIFT SHAFT
(LONG) -
3753-42389 E RINGE RING
-
388M0036770 GUIDEGUIDE
-
3910-40011109 SCREW, (M5 x 25) Stainless SteelSCREW, (M5 x 25) Stainless Steel
-
4011-401385 NUT, (M5)NUT, (M5)
-
4145-823389 DRIVESHAFT
(SHORT)DRIVESHAFT
(SHORT) -
4145-823390 DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
4212-822248 THRUST WASHERTHRUST WASHER
-
-26-41365A3 SEAL KITSEAL KIT
-
-46-42089A5 PUMP KIT, WaterPUMP KIT, Water
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
