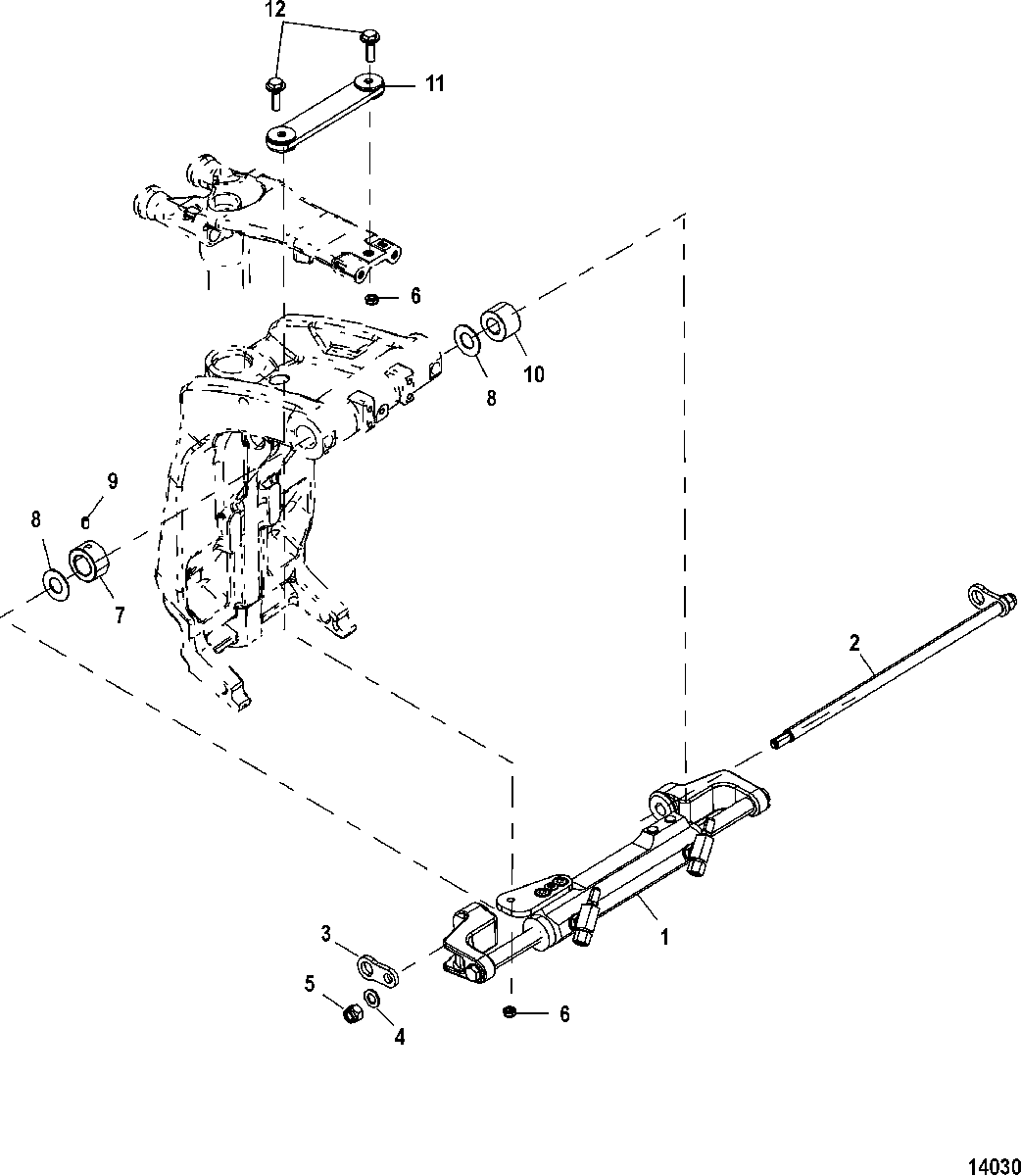

Steering Cylinder Assembly для Mariner - 150 VERADO (4-STROKE)(4 CYL.) 1B227000 THRU 1B381711
-
№АртикулНазвание
-
-898349A11 ACTUATOR ASSEMBLY, Steering - UniversalACTUATOR ASSEMBLY, Steering - Universal
-
1898349A11 ACTUATOR ASSEMBLY, SteeringACTUATOR ASSEMBLY, Steering
-
2898081A01 TIE ROD ASSEMBLYTIE ROD ASSEMBLY
-
3898007001 PLATE, Lifting EyePLATE, Lifting Eye
-
412-898089 WASHER, FlatWASHER, Flat
-
511-898087 NUT, Nylon InsertNUT, Nylon Insert
-
611-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
7898086001 COLLARCOLLAR
-
812-898090 WASHERWASHER
-
910-898088 SET SCREWSET SCREW
-
1023-898067 SPACERSPACER
-
11898082A01 LINK ASSEMBLY, Steering - Straight ArmLINK ASSEMBLY, Steering - Straight Arm
-
1210-875273138 SCREW, (.375-24 x 1.38)SCREW, (.375-24 x 1.38)
