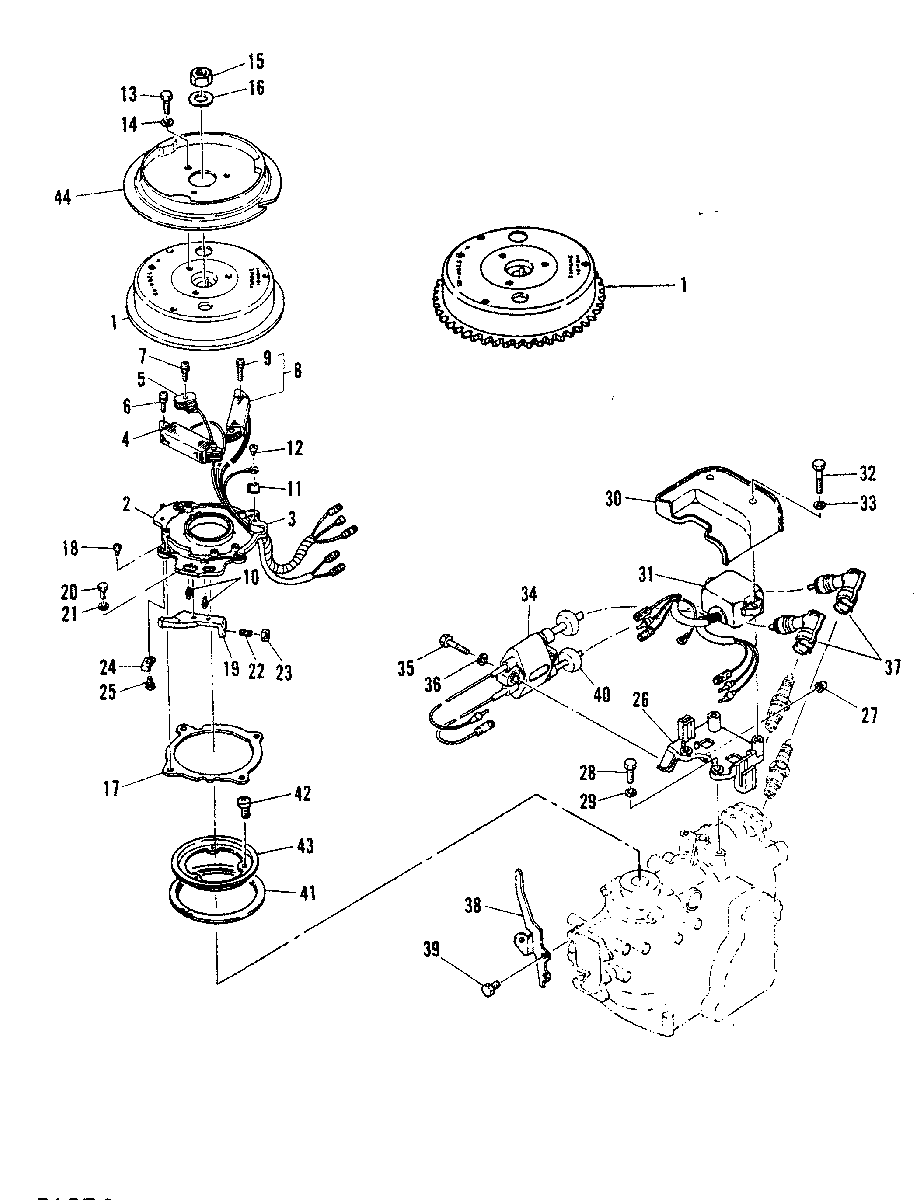

CDI MAGNETO (M-020026 ML-316416 E-251061 EL-551616 & UP) для Mariner - 15C M-684-000101 AND UP
-
№АртикулНазвание
-
1253-8920M FLYWHEEL ASSEMBLY (W/RING GEAR)FLYWHEEL ASSEMBLY (W/RING GEAR)
-
1253-8921M FLYWHEEL ASSEMBLY (W/O RING GEAR)FLYWHEEL ASSEMBLY (W/O RING GEAR)
-
216708M BASEBASE
-
341863M MAGNETO BASEMAGNETO BASE
-
441829T CHARGE COILCHARGE COIL
-
541830M PULSAR COILPULSAR COIL
-
610-96346M SCREWSCREW
-
710-91691M SCREWSCREW
-
8NLA LIGHTING COIL ASSEMBLYLIGHTING COIL ASSEMBLY
-
910-96346M SCREWSCREW
-
1084305M RETAINERRETAINER
-
1154-41867M CLAMPCLAMP
-
1210-82499M SCREWSCREW
-
1310-91772M BOLTBOLT
-
1412-82214M WASHERWASHER
-
1511-81770M NUTNUT
-
1612-81814M WASHERWASHER
-
1741869M PLATEPLATE
-
1810-17661M SCREWSCREW
-
1941268M THROTTLE CAMTHROTTLE CAM
-
2010-84313M BOLTBOLT
-
2112-82211M WASHERWASHER
-
2216-41883M STUDSTUD
-
2311-83763M NUTNUT
-
2484316M STOPSTOP
-
2510-84313M BOLTBOLT
-
2641259M BRACKETBRACKET
-
2741260M DAMPERDAMPER
-
2810-84058M BOLTBOLT
-
2912-82214M WASHERWASHER
-
3041262M COVERCOVER
-
3143077T I. UNIT ASSEMBLYI. UNIT ASSEMBLY
-
3210-83285M BOLTBOLT
-
3312-82213M WASHERWASHER
-
3495188T IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
3510-83285M BOLTBOLT
-
3612-82214M WASHERWASHER
-
3785-815119M PLUG CAP (NOISE SUPPRESSOR)
(M-074083 ML-344581 E-253156 EL-554058 & Up)PLUG CAP (NOISE SUPPRESSOR)
(M-074083 ML-344581 E-253156 EL-554058 & Up) -
3785-815119M PLUG CAP (NOISE SUPPRESSOR)
(M-074082 ML-344580 E-253155 EL-554057 & Below)PLUG CAP (NOISE SUPPRESSOR)
(M-074082 ML-344580 E-253155 EL-554057 & Below) -
3785-63709A1 PLUG CAPPLUG CAP
-
3894547M TIMING PLATETIMING PLATE
-
3910-84211M BOLTBOLT
-
4025-82069M GROMMETGROMMET
-
4198981M RETAINERRETAINER
-
4210-96671M SCREWSCREW
-
4383962M RETAINERRETAINER
-
4441316M PULLEYPULLEY
