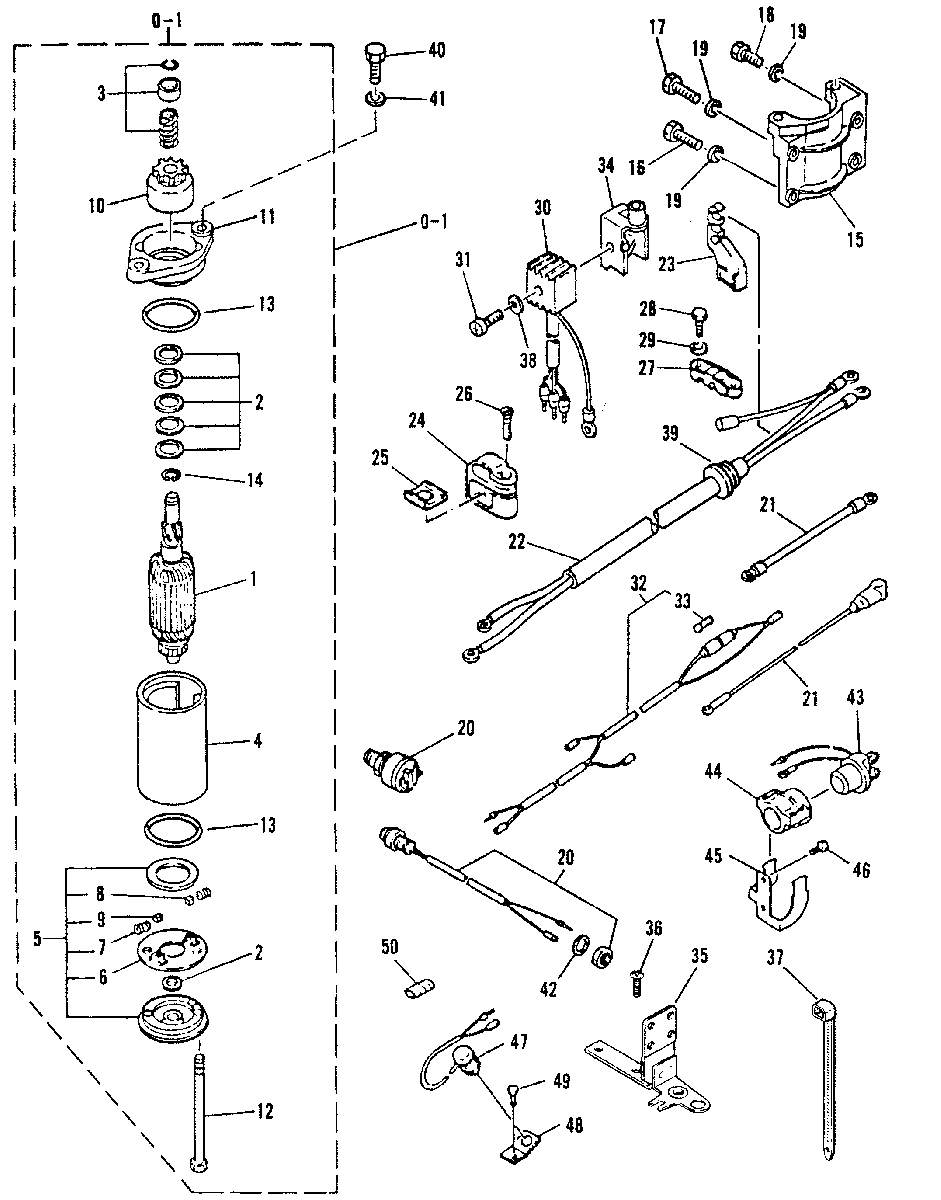

ELECTRIC START для Mariner - 15C ML-684-300101 AND UP
-
№АртикулНазвание
-
0-150-98982M STARTER MOTORSTARTER MOTOR
-
184330M ARMATUREARMATURE
-
212-84331M WASHER KITWASHER KIT
-
384332M PINION STOPPER SETPINION STOPPER SET
-
498983M FIELD (682-81800-11/ OR -12 ONLY)FIELD (682-81800-11/ OR -12 ONLY)
-
4NLA FIELD (ALL OTHERS)FIELD (ALL OTHERS)
-
584334M COVER ASSEMBLYCOVER ASSEMBLY
-
684335M BRUSH HOLDERBRUSH HOLDER
-
724-84336M SPRINGSPRING
-
884337M BRUSH (+)BRUSH (+)
-
984338M BRUSH (-)BRUSH (-)
-
1043-84339M PINION GEARPINION GEAR
-
1184340M COVERCOVER
-
1210-84341M THRU BOLTTHRU BOLT
-
1325-14258M O-RING - NEW DESIGNO-RING - NEW DESIGN
-
1453-14752M SNAP RING - NEW DESIGNSNAP RING - NEW DESIGN
-
1514215M BRACKET
(E-250236 EL-550596 & Up)BRACKET
(E-250236 EL-550596 & Up) -
1584095M BRACKET
(E-250235 EL-550595 & Below)BRACKET
(E-250235 EL-550595 & Below) -
1610-84058M BOLTBOLT
-
1710-83285M BOLTBOLT
-
1810-82405M BOLT
(E-250236 EL-550596 & Up)BOLT
(E-250236 EL-550596 & Up) -
1810-84058M BOLT
(E-250235 EL-550595 & Below)BOLT
(E-250235 EL-550595 & Below) -
1912-82214M WASHERWASHER
-
2087-18930M STARTER SWITCH
(M-062459 ML-336234 E-252704 EL-553589 & Up)STARTER SWITCH
(M-062459 ML-336234 E-252704 EL-553589 & Up) -
2184-18931M LEAD WIRE
(M-062459 ML-336234 E-252704 EL-553589 & Up)LEAD WIRE
(M-062459 ML-336234 E-252704 EL-553589 & Up) -
2087-84096M STARTER SWITCH
(M-062458 ML-336233 E-252703 EL-553588 & Below)STARTER SWITCH
(M-062458 ML-336233 E-252703 EL-553588 & Below) -
2184-98985M LEAD WIRE
(M-062458 ML-336233 E-252703 EL-553588 & Below)LEAD WIRE
(M-062458 ML-336233 E-252703 EL-553588 & Below) -
2284-18932M HARNESSHARNESS
-
2398987M RETAINERRETAINER
-
2499062M RETAINERRETAINER
-
2584708M PLATEPLATE
-
2610-84709M SCREWSCREW
-
2754-41876M CLAMPCLAMP
-
2810-826957M BOLTBOLT
-
2912-82214M WASHERWASHER
-
308M0091976 RECTIFIERRECTIFIER
-
3110-83108M SCREWSCREW
-
3218933M FUSE HOLDER (DOUBLE WIRE - 30")FUSE HOLDER (DOUBLE WIRE - 30")
-
3298988M FUSE HOLDER (SINGLE WIRE - 12")FUSE HOLDER (SINGLE WIRE - 12")
-
3388-81522M FUSE (12V-20A)FUSE (12V-20A)
-
34811998M BRACKET
(M-013276 ML-312686 E-250806 EL-551256 & Up)BRACKET
(M-013276 ML-312686 E-250806 EL-551256 & Up) -
3484091M BRACKET
(M-013275 ML-312685 E-250805 EL-551255 & Below)BRACKET
(M-013275 ML-312685 E-250805 EL-551255 & Below) -
3594798M BRACKETBRACKET
-
3610-14232M SCREWSCREW
-
3725-82060M STA-STRAPSTA-STRAP
-
3812-82211M WASHERWASHER
-
3925-84092M GROMMETGROMMET
-
4010-84342M BOLTBOLT
-
4112-82217M WASHERWASHER
-
4212-18934M WASHERWASHER
-
4389-8M0098898 STARTER RELAYSTARTER RELAY
-
448M0010250 BRACKETBRACKET
-
4518935M PLATEPLATE
-
4610-84211M BOLTBOLT
-
4787-97684M NEUTRAL SWITCHNEUTRAL SWITCH
-
4894790M BRACKETBRACKET
-
4910-91772M BOLTBOLT
-
5032-18936M HOSEHOSE
