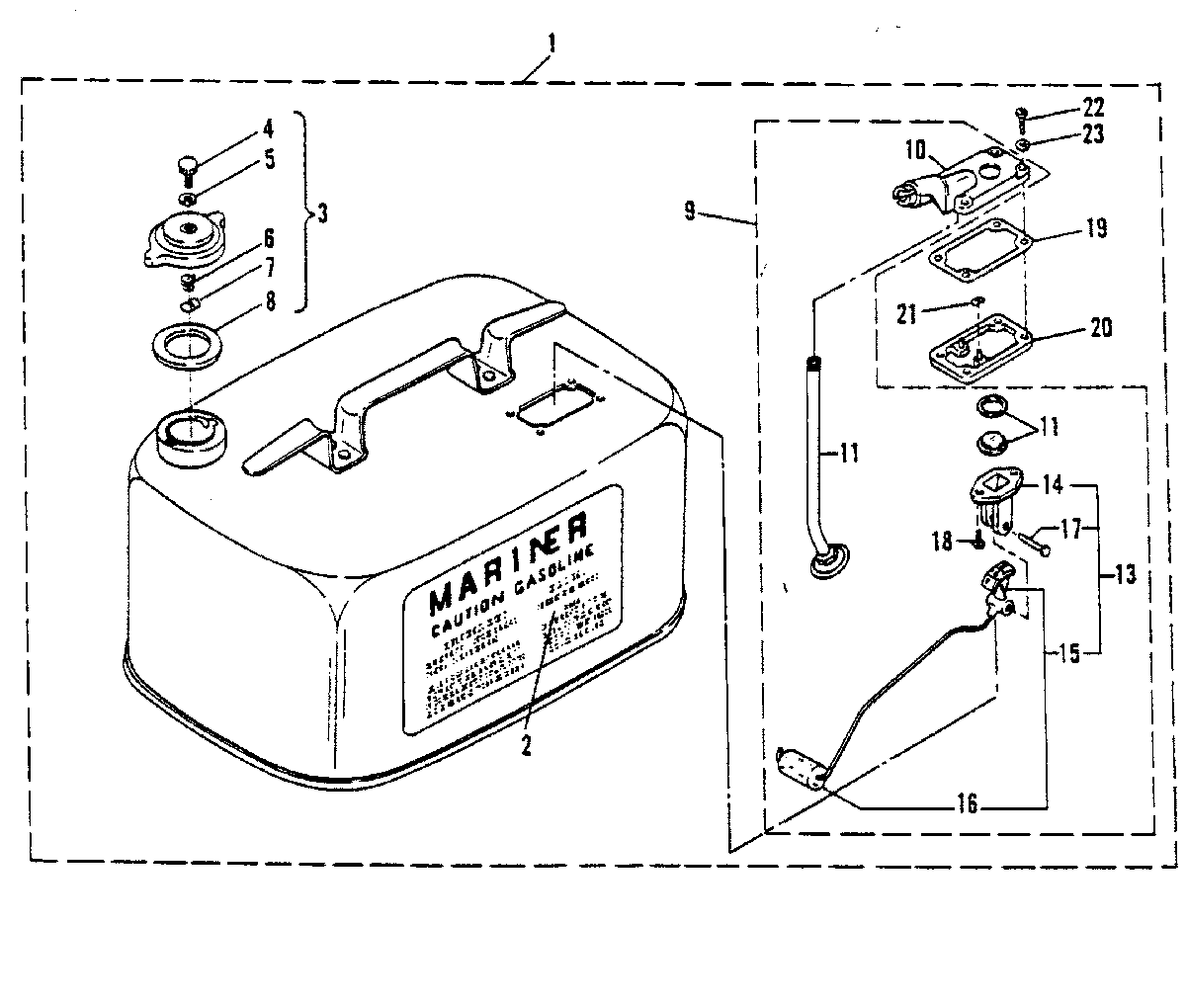

FUEL TANK (NOT ORIGINAL EQUIPMENT TANK) для Mariner - 15C ML-684-300101 AND UP
-
№АртикулНазвание
-
11259-812410A1 FUEL TANK ASSY., COMPLETE (6 GALLON)FUEL TANK ASSY., COMPLETE (6 GALLON)
-
237-13921 DECALDECAL
-
336-18962M FILLER CAP ASSEMBLYFILLER CAP ASSEMBLY
-
410-25575 SCREWSCREW
-
512-49221 WASHERWASHER
-
624-22227 SPRINGSPRING
-
711-28587 SPEED NUTSPEED NUT
-
827-41065 GASKETGASKET
-
964841A1 COVER ASSEMBLY, COMPLETECOVER ASSEMBLY, COMPLETE
-
1017792A1 COVER ASSEMBLYCOVER ASSEMBLY
-
1132-75239 TUBETUBE
-
1298542A1 LENS ASSEMBLYLENS ASSEMBLY
-
1328897A2 FUEL GAUGE ASSEMBLY, COMPLETEFUEL GAUGE ASSEMBLY, COMPLETE
-
1420430 RETAINERRETAINER
-
1528897A1 INDICATOR & FLOAT ASSEMBLYINDICATOR & FLOAT ASSEMBLY
-
1699274 FLOATFLOAT
-
1717-20426 RIVETRIVET
-
1810-62568 SCREWSCREW
-
1927-28862 GASKETGASKET
-
2028860 FRAME (FUEL TANK COVER)FRAME (FUEL TANK COVER)
-
2111-28903 FASTENERFASTENER
-
2210-20411 SCREWSCREW
-
2312-29070 WASHERWASHER
