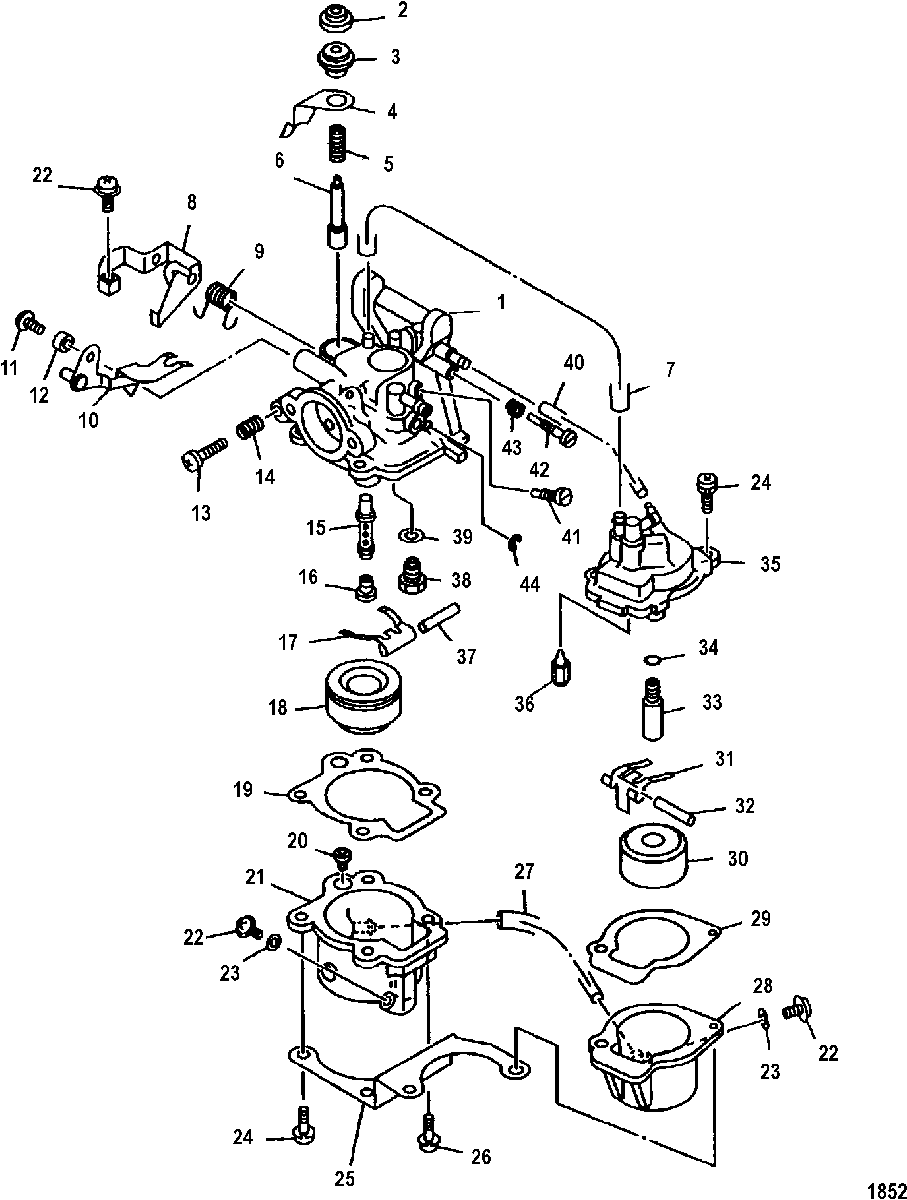

Carburetor для Mariner - 15K 65G-200197 & Up
-
№АртикулНазвание
-
11383-852806A02 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
280196M COVERCOVER
-
380197M ROD, StarterROD, Starter
-
480199M PLATEPLATE
-
524-80194M SPRINGSPRING
-
680195M PLUNGERPLUNGER
-
732-8527921 HOSEHOSE
-
8852807 LEVER, ThrottleLEVER, Throttle
-
924-80574M SPRINGSPRING
-
10811245M LEVERLEVER
-
1110-83112M SCREWSCREW
-
1283115M COLLARCOLLAR
-
1310-827147M SCREWSCREW
-
1424-80193M SPRINGSPRING
-
158112431 MAIN NOZZLEMAIN NOZZLE
-
168112441 JET, Main (#102)JET, Main (#102)
-
1780203M ARMARM
-
1880450M FLOATFLOAT
-
1927-80740M GASKETGASKET
-
20811246M JET, Starting (#50)JET, Starting (#50)
-
2194735M BODYBODY
-
2210-811248M SCREWSCREW
-
2327-13999M GASKETGASKET
-
2410-8527872 SCREWSCREW
-
25852809 PLATEPLATE
-
2610-81758M SCREW, (M4 x 12)SCREW, (M4 x 12)
-
2732-94746M HOSEHOSE
-
2894744M BODYBODY
-
2927-94691M GASKETGASKET
-
3094696M FLOATFLOAT
-
3194697M ARMARM
-
3217-811249M PIN, FloatPIN, Float
-
338112511 JET, Pilot (#68)JET, Pilot (#68)
-
3425-94695M O-RINGO-RING
-
35852808T COVERCOVER
-
3695430M VALVE SEATVALVE SEAT
-
3717-80451M PINPIN
-
3811930M SEAT, ValveSEAT, Valve
-
3927-80205M GASKETGASKET
-
4032-97591M HOSEHOSE
-
4191746M JET, Pilot (#46)JET, Pilot (#46)
-
4210-80573M SCREWSCREW
-
4324-8095791 SPRINGSPRING
-
4453-94722M RING, RetainingRING, Retaining
-
-811252T1 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-27-852783A1 GASKET SET, PowerheadGASKET SET, Powerhead
