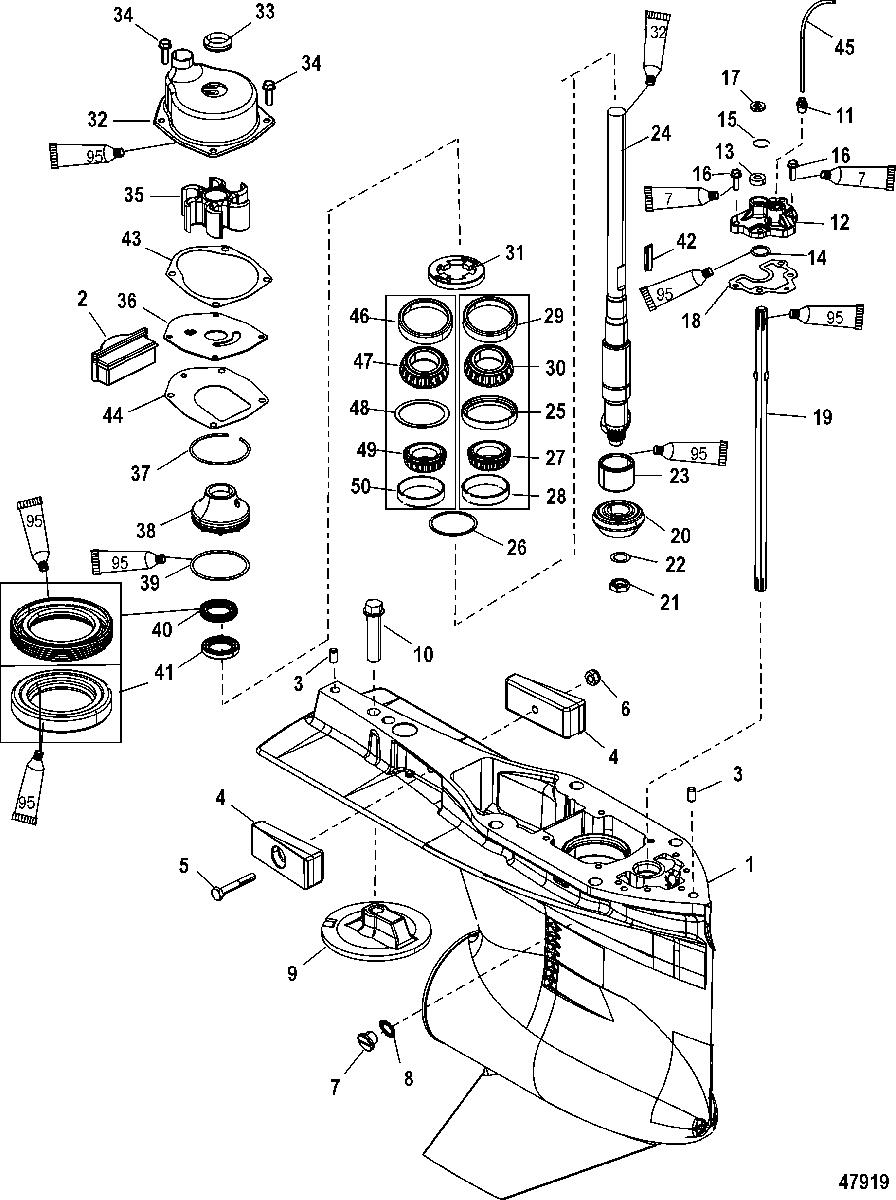

Gear Housing(Driveshaft)(Standard/Counter Rotation) для Mariner - 175 VERADO (4-STROKE)(4 CYL.) 0P514869 & Up
-
№АртикулНазвание
-
-1600-880686T23 GEAR HOUSING ASSEMBLY, Complete
Long-StandardGEAR HOUSING ASSEMBLY, Complete
Long-Standard -
-1600-880686T24 GEAR HOUSING ASSEMBLY, Complete
X-Long-StandardGEAR HOUSING ASSEMBLY, Complete
X-Long-Standard -
-1600-880686T28 GEAR HOUSING ASSEMBLY, Complete
Long-Counter RotationGEAR HOUSING ASSEMBLY, Complete
Long-Counter Rotation -
-1600-880686T25 GEAR HOUSING ASSEMBLY, Complete
X-Long-Counter RotationGEAR HOUSING ASSEMBLY, Complete
X-Long-Counter Rotation -
11600-8M0056631 GEAR HOUSING ASSEMBLY, Basic, Used With 5/16 Inch Shift Crank
SN# 1B853027 & BelowGEAR HOUSING ASSEMBLY, Basic, Used With 5/16 Inch Shift Crank
SN# 1B853027 & Below -
11600-8M0056631 GEAR HOUSING ASSEMBLY, Basic, Used With 1/4 Inch Shift Crank
SN# 1B853028 & UpGEAR HOUSING ASSEMBLY, Basic, Used With 1/4 Inch Shift Crank
SN# 1B853028 & Up -
2821526001 FILLER BLOCK
SN# 1B582979 & BelowFILLER BLOCK
SN# 1B582979 & Below -
28M0010459 FILLER BLOCK
SN# 1B583980 & UpFILLER BLOCK
SN# 1B583980 & Up -
317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
497-826134Q ANODEANODE
-
510-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
710-79953A04 PLUG ASSEMBLY, (.375-16 x .250)PLUG ASSEMBLY, (.375-16 x .250)
-
826-830749 SEALSEAL
-
997-76214T5 ANODE KIT
(Mercury)ANODE KIT
(Mercury) -
997-76214Q5 ANODE KIT
(Quicksilver)ANODE KIT
(Quicksilver) -
1010-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
1122-881866 FITTINGFITTING
-
128M0047129 COVER ASSEMBLY
Design-ICOVER ASSEMBLY
Design-I -
128M0047129 COVER ASSEMBLY
Design-IICOVER ASSEMBLY
Design-II -
1326-8164641 SEAL, Oil
Design-I and IISEAL, Oil
Design-I and II -
1425-896522 O-RING, (799 x .103)
Design-I and IIO-RING, (799 x .103)
Design-I and II -
1553-8M0046563 RETAINING RING
Design-IIRETAINING RING
Design-II -
1610-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1712-77674 WASHERWASHER
-
1827-880729 GASKETGASKET
-
19824145 SHIFT SHAFTSHIFT SHAFT
-
20NSS NOT SOLD SEPARATE, Pinion Gear
(Part of 43-880709A02)NOT SOLD SEPARATE, Pinion Gear
(Part of 43-880709A02) -
2111-35921 NUT, (.625-18)NUT, (.625-18)
-
2212-92721 WASHERWASHER
-
2331-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
2445-895835 DRIVESHAFT
(Long)DRIVESHAFT
(Long) -
2445-895836 DRIVESHAFT
(X-Long)DRIVESHAFT
(X-Long) -
2515-884327A02 SHIM/BEARING ASSEMBLY
SN# 1B792549 & BelowSHIM/BEARING ASSEMBLY
SN# 1B792549 & Below -
2615-8M0063268 SHIM ASSEMBLYSHIM ASSEMBLY
-
27NSS NOT SOLD SEPARATE, Roller Bearing Assembly
SN# 1B792549 & BelowNOT SOLD SEPARATE, Roller Bearing Assembly
SN# 1B792549 & Below -
28NSS NOT SOLD SEPARATE, Cup
SN# 1B792549 & BelowNOT SOLD SEPARATE, Cup
SN# 1B792549 & Below -
29NSS NOT SOLD SEPARATE, Roller Bearing Assembly
SN# 1B792549 & BelowNOT SOLD SEPARATE, Roller Bearing Assembly
SN# 1B792549 & Below -
30NSS NOT SOLD SEPARATE, Cup
SN# 1B792549 & BelowNOT SOLD SEPARATE, Cup
SN# 1B792549 & Below -
318245191 RETAINERRETAINER
-
32817275A09 HOUSING, Water Pump-CompleteHOUSING, Water Pump-Complete
-
3326-861415A1 SEAL KITSEAL KIT
-
3410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
3547-43026T2 IMPELLERIMPELLER
-
368172761 FACEPLATEFACEPLATE
-
3753-880719 RING, RetainingRING, Retaining
-
388M0007131 CARRIER ASSEMBLY, Oil SealCARRIER ASSEMBLY, Oil Seal
-
3925-896523 O-RING, (2.175 x .103)O-RING, (2.175 x .103)
-
40NSS NOT SOLD SEPARATE, Oil SealNOT SOLD SEPARATE, Oil Seal
-
41NSS NOT SOLD SEPARATE, Oil SealNOT SOLD SEPARATE, Oil Seal
-
4228-8M0032833 KEYKEY
-
4327-8172771 GASKETGASKET
-
4427-430331 GASKETGASKET
-
4532-85944975 TUBING, (72.00 Inches Bulk) (Cut to 7 Inches)
(Long)TUBING, (72.00 Inches Bulk) (Cut to 7 Inches)
(Long) -
4532-85944975 TUBING, (72.00 Inches Bulk) (Cut to 12 Inches)
(X-Long)TUBING, (72.00 Inches Bulk) (Cut to 12 Inches)
(X-Long) -
4631-36387A1 BEARING ASSEMBLY, Roller/Cup
SN# 1B792550 & UpBEARING ASSEMBLY, Roller/Cup
SN# 1B792550 & Up -
47NSS NOT SOLD SEPARATE, CUP
SN# 1B792550 & UpNOT SOLD SEPARATE, CUP
SN# 1B792550 & Up -
4815-8M0063267 SHIM SET
SN# 1B792550 & UpSHIM SET
SN# 1B792550 & Up -
4931-48939A2 BEARING, Tapered Roller
SN# 1B792550 & UpBEARING, Tapered Roller
SN# 1B792550 & Up -
50NSS NOT SOLD SEPARATE, CUP
SN# 1B792550 & UpNOT SOLD SEPARATE, CUP
SN# 1B792550 & Up -
-26-830749A01 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-47-8M0100526 REPAIR KIT, Water Pump ImpellerREPAIR KIT, Water Pump Impeller
-
-817275A08 REPAIR KIT, Water Pump-UpperREPAIR KIT, Water Pump-Upper
