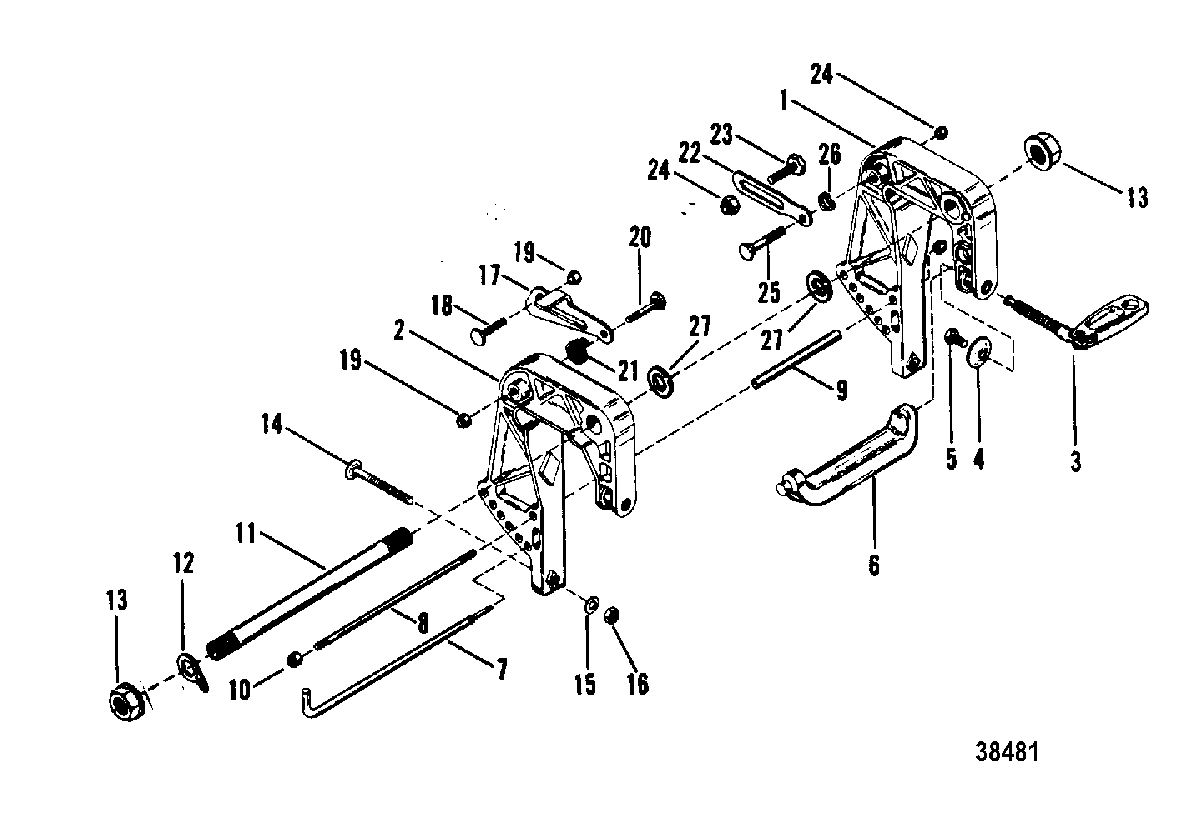

CLAMP BRACKET ASSEMBLY для Mariner - 18XD 6443973 THRU 0B238463
-
№АртикулНазвание
-
11497-8794A5 CLAMP BRACKET
(PORT)(MERCURY)CLAMP BRACKET
(PORT)(MERCURY) -
11497-8794A6 CLAMP BRACKET
(PORT)(MARINER)CLAMP BRACKET
(PORT)(MARINER) -
21497-8794A5 CLAMP BRACKET
(STARBOARD)(MERCURY)CLAMP BRACKET
(STARBOARD)(MERCURY) -
21497-8794A6 CLAMP BRACKET
(STARBOARD)(MARINER)CLAMP BRACKET
(STARBOARD)(MARINER) -
310-92767A1 THUMB SCREW ASSEMBLY, (14 mm)THUMB SCREW ASSEMBLY, (14 mm)
-
412-818884 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
510-768042 SCREW, WASHER ATTACHINGSCREW, WASHER ATTACHING
-
641042 HANDLE, CARRYINGHANDLE, CARRYING
-
717-99929A1 PIN ASSEMBLY, TiltPIN ASSEMBLY, Tilt
-
816-99928 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
923-41041 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
1011-400213 NUT, (M8) Stainless Steel, CLAMP BRACKET STUDNUT, (M8) Stainless Steel, CLAMP BRACKET STUD
-
118M0035075 TILT TUBETILT TUBE
-
1254-8M0085928 CLIP, SAFETYCLIP, SAFETY
-
1311-93164 NUT, (.875), TILT TUBENUT, (.875), TILT TUBE
-
1410-69064 BOLT, (.312-18 x 2.750), CLAMP BRACKET TO TRANSOMBOLT, (.312-18 x 2.750), CLAMP BRACKET TO TRANSOM
-
1512-67981 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1611-82670910 NUT, (.312-18), CLAMP BRACKET BOLTNUT, (.312-18), CLAMP BRACKET BOLT
-
1796965 LEVER, TILT STOP - STARBOARD SIDELEVER, TILT STOP - STARBOARD SIDE
-
1810-41523 SCREW, (.250-28 x 1.00), LEVER TO SWIVEL BRACKETSCREW, (.250-28 x 1.00), LEVER TO SWIVEL BRACKET
-
1911-36069 NUT, TILT STOP LEVER SCREWNUT, TILT STOP LEVER SCREW
-
2010-41524 SCREW, (.250-28 x 1.75), LEVER TO CLAMP BRACKETSCREW, (.250-28 x 1.75), LEVER TO CLAMP BRACKET
-
2124-44581 SPRING, TILT STOP LEVER SCREWSPRING, TILT STOP LEVER SCREW
-
2290901 STRAP, TILT STOP - PORT SIDESTRAP, TILT STOP - PORT SIDE
-
2310-41523 SCREW, (.250-28 x 1.00), STRAP TO SWIVEL BRACKETSCREW, (.250-28 x 1.00), STRAP TO SWIVEL BRACKET
-
2411-36069 NUT, TILT STOP STRAP SCREWNUT, TILT STOP STRAP SCREW
-
2510-41524 SCREW, (.250-28 x 1.75), STRAP TO CLAMP BRACKETSCREW, (.250-28 x 1.75), STRAP TO CLAMP BRACKET
-
2613-31030 WAVE WASHER, TILT STOP STRAP SCREWWAVE WASHER, TILT STOP STRAP SCREW
-
2712-71421 WASHER, Nylon, TILT TUBEWASHER, Nylon, TILT TUBE
