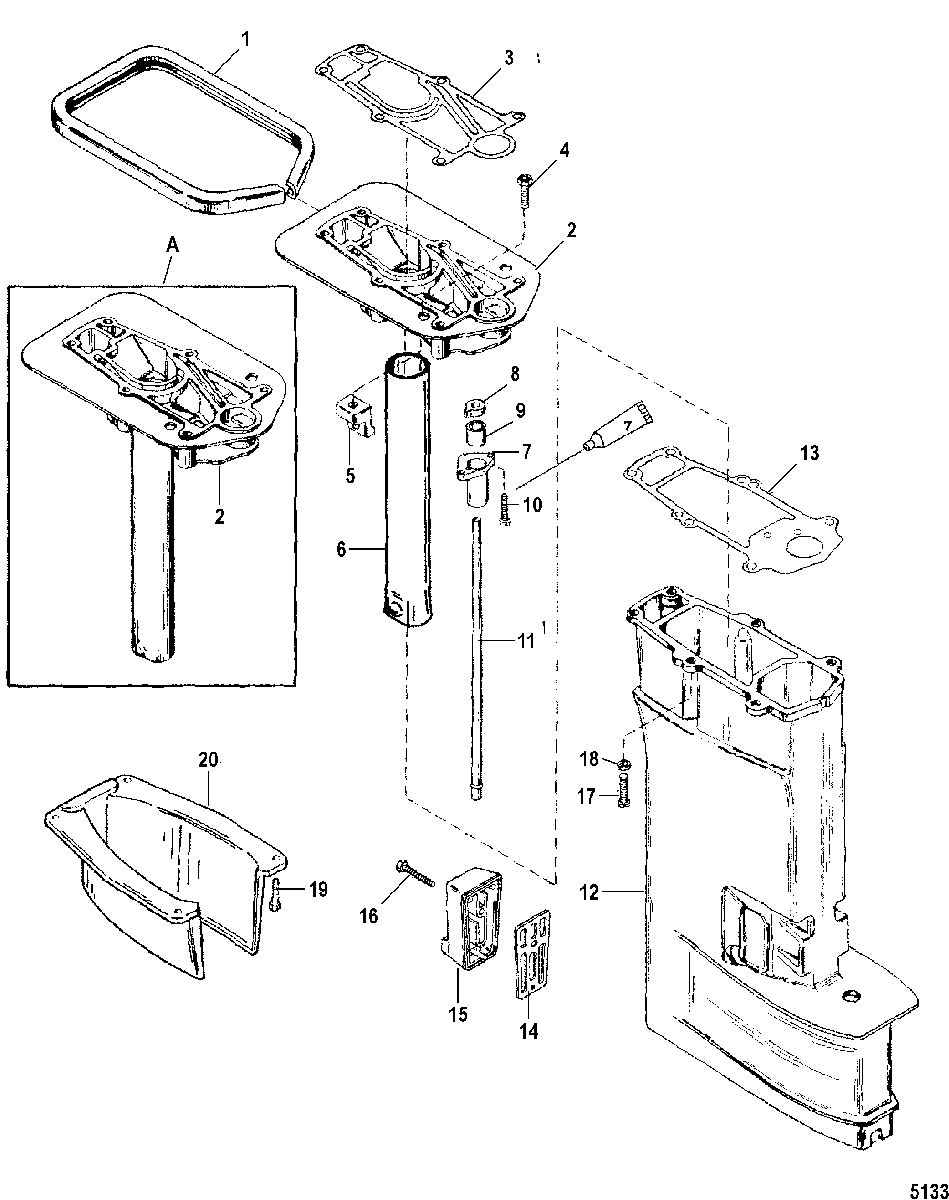

Driveshaft Housing Assembly для Mariner - 20 (2 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
1158664 SEAL, Adaptor PlateSEAL, Adaptor Plate
-
299702A7 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
327-41670006 GASKET, Adaptor PlateGASKET, Adaptor Plate
-
410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
541211 BRACKETBRACKET
-
6NSS NOT SOLD SEPARATE, Exhaust TubeNOT SOLD SEPARATE, Exhaust Tube
-
796248A1 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
823-889715 SPACERSPACER
-
926-25329 SEALSEAL
-
1010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
1132-85116 TUBE, Water
(Short Shaft)TUBE, Water
(Short Shaft) -
1132-86292 TUBE, Water
(Long Shaft)TUBE, Water
(Long Shaft) -
121588-9097T5 HOUSING ASSEMBLY, Driveshaft
(Black-Short Shaft)HOUSING ASSEMBLY, Driveshaft
(Black-Short Shaft) -
121588-9098T5 HOUSING ASSEMBLY, Driveshaft
(Black-Long Shaft)HOUSING ASSEMBLY, Driveshaft
(Black-Long Shaft) -
1327-433374 GASKET, Drive Shaft HousingGASKET, Drive Shaft Housing
-
1427-14621 GASKETGASKET
-
1514534 COVERCOVER
-
1610-14742 SCREW, (.250-20 x 1.25)SCREW, (.250-20 x 1.25)
-
1710-1993870 SCREW, (M8 x 70)SCREW, (M8 x 70)
-
1812-4002317 WASHERWASHER
-
1910-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
2017258T TRIM COVER
(Black)TRIM COVER
(Black) -
-27-41499A88 GASKET SETGASKET SET
-
-804946T02 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
