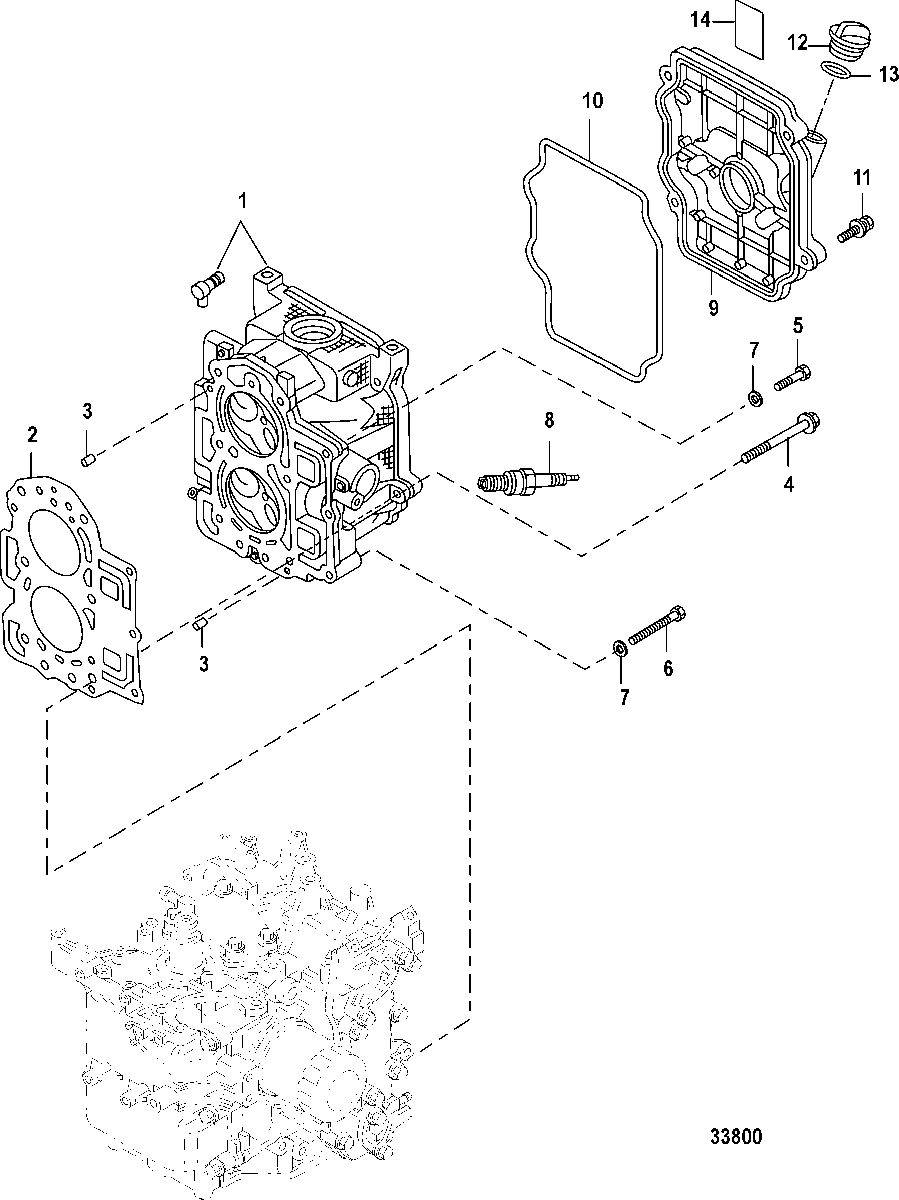

Cylinder Head для Mariner - 20 Carb(2CYL)(4-STROKE) 0R235168 & Up
-
№АртикулНазвание
-
1879147T57 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
227-812939T25 GASKET, Cylinder HeadGASKET, Cylinder Head
-
317-16119 PIN, DowelPIN, Dowel
-
410-855677002 BOLTBOLT
-
510-823042054 BOLTBOLT
-
610-898101009 SCREWSCREW
-
712-16826 WASHERWASHER
-
833-803507 SPARK PLUG, NGK#DCPR6ESPARK PLUG, NGK#DCPR6E
-
9879147T58 COVER, Cylinder Head, Cylinder HeadCOVER, Cylinder Head, Cylinder Head
-
1027-812939T26 GASKET, Rubber, Cylinder Head CoverGASKET, Rubber, Cylinder Head Cover
-
1110-16830A1 SCREW KITSCREW KIT
-
12859578A02 CAP ASSEMBLY, Oil FillerCAP ASSEMBLY, Oil Filler
-
1325-803513007 O-RINGO-RING
-
14NSS NOT SOLD SEPARATE, Decal-Engine OilNOT SOLD SEPARATE, Decal-Engine Oil
-
-8M0099416 SHORT BLOCKSHORT BLOCK
-
-27-803663A08 GASKET SET, PowerheadGASKET SET, Powerhead
