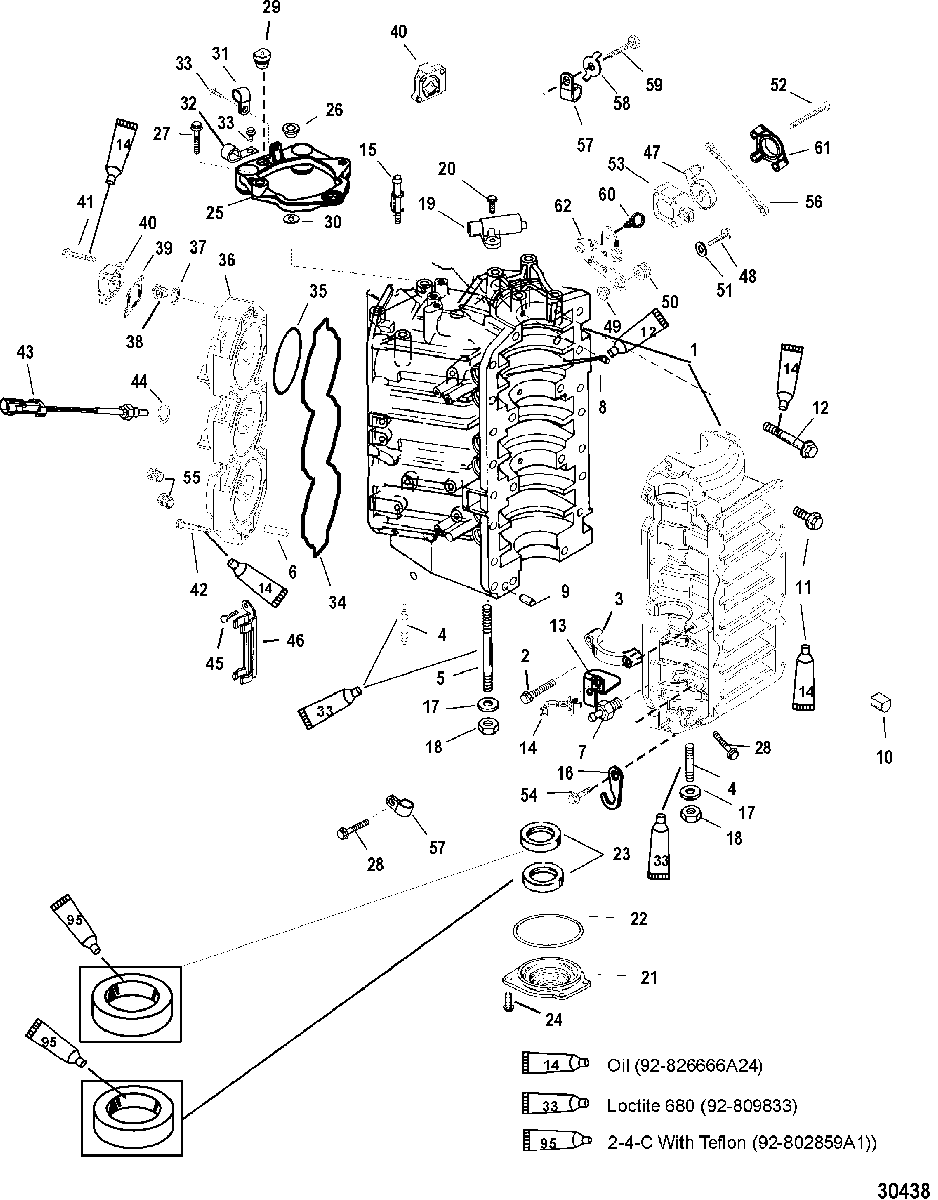

CYLINDER BLOCK AND END CAP для Mariner - 200 (DFI) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
1885-9811A66 CYLINDER BLOCK
(225)CYLINDER BLOCK
(225) -
1885-9811A65 CYLINDER BLOCK
(200)CYLINDER BLOCK
(200) -
210-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
38M0111325 COVERCOVER
-
416-903509 STUD, (M10 x 1.5 x 64)STUD, (M10 x 1.5 x 64)
-
516-8154431 STUD, (M10 x 1.5 x 155)STUD, (M10 x 1.5 x 155)
-
68248577 DEFLECTOR, WaterDEFLECTOR, Water
-
721-8781051 CHECK VALVECHECK VALVE
-
817-8M0036405 PINPIN
-
917-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1019-850309001 PLUGPLUG
-
1110-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1210-82446180 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
138589521 BRACKETBRACKET
-
1454-859376 CLIPCLIP
-
158215832 PIN, SpecialPIN, Special
-
168588641 RETAINERRETAINER
-
1712-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1811-4013610 NUT, (M10) Stainless SteelNUT, (M10) Stainless Steel
-
198M0082988 SENSORSENSOR
-
2010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
211171-9787A4 END CAP ASSEMBLYEND CAP ASSEMBLY
-
2225-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
2326-8308981 SEALSEAL
-
2410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
25857186T02 PLATE ASSEMBLYPLATE ASSEMBLY
-
2623-855729 MOUNTMOUNT
-
2710-82130145 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
2810-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
2925-19565002 GROMMETGROMMET
-
3012-855725 WASHERWASHER
-
3154-858424 CLAMPCLAMP
-
3254-858951 J CLIPJ CLIP
-
3310-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
34818574 SEAL, Cylinder HeadSEAL, Cylinder Head
-
35878453 SEALSEAL
-
36900-858485T07 CYLINDER HEAD
(STARBOARD)CYLINDER HEAD
(STARBOARD) -
36900-858483T07 CYLINDER HEAD
(PORT)CYLINDER HEAD
(PORT) -
3726-854639001 SEAL, ThermostatSEAL, Thermostat
-
38NLA No Longer Available, THERMOSTAT
(Refer to Service Bulletin 2002-08)No Longer Available, THERMOSTAT
(Refer to Service Bulletin 2002-08) -
3927-8503181 GASKET, Thermostat CoverGASKET, Thermostat Cover
-
40885599A1 THERMOSTAT COVER
(PORT)THERMOSTAT COVER
(PORT) -
40858857 THERMOSTAT COVER
(STARBOARD)THERMOSTAT COVER
(STARBOARD) -
4110-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4210-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
43889575 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
4425-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
4510-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
468266241 CLAMPCLAMP
-
478583561 LEVER, TPILEVER, TPI
-
4810-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4923-856954 BUSHINGBUSHING
-
5025-834985 GROMMETGROMMET
-
5112-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
5210-40011113 SCREW, (M5 x 45) Stainless SteelSCREW, (M5 x 45) Stainless Steel
-
538M6005165 INDICATOR, Throttle PositionINDICATOR, Throttle Position
-
5410-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
5522-32803 PLUG, Pipe (.375-18) BrassPLUG, Pipe (.375-18) Brass
-
5522-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
568M0084743 LINKLINK
-
5754-858902 CLAMPCLAMP
-
5812-858950 WASHERWASHER
-
5910-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
6054-858932 CLIPCLIP
-
618582261 COVERCOVER
-
628544862 BRACKETBRACKET
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-877869A01 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-854198R01 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
