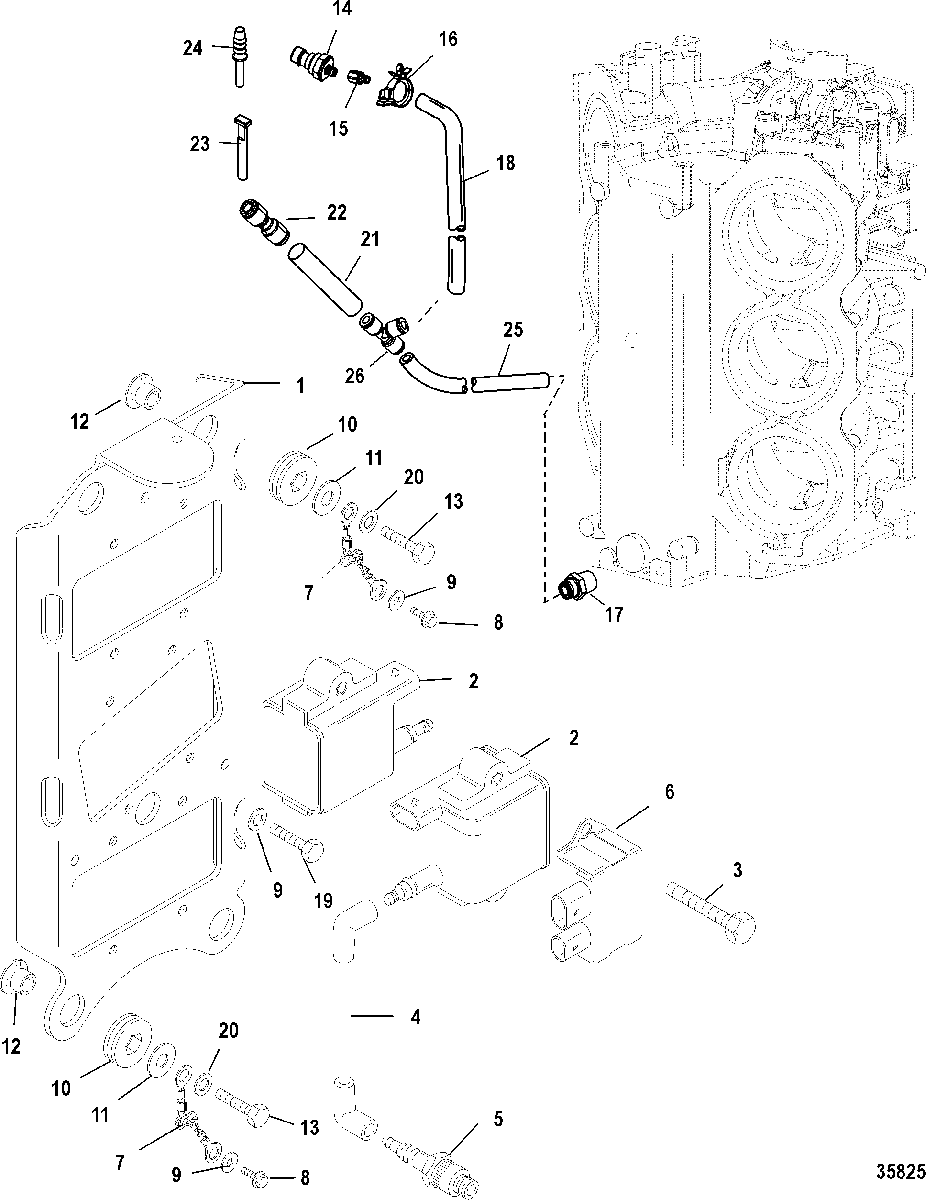

COIL PLATE для Mariner - 200 (DFI) 0T599000 THRU 0T800999
-
№АртикулНазвание
-
1850295T4 PLATEPLATE
-
2339-856991A1 COIL KITCOIL KIT
-
310-82129130 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
484-881908T CABLE SETCABLE SET
-
533-889597Q SPARK PLUGSPARK PLUG
-
6859595T DRIVER, Dual CoilDRIVER, Dual Coil
-
784-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
810-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1025-833155 GROMMETGROMMET
-
1112-4002318 WASHERWASHER
-
1223-8502341 BUSHINGBUSHING
-
1310-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
14881879A7 SENSOR KIT, (0-50 PSI)SENSOR KIT, (0-50 PSI)
-
1522-892403 FITTINGFITTING
-
1654-883066 CLIP, (.865)CLIP, (.865)
-
1722-881866 FITTINGFITTING
-
1832-85978571 TUBING, (44.00 Inches Bulk) (Cut to 18 Inches)TUBING, (44.00 Inches Bulk) (Cut to 18 Inches)
-
1910-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2012-36001 WASHERWASHER
-
2132-85978571 TUBING, (44.00 Inches Bulk) (GRAY)TUBING, (44.00 Inches Bulk) (GRAY)
-
2222-859747 COUPLERCOUPLER
-
2322-859732 PLUGPLUG
-
2422-859731 FITTING, AdapterFITTING, Adapter
-
2532-85978571 TUBING, (44.00 Inches Bulk) (Cut to 5 Inches)TUBING, (44.00 Inches Bulk) (Cut to 5 Inches)
-
2622-875207 TEE, FittingTEE, Fitting
