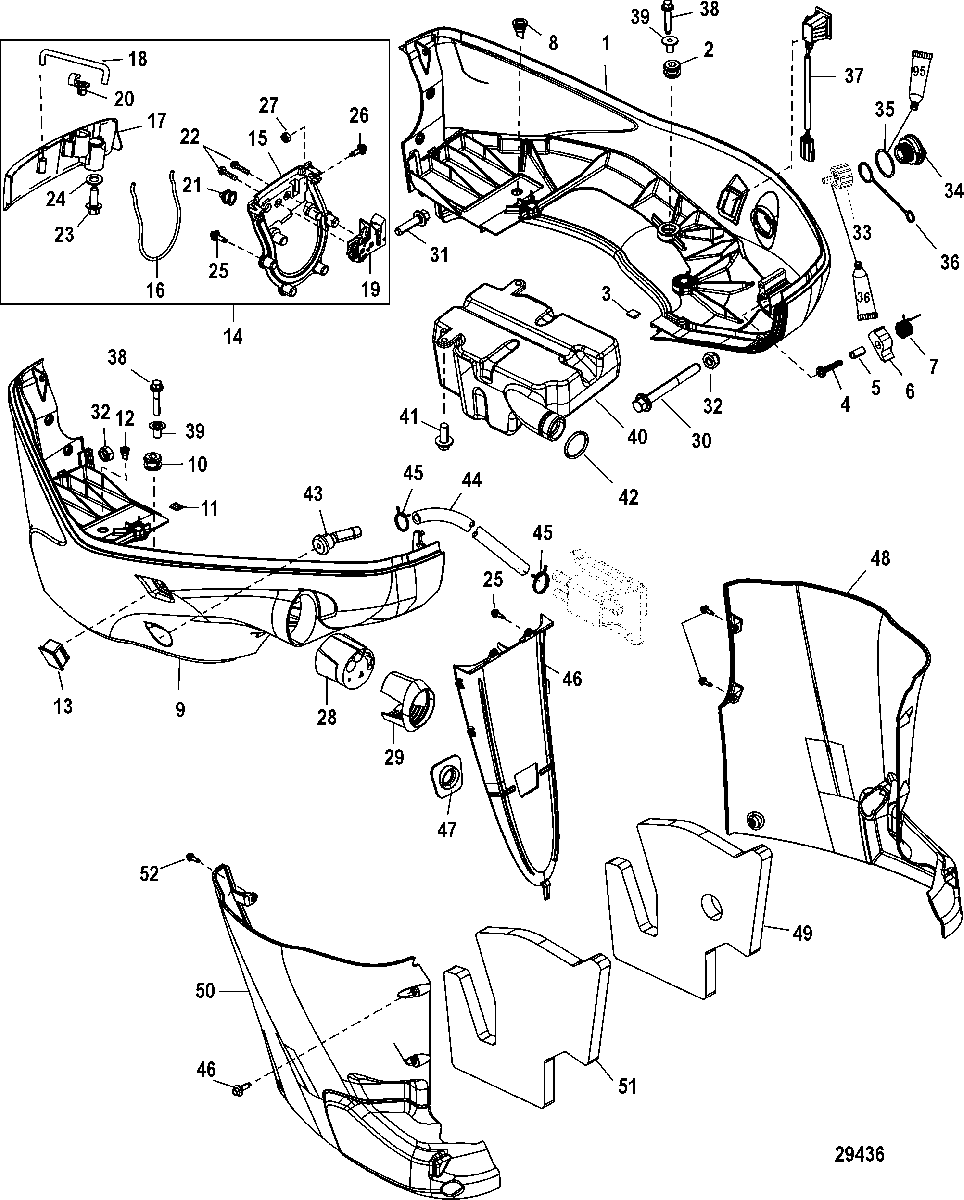

Rear Cowl для Mariner - 200 VERADO (4-STROKE)(4 CYL.) 0P514869 & Up

№

Артикул

Название
-

895846A08 PAN ASSEMBLY, Port and Starboard
SN# 1B701486 & Below

PAN ASSEMBLY, Port and Starboard
SN# 1B701486 & Below

165 830 ₽
-

895846T07 PAN ASSEMBLY, Port and Starboard
SN# 1B701487 & Up

PAN ASSEMBLY, Port and Starboard
SN# 1B701487 & Up

157 530 ₽
1

895846A08 PAN ASSEMBLY, Port
SN# 1B701486 & Below

PAN ASSEMBLY, Port
SN# 1B701486 & Below

165 830 ₽
1

NSS NOT SOLD SEPARATE, Pan Assembly-Port
SN# 1B701487 & Up

NOT SOLD SEPARATE, Pan Assembly-Port
SN# 1B701487 & Up

0 ₽
2

25-896671 GROMMET

GROMMET

90 ₽
3

896865 SEAL, Front

SEAL, Front

530 ₽
4

10-888950020 SCREW, (M4 x 20 mm)
SN# 1B701486 & Below

SCREW, (M4 x 20 mm)
SN# 1B701486 & Below

500 ₽
5

23-898408 SPACER
SN# 1B701486 & Below

SPACER
SN# 1B701486 & Below

2 260 ₽
6

898354 PAWL
SN# 1B701486 & Below

PAWL
SN# 1B701486 & Below

4 540 ₽
7

24-898353 SPRING
SN# 1B701486 & Below

SPRING
SN# 1B701486 & Below

1 350 ₽
8

888819002 DRAIN, Cowl

DRAIN, Cowl

110 ₽
9

895846A08 PAN ASSEMBLY, Starboard
SN# 1B701486 & Below

PAN ASSEMBLY, Starboard
SN# 1B701486 & Below

165 830 ₽
9

NSS NOT SOLD SEPARATE, Pan Assembly-Starboard
SN# 1B701487 & Up

NOT SOLD SEPARATE, Pan Assembly-Starboard
SN# 1B701487 & Up

0 ₽
10

25-896671 GROMMET

GROMMET

90 ₽
11

896974 SEAL, Back

SEAL, Back

290 ₽
12

888819002 DRAIN, Cowl

DRAIN, Cowl

110 ₽
13

19-897203 PLUG

PLUG

610 ₽
14

879148T72 PANEL AND LATCH ASSEMBLY

PANEL AND LATCH ASSEMBLY

30 400 ₽
15

8M0035175 PANEL, Access

PANEL, Access

8 110 ₽
16

8M0026713 SEAL

SEAL

0 ₽
17

8M0034940 HANDLE

HANDLE

4 290 ₽
18

8M0020854 LINK

LINK

970 ₽
19

8M0041031 LATCH ASSEMBLY, Rear

LATCH ASSEMBLY, Rear

7 550 ₽
20

8M0006054 RETAINER

RETAINER

100 ₽
21

8M0006060 SEAL

SEAL

190 ₽
22

10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel

SCREW, (M6 x 25 MM) Stainless Steel

190 ₽
23

10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel

SCREW, (M6 x 16 MM) Stainless Steel

200 ₽
24

12-69056 WASHER, (.255 x .620 x .030) Stainless Steel

WASHER, (.255 x .620 x .030) Stainless Steel

120 ₽
25

10-892073002 SHOULDER SCREW, (M6)

SHOULDER SCREW, (M6)

210 ₽
26

8M0005773 SCREW, (M6)

SCREW, (M6)

170 ₽
27

11-401386 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

330 ₽
28

25-897169 GROMMET

GROMMET

680 ₽
29

8M0043519 ADAPTOR

ADAPTOR

800 ₽
30

10-897657055 SCREW, (M6 x 55)

SCREW, (M6 x 55)

1 280 ₽
31

10-897657025 SCREW, (M6 x 25 MM)

SCREW, (M6 x 25 MM)

490 ₽
32

11-401386 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

330 ₽
33

22-885361A01 FITTING ASSEMBLY, Flush

FITTING ASSEMBLY, Flush

520 ₽
34

22-888958001 PLUG

PLUG

950 ₽
35

25-888957 O-RING

O-RING

110 ₽
36

889823001 TETHER

TETHER

130 ₽
37

87-8M0042300 SWITCH, Trim

SWITCH, Trim

10 650 ₽
38

10-897964 SCREW, (M6)

SCREW, (M6)

480 ₽
39

23-8M8023048 BUSHING

BUSHING

1 590 ₽
40

896925A01 PLENUM KIT, Exhaust

PLENUM KIT, Exhaust

6 970 ₽
41

10-892073002 SHOULDER SCREW, (M6)

SHOULDER SCREW, (M6)

210 ₽
42

25-889828 O-RING, (.924 x .103)

O-RING, (.924 x .103)

130 ₽
43

22-895797001 FITTING

FITTING

340 ₽
44

32-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 21 Inches

HOSE, (57.00 Inches Bulk), Cut to 21 Inches

5 260 ₽
45

54-895851 CLAMP, (8.00 Inches)

CLAMP, (8.00 Inches)

150 ₽
46

896618A02 COVER ASSEMBLY, Rear

COVER ASSEMBLY, Rear

6 200 ₽
47

896924 BOOT, Idle Exhaust

BOOT, Idle Exhaust

1 860 ₽
-

897593T02 CHAP ASSEMBLY, Starboard and Port

CHAP ASSEMBLY, Starboard and Port

48 510 ₽
48

897593T02 CHAP ASSEMBLY, Port

CHAP ASSEMBLY, Port

48 510 ₽
49

897204 SOUND BLANKET, Starboard

SOUND BLANKET, Starboard

6 920 ₽
50

897593T02 CHAP ASSEMBLY, Starboard

CHAP ASSEMBLY, Starboard

48 510 ₽
51

897205 SOUND BLANKET, Port

SOUND BLANKET, Port

6 820 ₽
52

10-892073002 SHOULDER SCREW, (M6)

SHOULDER SCREW, (M6)

210 ₽
