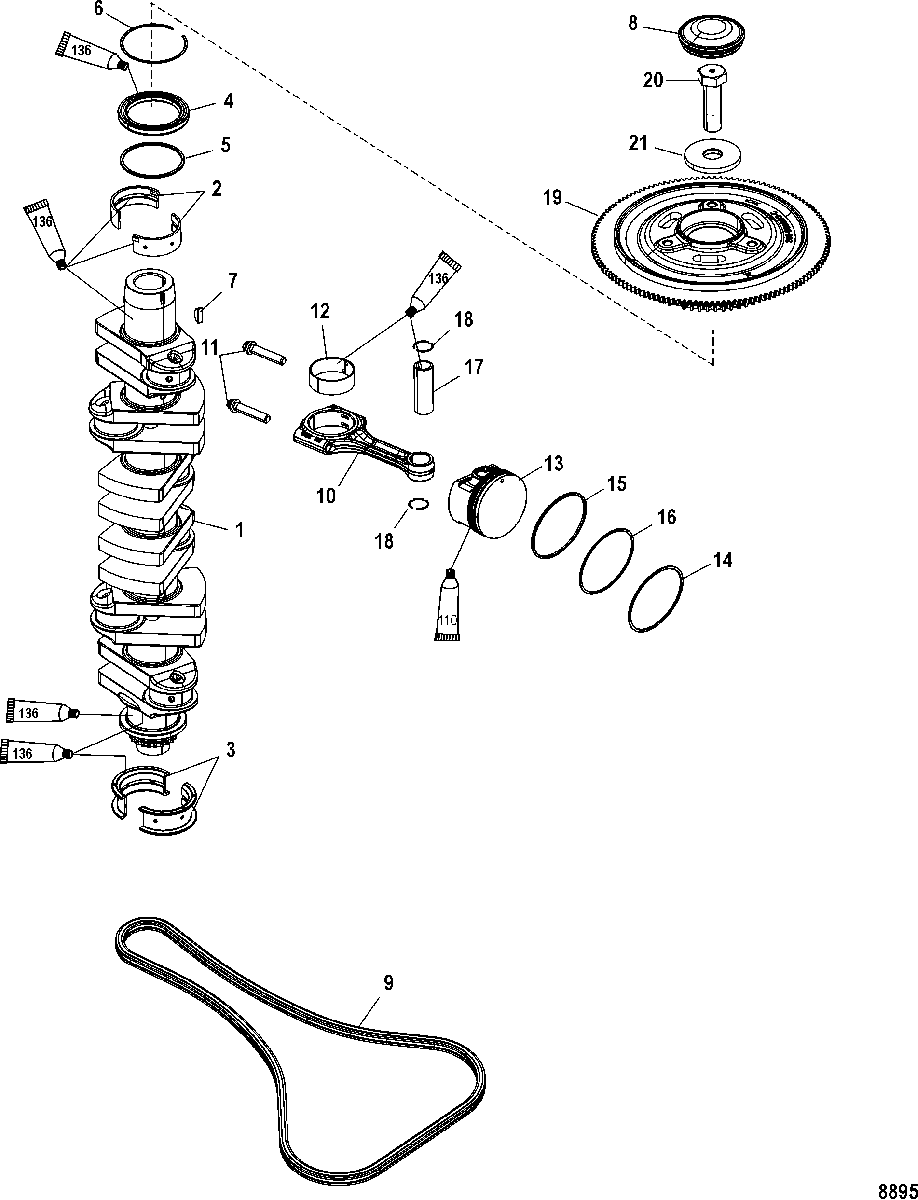

Crankshaft, Pistons and Connecting Rods для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0P464488 THRU 0P520552
-
№АртикулНазвание
-
1400-891644A04 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
223-897498T01 BEARING, Main - Green, Crankshaft-Upper
(Green)BEARING, Main - Green, Crankshaft-Upper
(Green) -
223-897498T02 BEARING, Main - Navy Blue, Crankshaft-Upper
(Navy Blue)BEARING, Main - Navy Blue, Crankshaft-Upper
(Navy Blue) -
223-897498T03 BEARING, Main - White, Crankshaft-Upper
(White)BEARING, Main - White, Crankshaft-Upper
(White) -
223-897498T04 BEARING, Main - Orange, Crankshaft-Upper
(Orange)BEARING, Main - Orange, Crankshaft-Upper
(Orange) -
323-8M0117003 BEARING, Thrust - Green, Crankshaft-Lower
(Green)BEARING, Thrust - Green, Crankshaft-Lower
(Green) -
323-8M0117001 BEARING, Thrust - Navy Blue, Crankshaft-Lower
(Navy Blue)BEARING, Thrust - Navy Blue, Crankshaft-Lower
(Navy Blue) -
323-8M0117002 BEARING, Thrust - White, Crankshaft-Lower
(White)BEARING, Thrust - White, Crankshaft-Lower
(White) -
323-8M0117004 BEARING, Thrust - Orange, Crankshaft-Lower
(Orange)BEARING, Thrust - Orange, Crankshaft-Lower
(Orange) -
426-8M0032912 SEAL, Top Main BearingSEAL, Top Main Bearing
-
523-896883 SPACERSPACER
-
653-896882 RING, RetainingRING, Retaining
-
728-91800 KEY, WoodruffKEY, Woodruff
-
819-885348 CAP, Flywheel BoltCAP, Flywheel Bolt
-
98M0103398 CHAIN, Roller Cam DriveCHAIN, Roller Cam Drive
-
10662-8M0103285 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1110-884441 BOLTBOLT
-
1223-892005A01 BEARING, Connecting Rod - Blue
(Blue)BEARING, Connecting Rod - Blue
(Blue) -
1223-892005A02 BEARING, Connecting Rod - White
(White)BEARING, Connecting Rod - White
(White) -
1223-892005A03 BEARING, Connecting Rod - Orange
(Orange)BEARING, Connecting Rod - Orange
(Orange) -
13700-897737A04 PISTON ASSEMBLYPISTON ASSEMBLY
-
1439-881180A02 RING SET, PistonRING SET, Piston
-
15NSS NOT SOLD SEPARATE, Piston Ring-OilNOT SOLD SEPARATE, Piston Ring-Oil
-
16NSS NOT SOLD SEPARATE, Piston Ring-2ndNOT SOLD SEPARATE, Piston Ring-2nd
-
17NSS NOT SOLD SEPARATE, Piston PinNOT SOLD SEPARATE, Piston Pin
-
1840-881184 CIRCLIPCIRCLIP
-
19200-888983T03 FLYWHEELFLYWHEEL
-
2010-880515 BOLT, (M20 x 68 MM)BOLT, (M20 x 68 MM)
-
2112-8M0090010 WASHERWASHER
-
-27-880552A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-895247R06 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
