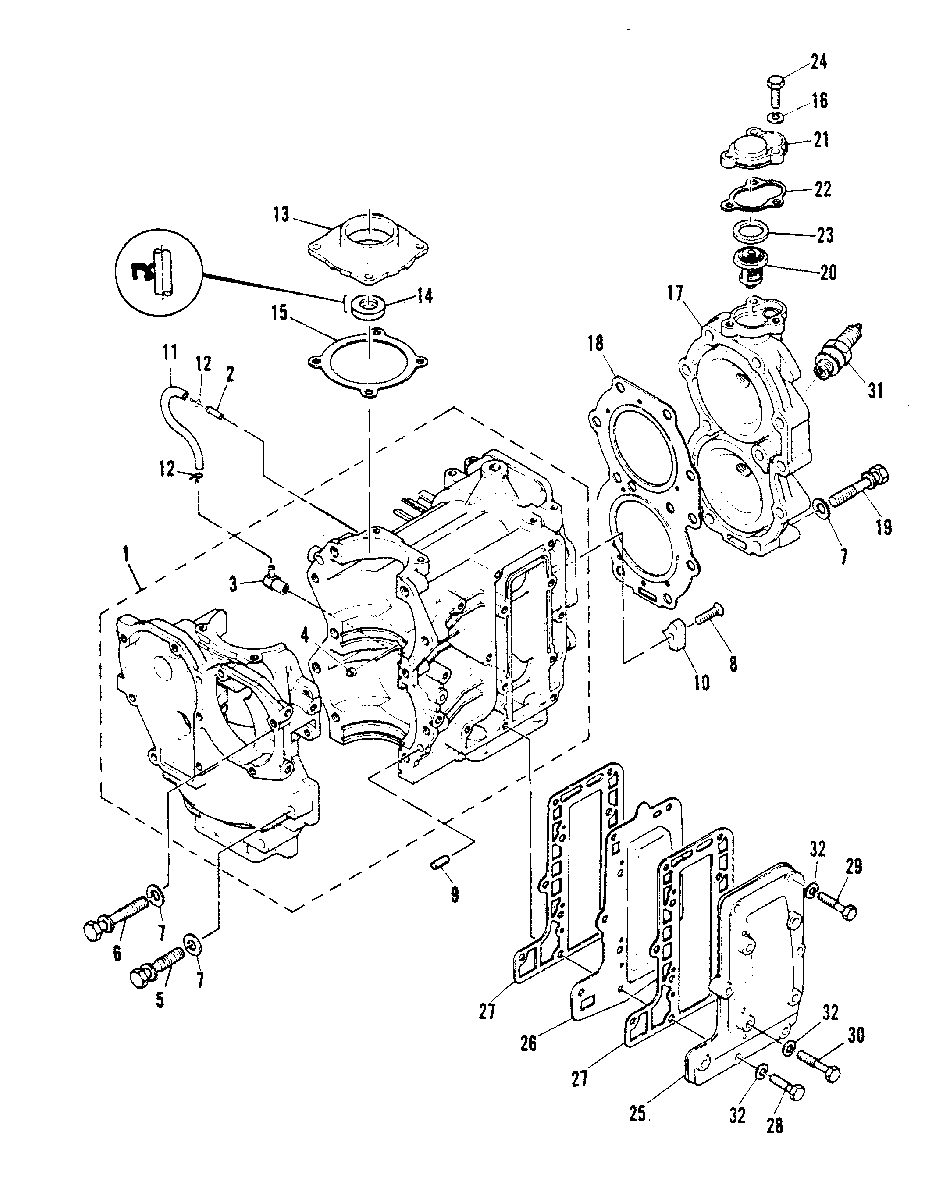

CRANKCASE AND CYLINDER HEAD для Mariner - 20C (THRU PROP. EXHAUST) 6A9-000101 THRU 010111
-
№АртикулНазвание
-
1870-9359M CRANKCASE ASS'YCRANKCASE ASS'Y
-
222-80122M FITTING, CRANKCASE DRAINFITTING, CRANKCASE DRAIN
-
321-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
421-80107M (#21-80107M)(#21-80107M)
-
510-8M0101617 BOLT W/WASHER
SERIAL 00005811-09999999BOLT W/WASHER
SERIAL 00005811-09999999 -
510-82408M BOLT
SERIAL 00000000-00005810BOLT
SERIAL 00000000-00005810 -
610-41885M BOLT W/WASHER
SERIAL 00005811-09999999BOLT W/WASHER
SERIAL 00005811-09999999 -
610-82406M BOLT
SERIAL 00000000-00005810BOLT
SERIAL 00000000-00005810 -
712-80564M WASHER
SERIAL 00000000-00005810WASHER
SERIAL 00000000-00005810 -
810-95209M SCREW
SERIAL 00008216-09999999SCREW
SERIAL 00008216-09999999 -
810-95209M SCREW
SERIAL 00000000-00008215SCREW
SERIAL 00000000-00008215 -
917-82364M PIN, DOWELPIN, DOWEL
-
1097-84732M ANODEANODE
-
1132-811045M HOSEHOSE
-
1254-82046M CLAMP, HOSECLAMP, HOSE
-
1381564M HOUSING, OIL SEAL (UPPER)HOUSING, OIL SEAL (UPPER)
-
1426-82245M OIL SEAL, CRANKSHAFT (UPPER)OIL SEAL, CRANKSHAFT (UPPER)
-
1527-81565M GASKET, OIL SEAL HOUSINGGASKET, OIL SEAL HOUSING
-
1613-82212M WASHER, LOCKWASHER, LOCK
-
17968-8374M HEAD, CYLINDERHEAD, CYLINDER
-
1827-81555 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
1910-41885M BOLT W/WASHER
SERIAL 00005811-09999999BOLT W/WASHER
SERIAL 00005811-09999999 -
1910-82407M BOLT
SERIAL 00000000-00005810BOLT
SERIAL 00000000-00005810 -
2099080M THERMOSTATETHERMOSTATE
-
2181030M COVER, THERMOSTATCOVER, THERMOSTAT
-
2227-81031 GASKET, THERMOSAT COVERGASKET, THERMOSAT COVER
-
2312-81835M WASHERWASHER
-
2410-84058M BOLTBOLT
-
2581569M COVER,EXHAUST-OUTERCOVER,EXHAUST-OUTER
-
2681568M COVER, EXHAUST-INNERCOVER, EXHAUST-INNER
-
2727-81570 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
2810-82405M BOLTBOLT
-
2910-83285M BOLT
SERIAL 00002351-09999999BOLT
SERIAL 00002351-09999999 -
2910-83285M BOLT
SERIAL 00000000-00002350BOLT
SERIAL 00000000-00002350 -
3010-83285M BOLT
SERIAL 00008216-09999999BOLT
SERIAL 00008216-09999999 -
3010-83285M BOLT
SERIAL 00005811-00008215BOLT
SERIAL 00005811-00008215 -
3010-83285M BOLT
SERIAL 00000000-00002350BOLT
SERIAL 00000000-00002350 -
3133-8M0114739 SPARK PLUG, B-7HS(NGK)SPARK PLUG, B-7HS(NGK)
-
3212-82214M WASHER, LOCKWASHER, LOCK
-
3214233M POWERHEAD ASS'Y, COMPLETE (SEE NOTE)
REPLACEMENT PARTSPOWERHEAD ASS'Y, COMPLETE (SEE NOTE)
REPLACEMENT PARTS -
3227-92575M GASKET SET. POWERHEAD
REPLACEMENT PARTSGASKET SET. POWERHEAD
REPLACEMENT PARTS
